See the nest details QuadraNT TM , Nordson DAGE’ s latest generation X-ray source ensur es images are bright, clear and stable, allowing features down to 100nm to be r esolved. Simplicity as Standar d Gensys TM propriet…
See the nest details
QuadraNT
TM
, Nordson DAGE’s latest generation X-ray
source ensures images are bright, clear and stable,
allowing features down to 100nm to be resolved.
Simplicity as Standard
Gensys
TM
proprietary control and measurement
software integrates advanced image acquisition and
processing functions into an intuitive user interface
so both routine measurements and advanced, high
resolution investigations can be performed with ease.
Maintenance Free
The QuadraNT X-ray source uses proprietary lament
free technology, so regular preventative maintenance
visits are not required, reducing your downtime and
running costs.

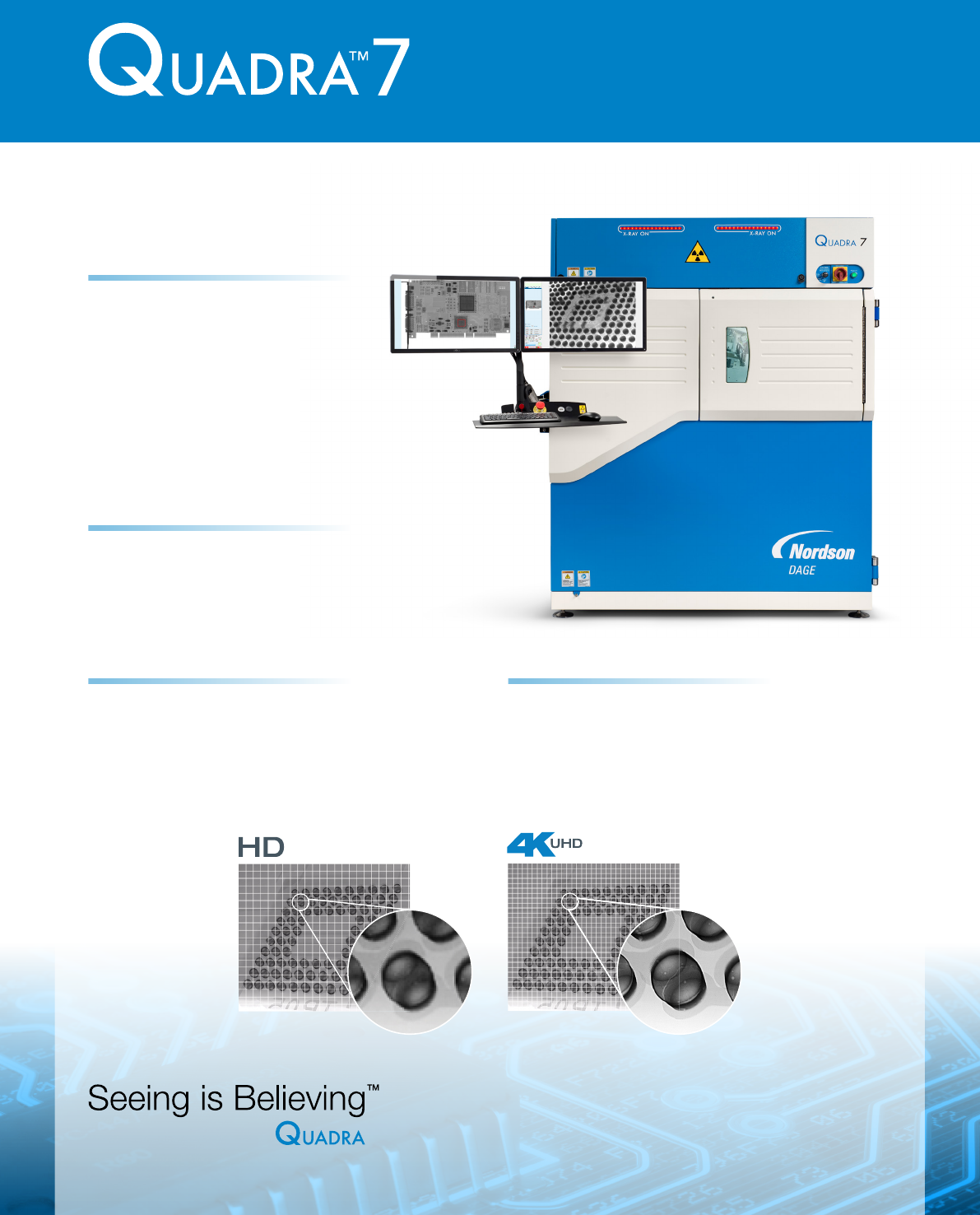

The complete X-ray
inspection solution
Quadra
TM
7 represents the cutting edge
of X-ray inspection performance.
6.7 MP ultra high quality images are
displayed at full one-to-one resolution over
two 4K UHD monitors, ensuring you see
the clearest features today, and for all your
products in the future.
X-ray Inspection System
4K Ultra HD 3840 x 2160
185 pixels per inch
Full HD 1920 x 1080
94 pixels per inch
4K Ultra HD 3840 x 2160
185 pixels per inch
Full HD 1920 x 1080
94 pixels per inch
Full HD 1920 x 1080
94 pixels per inch
4K Ultra HD 3840 x 2160
185 pixels per inch
X-ray Inspection System
DS-Q7-100419-V4
www.nordsondage.com
Options
X-Plane
®
View sample slices without additional CT hardware
Visualization for X-Plane
Create 3D models from X-Plane data
μCT
Create high resolution 3D models with the μCT sample stage
Heated Stage Simulate reflow oven conditions, view solder processes in real time
Template Based Analysis Use existing design data to create automatic inspection routines
Joysticks For joystick navigation and zoom
Barcode Reader Track samples easily
Filtering Tray Reduce sample X-ray dose
Thin Sample Tray (included) Acquire clearer images of thin samples
Specications at a Glance

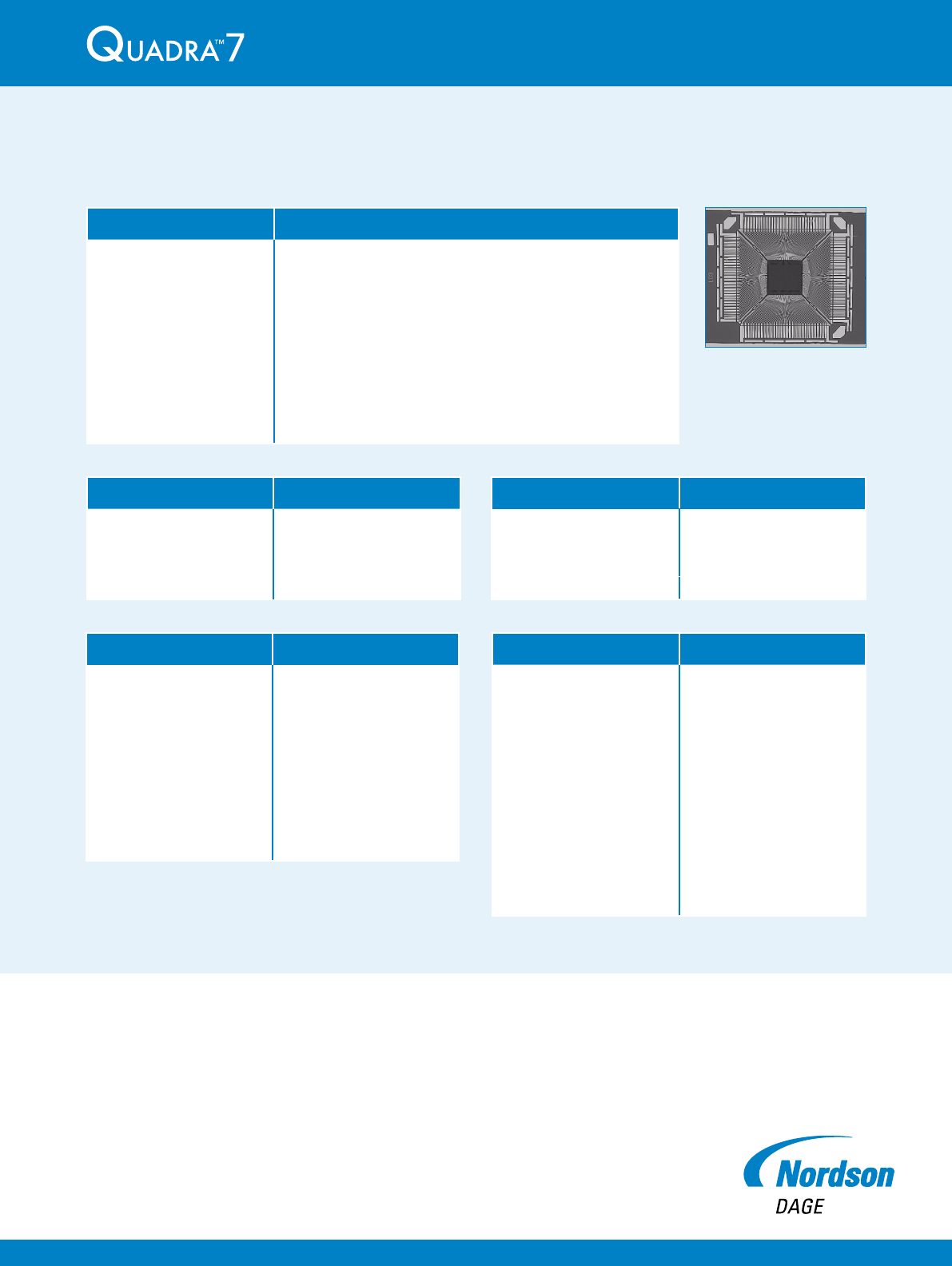

Lead frame: High
dynamic range
makes it easy to
identify wire bonds,
voids and cracks
QuadraNT
TM
X-ray Tube
Type Filament free transmissive
Feature Recognition 0.1μm (0.3μm above 10W)
Max. Power 20W
Voltage 30-160kV
Aspire FP
TM
Detector
Resolution
6.7 MP
Frame Rate
30 fps
Pixel Pitch
50
μm
Digital Imaging Processing
16-bit
Inspection
Oblique Angle View
2 × 70° - No sample rotation
required
Anti Vibration
AXiS - Active X-ray Image
Stabilization
Display Resolution 185 PPI
Inspection Area 510 x 445 mm (20 x 17.5”)
Geometric Magnication 2,500x
Total Magnication 68,000x
Display
Twin 24” 4K UHD 3840 x 2160
on Fully Flexible Arm Mount
System
Footprint 1570 W x 1500 D x 1900 H mm
System Weight 1950 kg (4300 lbs)
Power Supply
Single phase 200-230 VAC,
50/60 Hz, 16A
Typical Power Consumption 1KW
Air Supply 5-8 bar clean, dry for anti-vibration
Operation Temperature 10-30°C
Humidity <85% (non-condensing)
Operation Mouse
Operating System Windows 10 64-bit
X-ray Safety
<1 μSv/hr Meets all international
standards
