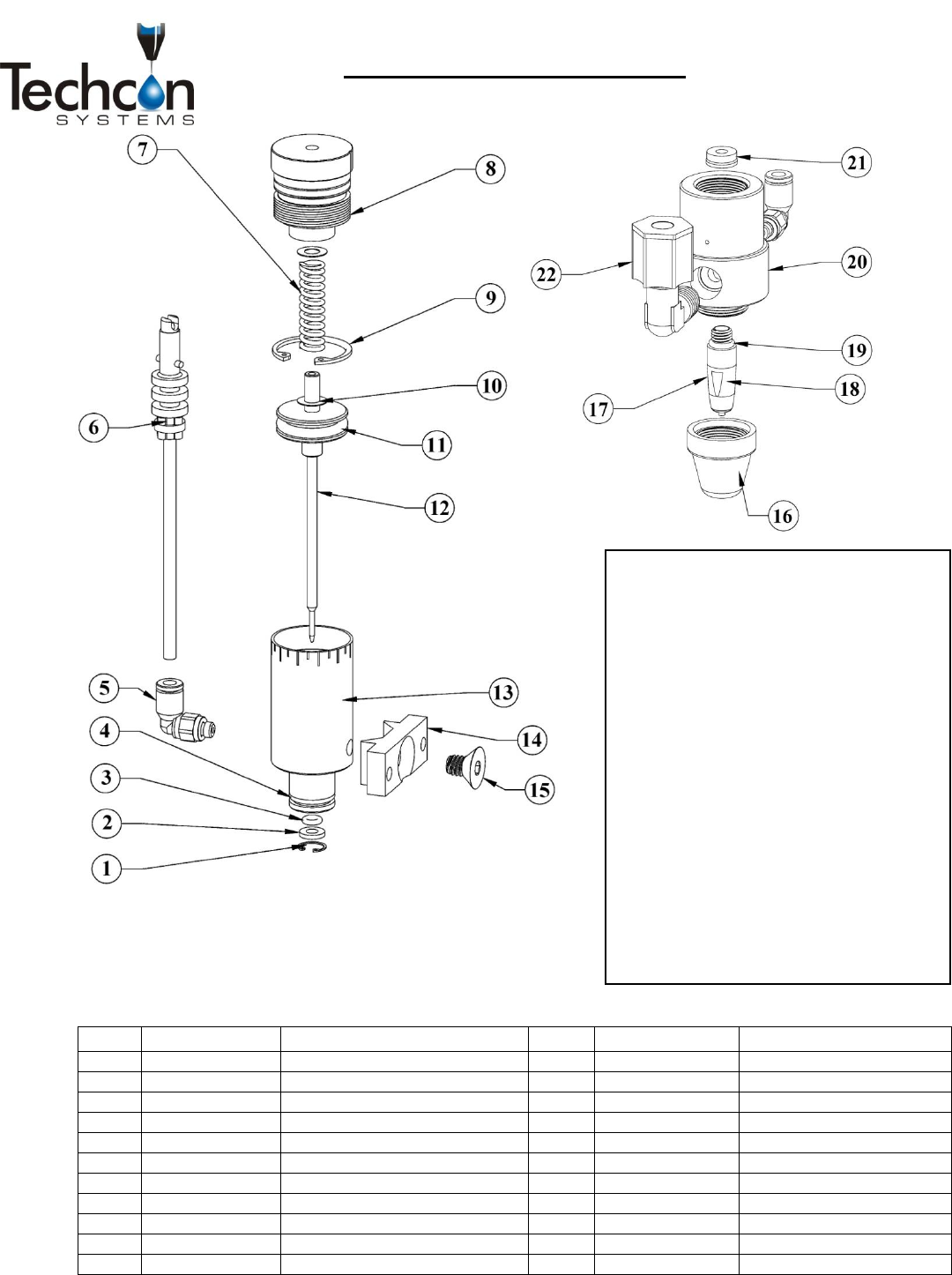

TS5520 Series Spray Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
12
5520-000-010
Needle/Piston Assembly
2
TSD1109-45
Nylon Washer
13
5520-000-001
Air Cylinder
3
TSD1400-006A
O-Ring, Buna
14
918-000-048
Mounting Bracket
4
TSD1400-013A
O-Ring, Buna
15
2800-0634
Mounting Screw
5
TSD1003-20
Air Fitting, 4mm, Elbow
16
5520-000-018
Spray Cone Cap
6
A0100478
Air Hose/Connector Assy, 4mm
17
5520-000-020
Nozzle, Inc. Seat
7
TSD1150-34
Spring
18
T1000598
Nozzle Seat
8
5520-000-007
End Cap
19
TSD1400-008A
Nozzle Adaptor O-Ring, Buna
9
TSD1120-15
Retaining Ring, Large
20
5520-000-002
Body
10
TSD1109-43
Mylar Washer
21
TSD400-70
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
22
TSD1003-16
Compression Fitting
Seal Repair Kit = 5520-SEALKIT
Includes 1 x 3, 4, 11, 19, 21 and 1 x 22 -
TSD931-75 - (TSD1003-16 Shown)
Valve Repair Kit = 5520-VALVEKIT
Includes 1 x 2, 3, 4, 9, 11, 12, 17, 19, 21,
22 - TSD931-75 - (TSD1003-16 Shown)
and 2 x 10
U-Seal Insertion Tool = 5420-SIT
Nozzle Seat Tool = TSD1113-28
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-70, which must remain dry.
