KLK_F3feeder_PartsList_downsized.pdf - 第15页
18 7 9 1 29 16 28 25 8 11 10 1 24 15 27 19 27 21 20 22 26 5 4 2 3 6 17 No. Part No. Part Name Q’ty Remarks Change Compati. 1 KHJ-MC10E-00 SCREW ,FLA T HEXLOBE 11 2 KHJ-MC210-10 MOTOR, PEEL 1 2-1 KHJ-MC210-1 1 MOTOR, PEEL…
5
6
8
17
10
15
11
12
14
4
2
3
17
7
9
16
13
16
18
5
19
7
OLD
OLD

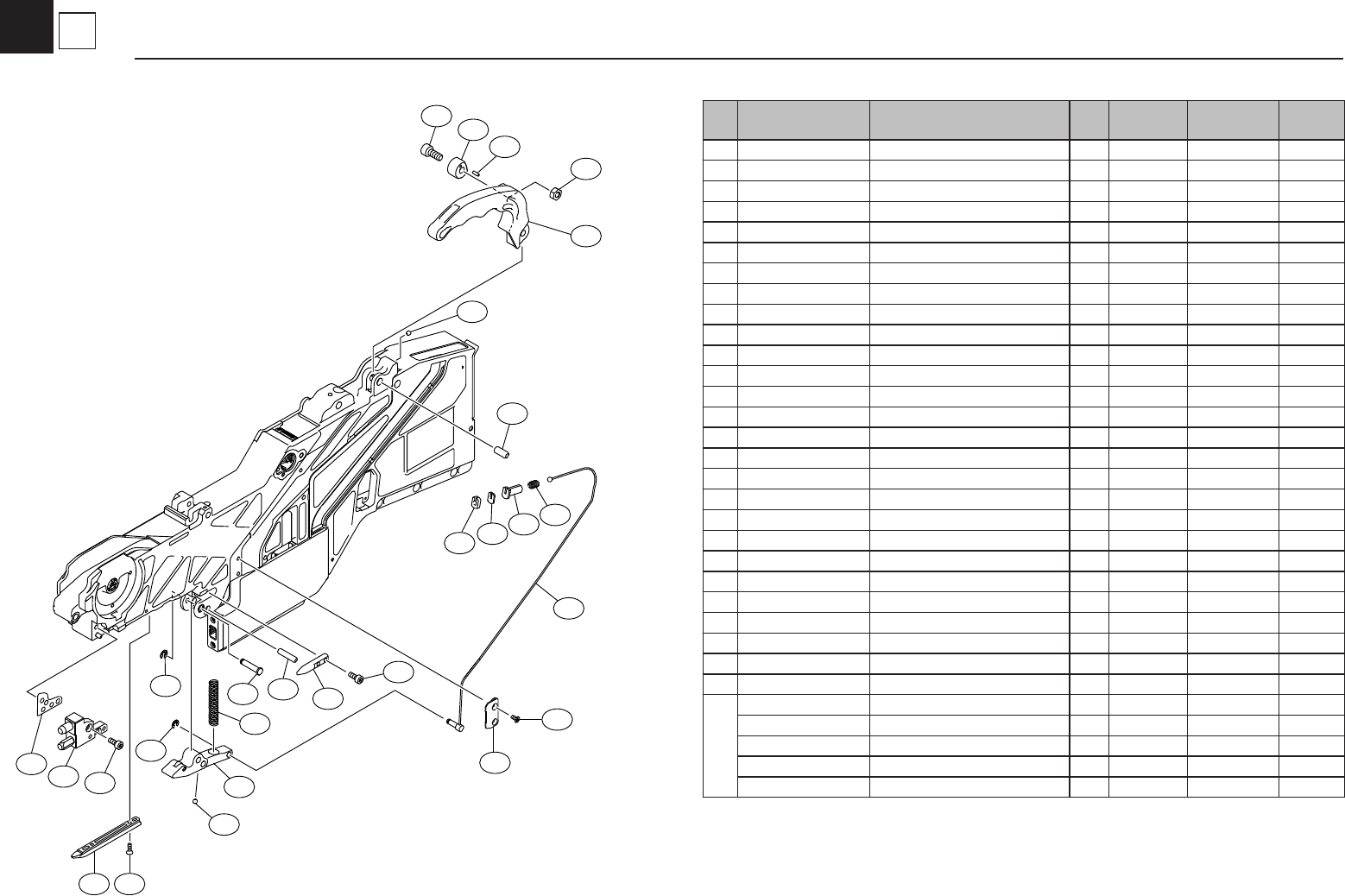

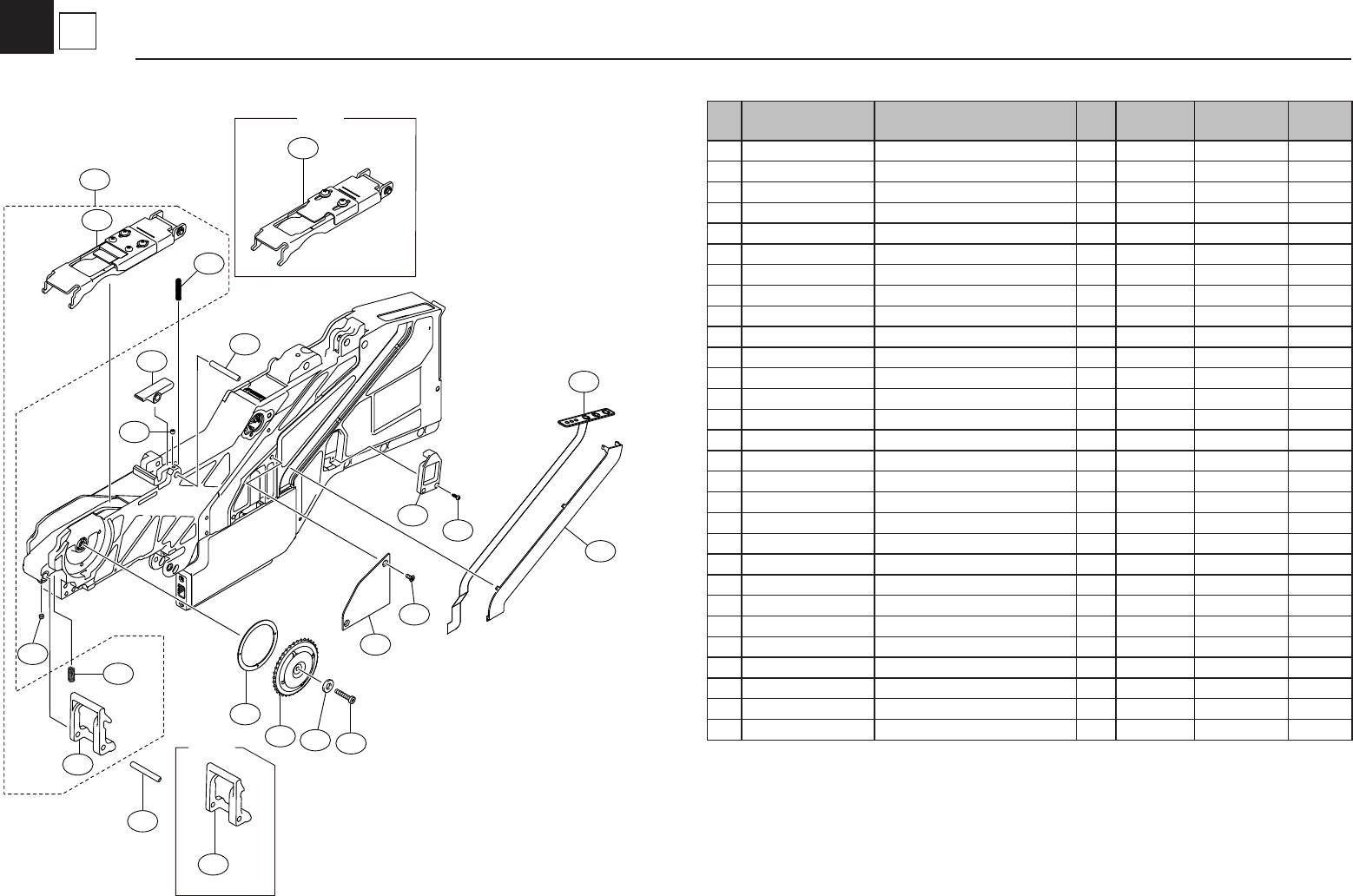

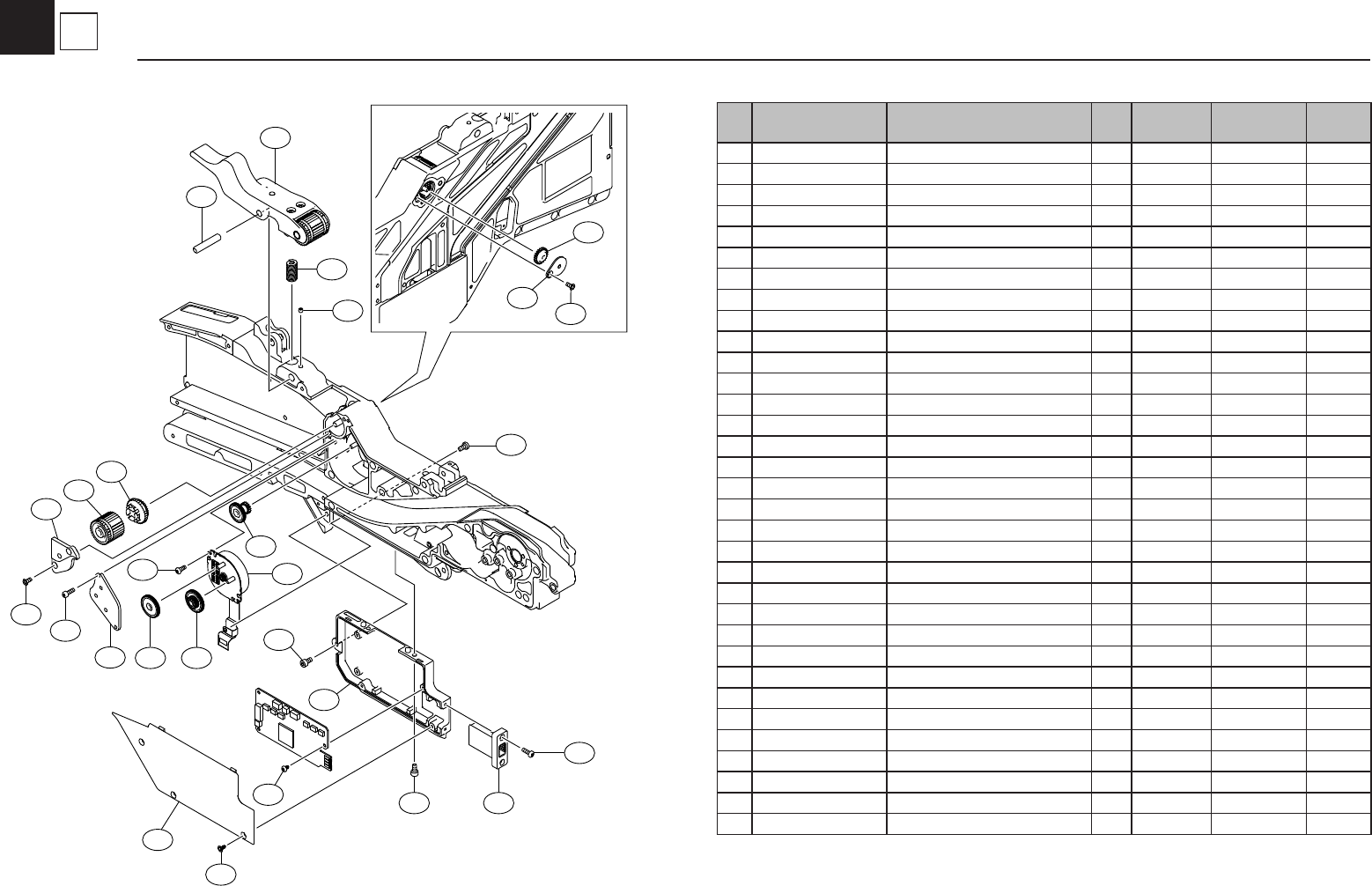

No. Part No. Part Name Q’ty Remarks Change
Compati.
1
2
KHJ-MC132-00 SPROCKET
1
2-1
KHJ-MC132-01 SPROCKET ASSY.
1
Resin (2008/10/14) OK
2-2
KHJ-MC132-02 SPROCKET ASSY.
1
Metal (2011/4/27) OK
3
KHJ-MC23A-00 SHIM,SPROCKET
1
4
KHJ-MC43E-00 BOLT HEX.S/H LOW
1
5
KHJ-MC441-00 TAPE GUIDE ASSY.
1
5-1
KHJ-MC441-01 TAPE GUIDE ASSY.
1
(2008/5/17) OK
5-2
KHJ-MC441-03 TAPE GUIDE ASSY.
1
(2009/3/2) NG
5-3
KHJ-MC441-04 TAPE GUIDE ASSY.
1
(2009/7/7) OK
5-4
KHJ-MC441-05 TAPE GUIDE ASSY.
1
(2009/12/2) OK
6
KHJ-MC244-00 LEVER,TAPE GUIDE R
1
7
KHJ-MC445-00 LEVER,TAPE GUIDE F
1
7-1
KHJ-MC445-01 LEVER,TAPE GUIDE F
1
(2009/3/2) NG
8
KHJ-MC146-00 SPRING,TAPE GUIDE R
1
8-1
KHJ-MC146-02 SPRING,TAPE GUIDE R
1
(2009/3/2) NG
9
KHJ-MC247-00 SPRING,TAPE GUIDE F
1
9-1
KHJ-MC247-01 SPRING,TAPE GUIDE F
1
(2009/3/2) NG
10
KHJ-MC167-00 COVER,MENBRANE
1
11
90990-09J008 SCREW,FLAT HEAD
11
12
KHJ-MC26K-00 COVER,MENBRANE 2
1
13
KLJ-MC1A5-00 DUMMY SPLICE SENS.
1
14
KHJ-MC1AA-00 SWITCH,OPERATION
1
15
KHJ-MC1AB-00 SCREW,PAN HEAD TAP.
2
15-1
90990-54J007 SCREW,PAN HEAD TAP.
2
(2009/3/6) OK
16
92A08-03303 SCREW, SET
5
M3*L3
17
99480-04030 PIN,PARALLEL
2
18
19
92902-03200 WASHER,PLAIN
1
(2008/10/14)
KLK-1603
3
2
GUIDE,SPROCKET & E/L 24mm
18
7
9
1
29
16
28
25
8
11
10
1
24
15
27
19
27
21
20
22
26
5 4
2
3
6
17
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
11
2
KHJ-MC210-10 MOTOR, PEEL
1
2-1
KHJ-MC210-11 MOTOR, PEEL
1
(2011/4/13) NG
3
90990-08J021 SCREW,STAD
4
4
KHJ-MC251-00 GEAR,IDLE P1
1
5
KHJ-MC252-00 GEAR,IDLE P2
1
6
KHJ-MC253-00 GEAR,IDLE P3
1
7
KHJ-MC254-00 GEAR,IDLE P4
1
8
KHJ-MC256-00 ROLLER,PEEL OFF 1
1
9
KHJ-MC258-00 COVER,IDLE GEAR 1
1
9-1
KHJ-MC258-01 COVER,IDLE GEAR 1
1
SUS (2008/8/8) OK
10
KHJ-MC259-00 COVER,IDLE GEAR 2
1
11
KHJ-MC45A-00 ROLLER,SUB 1
1
(2013/1/31)
12
13
14
15
KHJ-MC25E-00 COVER,IDLE GEAR 3
1
16
KHJ-MC26E-00 SPRING,P/O LEVER
1
17
90990-54J004 SCREW,PAN HEAD TAP.
3
18
KHJ-MC46V-00 P/O LEVER ASSY.
1
19
KHJ-MC1A1-00 BOX,EL
1
20
KHJ-MC1A2-00 COVER,BOX EL
1
21
KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T
3
22
KHJ-MC1A9-00 CONNECTOR,BOARD
1
23
24
90115-2AJ008 BOLT HEX.SOCKET HEAD
2
25
90166-02JA03 SCREW,PAN HEAD
2
M2.5*L3
26
90166-02JA06 SCREW,PAN HEAD
2
M2.5*L6
27
91317-03006 BOLT HEX.SOCKET HEAD
3
27-1
KHJ-MC11T-00 BOLT,LOCK S/H
3
Pre-coated (2011/4/22) OK
28
92A08-03303 SCREW, SET
5
M3*L3
29
99480-05025 PIN,PARALLEL
1
29-1
90990-18J030 PIN,PARALLEL
1
L25 (2013/5/20) OK
KLK-1603
3
3
PEEL & E/L BOX 24mm
22
17
5
19
7
23
26
9
10
8
12
11
6
15
21
3
25
13
14
18
23
42
16
20
21
1
27
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
KHJ-MC10W-00 FRONT BLOCK ASSY
1
1-1
KLJ-MC10W-00 FRONT BLOCK ASSY
1
(2012/11/30) OK
2
KHJ-MC104-00 RAIL,UNDER
1
3
KHJ-MC105-00 PIN,TAIL
1
4
KHJ-MC10F-00 SCREW,FLAT HEAD
2
5
KHJ-MC53N-00 PIN,DOWEL
1
6
90990-09J008 SCREW,FLAT HEAD
11
7
KHJ-MC281-00 HANDLE
1
8
KHJ-MC182-00 TENSION,WIRE 1
1
9
KHJ-MC183-00 SPACER,TENSION 1
1
10
KHJ-MC184-00 SPACER,TENSION 2
1
"Q'ty" variable
11
KHJ-MC286-00 WIRE,UNCLAMP
1
12
KHJ-MC187-00 SPRING,TENSION
1
13
KHJ-MC289-00 PIN,CLAMP
1
14
KHJ-MC18A-00 SPRING,CLAMP
1
15
KHJ-MC28B-00 COVER,WIRE 1
1
16
90990-14J001 CIRCLIP (E)
1
17
KHJ-MC48G-00 SHAFT,HANDLE SUPPORT
1
18
KHJ-MC28H-00 CLAMP LEVER ASSY.
1
19
90189-05J056 NUT,HEXAGON
1
20
90440-01J030 CIRCLIP(E)
1
21
91317-03008 BOLT,HEX.SOCKET HEAD
4
22
91317-05012 BOLT HEX.SOCKET HEAD
1
23
92A08-03303 SCREW, SET
5
M3*L3
24
25
99480-04018 PIN,PARALLEL
1
26
99480-05012 PIN,PARALLEL
1
27
KHJ-MC107-00 SHIM,FRONT BLOCK 1
1
0.01t
KHJ-MC108-00 SHIM,FRONT BLOCK 2
1
0.05t
KHJ-MC10G-00 SHIM,FRONT BLOCK 3
1
0.1t
KHJ-MC10U-00 SHIM,FRONT BLOCK 4
1
0.03t
KHJ-MC10V-00 SHIM,FRONT BLOCK 5
1
0.02t
KLK-1603
3
4
CLAMP LEVER 24mm
