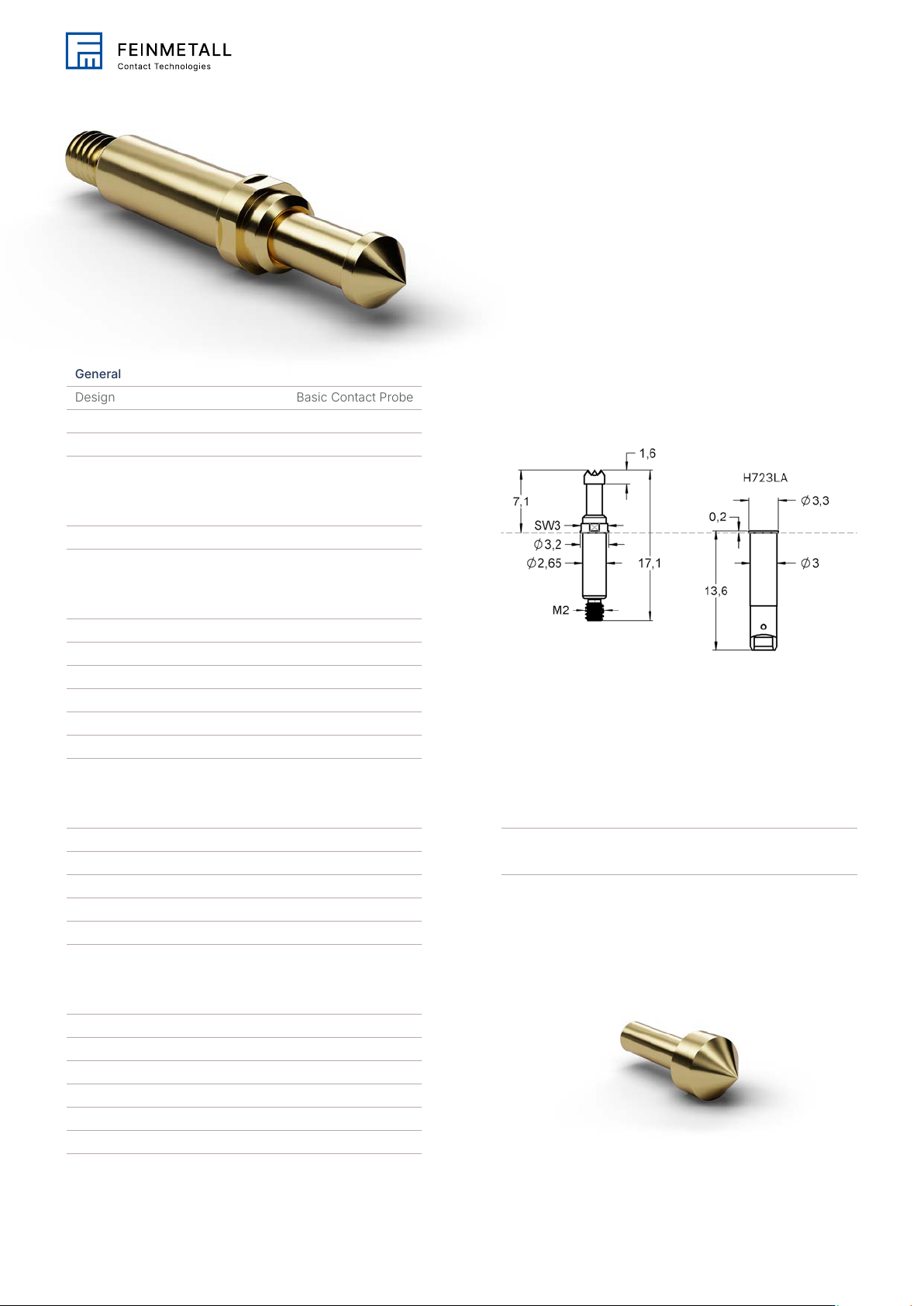

1010103_F72302B230G080_EN.pdf
Gener al Design Basic Cont act Pr obe Family F723 Pitch [mm/mil] 4 .00 / 157 Electrical specific ations T ypical cont act resistance [mOhm] 15. 00 Mechani…
General
Design Basic Contact Probe
Family F723
Pitch [mm/mil] 4.00 / 157
Electrical specifications
Typical contact resistance [mOhm] 15.00
Mechanical specifications
Preload [cN] 40.00
Spring force [cN] 80.00
Nominal travel [mm] 2.80
Maximum travel [mm] 3.50
Pointing accuracy +/- [mm] 0.10
Thread M2
Tool size [mm] 3.0
Dimensions
Total length [mm] 17.10
Projection height [mm] 7.10
Tip style diameter [mm] 2.30
Barrel diameter [mm] 2.65
Collar diameter [mm] 3.20
Press ring diameter [mm] 3.20
Materials & surfaces
Tip style 02
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material High-grade steel
Spring plating Uncoated
Accessories
Tip style 1
Basic Threaded Probes
F72302B230G080
Order code 1010103
Family drawing
