The system is equipped with a high-
power X-ray tube and a line detector
array developed by YXLON.
CT Compact generates high energy to
effectively penetrate iron components up
to 65 mm (ca. 2.6”) thick and aluminum
parts up to 250 mm (ca. 9.9”). In only
30 seconds you can analyze the 3D image
or the stacked 3D model.
The mechanical capacity and perfor-
mance is complemented by a number
of process-enhancing software tools
integrated into every CT Compact set-up.
Use a workhorse with extra power
Which items and materials
are especially suitable
for YXLON CT Compact?
Heavy metal castings
Aluminum and steel
components
Cylinder heads, engine blocks
and transmission housings
Dense historical art and
archeological objects
Large geological samples
Automated center determination and
beam hardening corrections eliminate
the need for time-consuming manual
interaction.
With the CT Compact YXLON provides
you with reasonably priced access to
the advantages of industrial com puted
tomography. The system is designed for
years of peak-performance inspections.
You can count on rock-solid hardware and
software components that reliably allow
you to carry out production monitoring,
quality control and prototype construction.

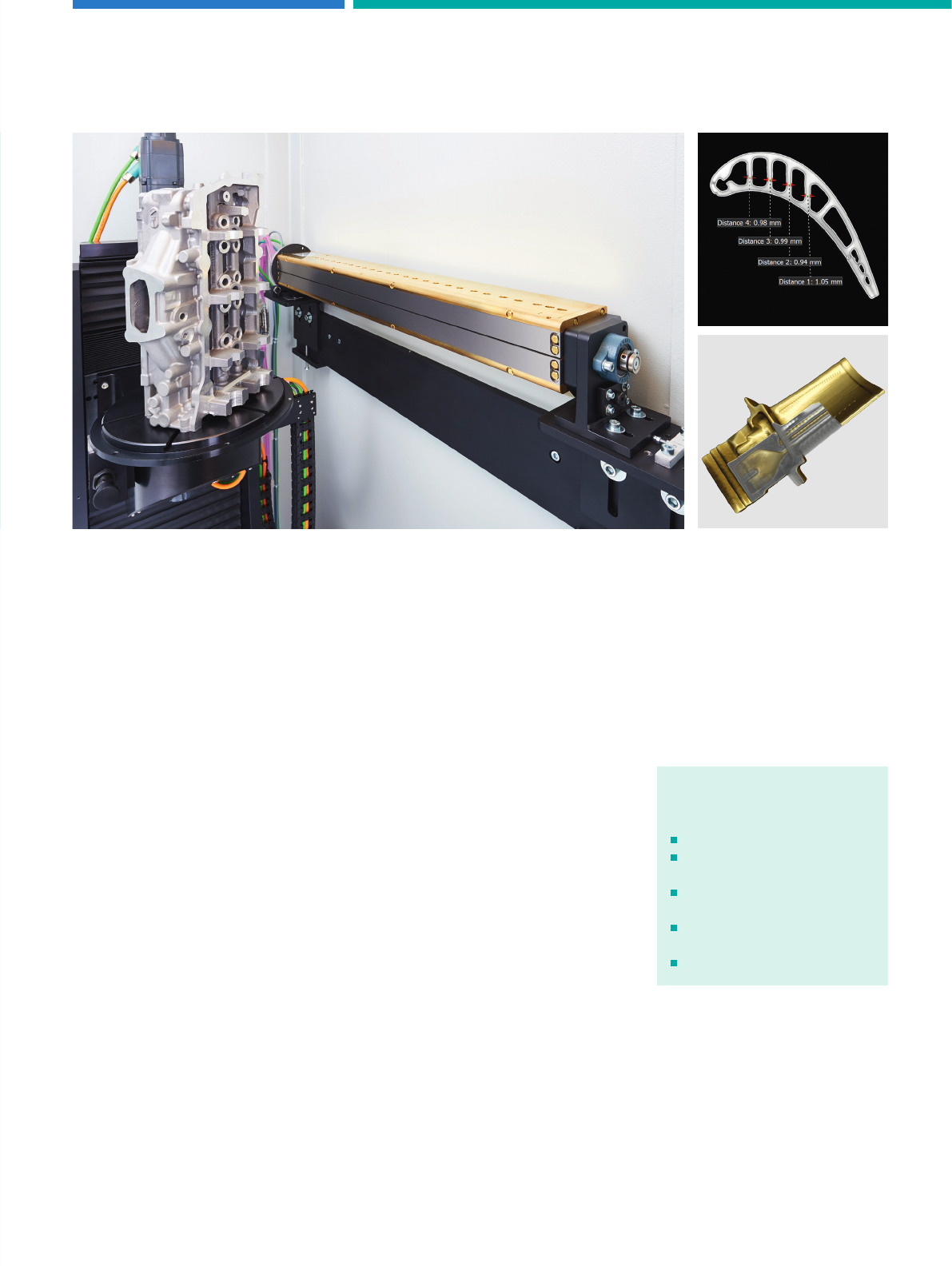

1 View inside the cabin with
the new YXLON line detector
technology
1 2
3
2 Dimensional measurement
example of a turbine blade
3 Volume of a turbine blade
YXLON Life Cycle Service –
more than the best image
What are your specific service requirements? We offer a wide
range of service modules and packages tailored to your needs.
Our highly qualified global service team is committed to
providing excellent service to our customers worldwide. With
eight global service centers and specialized staff at over 50
service partners, we can ensure a rapid response time wherever
and whenever you need it.
Your benefits include:
High system availability
Low operating costs
Superior inspection results
Guaranteed operational safety
Prolonged system lifetime
We align our organization and all service activities to comply
with your requirements. With our innovative, modular service
solutions you can count on true added value throughout the
entire life cycle of your system.
We support you in keeping your inspection costs to a minimum.
At the same time, your systems operate safely at peak
performance while providing optimum inspection results
throughout their entire lifetime.
YXLON Life Cycle Service
Y.Service Pass – the most important services
tailored to your system and your needs
Y.Smar tPa ss – for customers who need
instantaneous spare parts availabilty
Y.LifeCyclePass – the all-inclusive package cover-
ing all costs throughout the entire system lifetime
Y.WarrantyPass – predictable costs by extending
the warranty for one or two years
Y.SmartSpares – the best compatibility and added
functionality using original YXLON spare parts
Y.Exchange – direct replacement of defective
or worn-out components to minimize system
downtimes
Y.Upgrades – up-to-date system technology and
prolonged lifetime
Y.Ac ad emy – professional training teaches your
operators how to get the most out of the system
7
System Principles YXLON CT Compact XL-Mag
Inspection Mode
Fan-beam CT
Manipulation
3 axes
X-ray Components
X-ray Tube
Y.T U 45 0 - D11
Maximum energy
450 kV
Maximum power
1)
0.7 kW / 1.5 kW
Focal spot
1)
0.4 mm / 1.0 mm
Detector
YXLON CTScan 3-0780
Active length
765 mm (780 mm)
Pixel pitch
254 µm
Temperature stabilization
yes
1)
Selectable by software. Smaller focal spot will result in lower maximum power.
Inspection Item
Maximum part size (Ø x h)
2)
660 mm x 820 mm
Turntable diameter
300 mm (600 mm optional)
Maximum table load
50 kg
2)
Taller parts may be accomodated by rescanning in different orientation.
CT Parameters
Focus Detector Distance (FDD)
3)
1,375 mm
Magnification
3)
1.37 / 2.0 / 2.6
Voxel size
4)
down to 70 µm
Maximum Field of View (FOV)
Standard mode (Ø x h)
370 mm x 750 mm @ Mag 1.37
250 mm x 750 mm @ Mag 2.0
195 mm x 750 mm @ Mag 2.6
Extended mode (Ø x h)
5)
660 mm x 750 mm @ Mag 1.37
460 mm x 750 mm @ Mag 2.0
360 mm x 750 mm @ Mag 2.6
Minimum scan time
< 15 sec. per slice
Minimum reconstruction time
< 15 sec. per slice (computed in
parallel to scan of next slice)
3)
Deviations are possible in the known tolerances.
4)
Determined by geometry and reconstruction parameters without undersampling.
5)
Utilizing horizontal field-of-view extension.
Check out these facts and figures

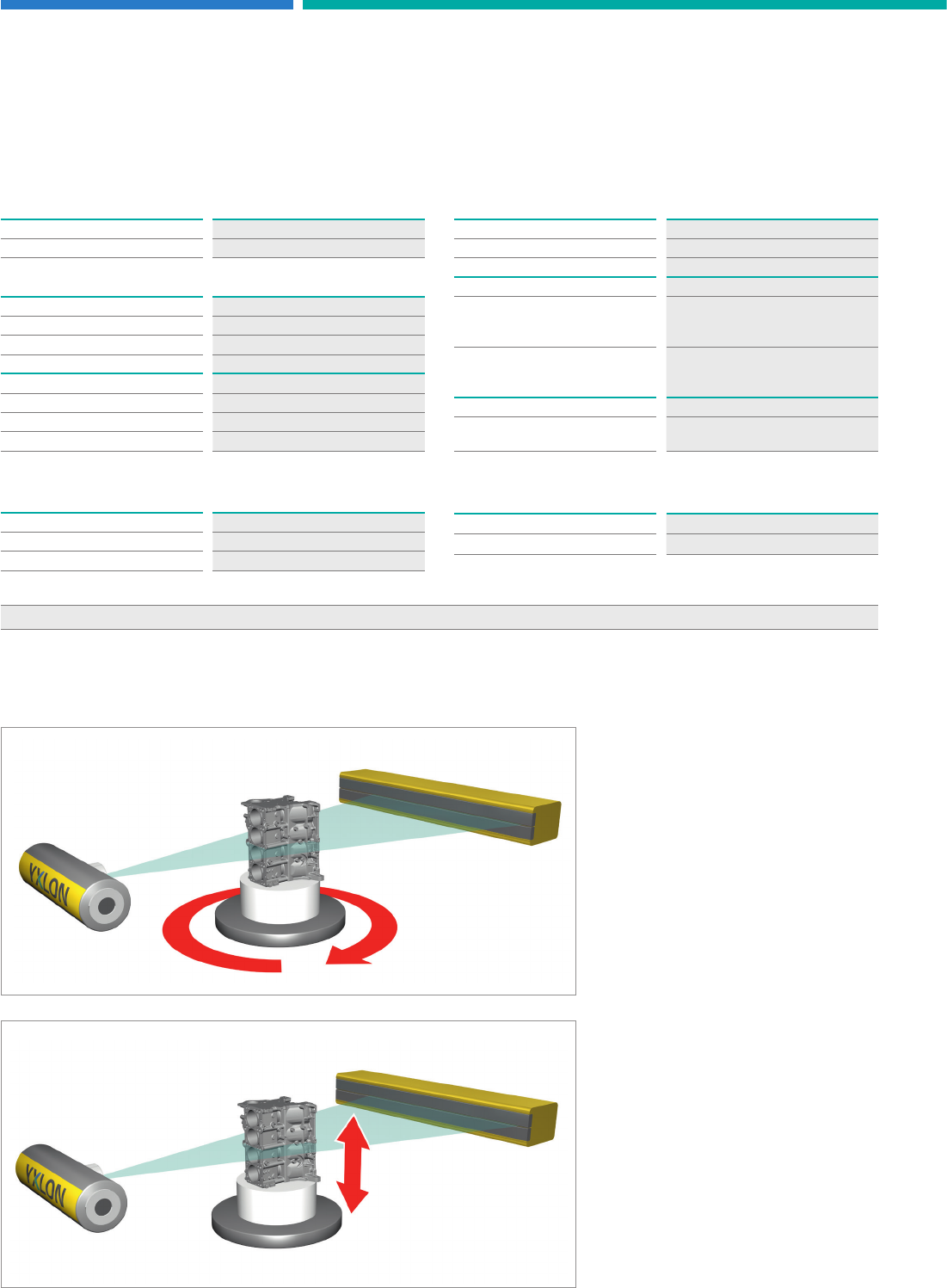

Principle of fan-beam CT: Rotation of part
is followed by a vertical movement. This
sequence is repeated until the desired area
is scanned.
Values are for standard system design and are approximate. See technical description for details. Other configurations on request.
Cabinet
Cabinet size (w x h x d), approx.
2,460 mm x 2,770 mm x 1,860 mm
Cabinet weight, approx.
13,000 kg
