InJet
®
888 CRRD – 1F 
TECHNICAL DATA SHEET
3
www.dct.cleaning
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Re ow and soldering parts
30 – 50°C 86 – 122 °F 40 min. 240 *
PCB
35 – 55°C 95 – 131 °F 60 min. 1008 *
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 20 min. 24
4 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
C
R
D
R
CLEANING
PRE–RINSING
RINSING
DRYING
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
R
R
D
C
InJet
®
888 CRRD – 1F 
TECHNICAL DATA SHEET
4
www.dct.cleaning
TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
1200 mm
47.2 in
open door
1000 mm
39.4 in
metric units imperial units
Dimensions (w x l x h) 1620 x 1400 x 2350* mm 63.8 x 55.1 x 92,5* in
Weight 775 kg 1708 lbs
Ø energy consumption per cycle 3,3 kWh 3.3 kWh
Cleaning and rinsing  uid consumption
per cycle
0,2 – 0,5 l 0.05 – 0.13 gal
Compressed air consumption per cycle 1500 l / cycle 396.26 gal / cycle
Max. dimensions of the cleaned parts 850 x 800 x 600 mm 33.46 x 31 x 22.7 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Spraying pressure – cleaning – without FC 1,8 Bar 26.1 PSI
Spraying pressure – cleaning – with FC 1,1 – 2,2 Bar 15.95 – 31.9 PSI
Operating pressures frequency converter 2,4 Bar 34.8 PSI
Cleaning  uid  ow rate 210 l / min 55.5 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 85 l 22,4 gal
* Maximum dimension in operating condition
1960 mm
77.7 in
1350 mm
53.1 in
1620 mm
63.8 in
2350 mm
92.5 in
InJet
®
888 CRRD – 1F 
TECHNICAL DATA SHEET
5
www.dct.cleaning

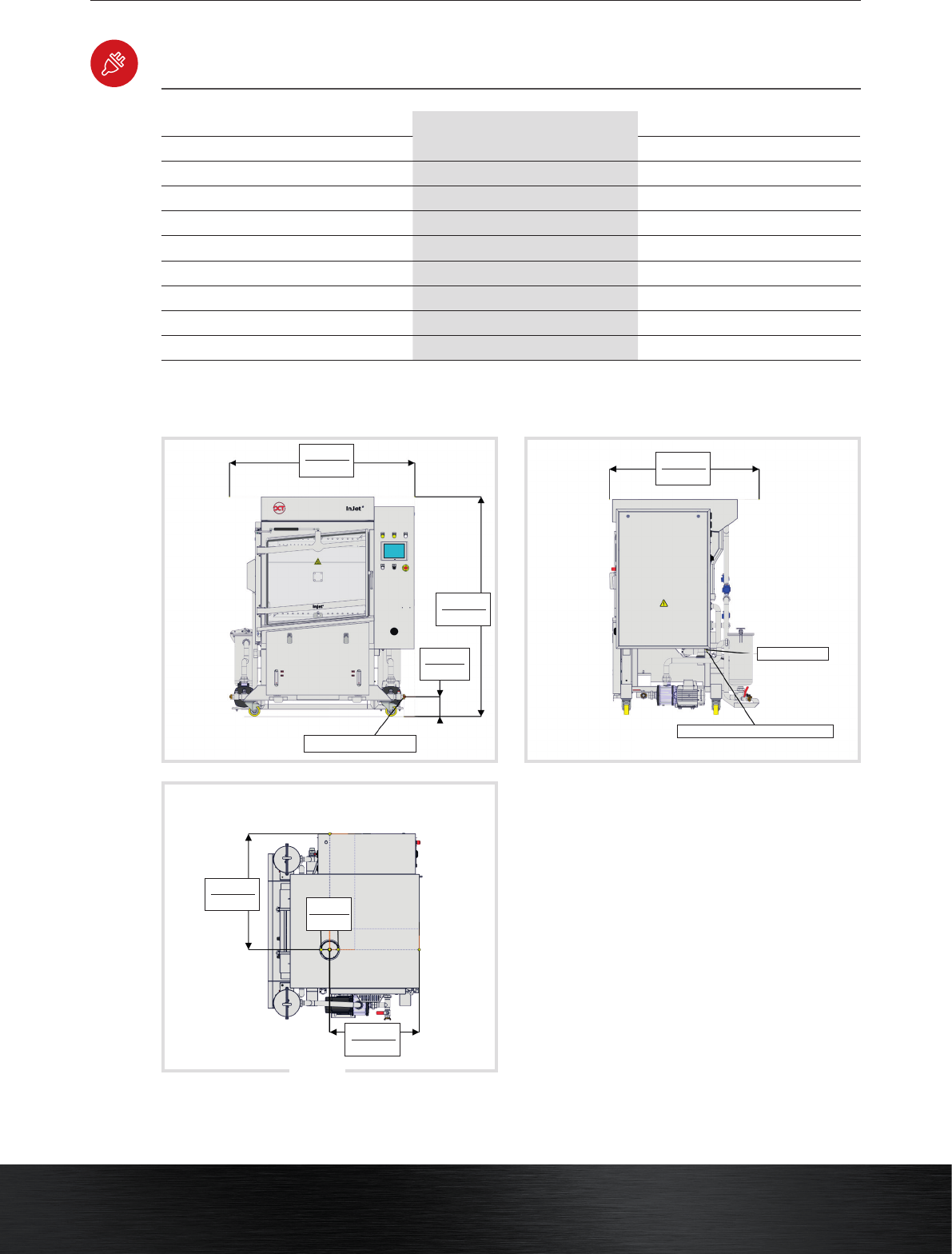

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
RIGHT
VIEW
1620 mm
63.8 in
1350 mm
53.1 in
1960 mm
77.7 in
170 mm
6.69 in
discharge of the fluids
input el. power
1005 mm
39.6 in
780 mm
30.7 in
Ø 100 mm
ID 3.94 in
input air pressure Ø 6 mm, ID 0.39 in
metric units imperial units
Power supply 400V, 32A, 50Hz (3+N+PE) UL 400V, 32A, 60Hz* (3+N+PE)
Pmax 14 kW 14 kW
Compressed air connection Pipe Ø 6 mm, Ø 10 mm Pipe ID 0.24 in, ID 0.39 in
Recommended working pressure 4,5 – 6 Bar 65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter Ø 150 mm ID 5.91 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for  rst run 2 x 75 l 2 x 19.8 gal
Service space required around the device 600 mm 23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
