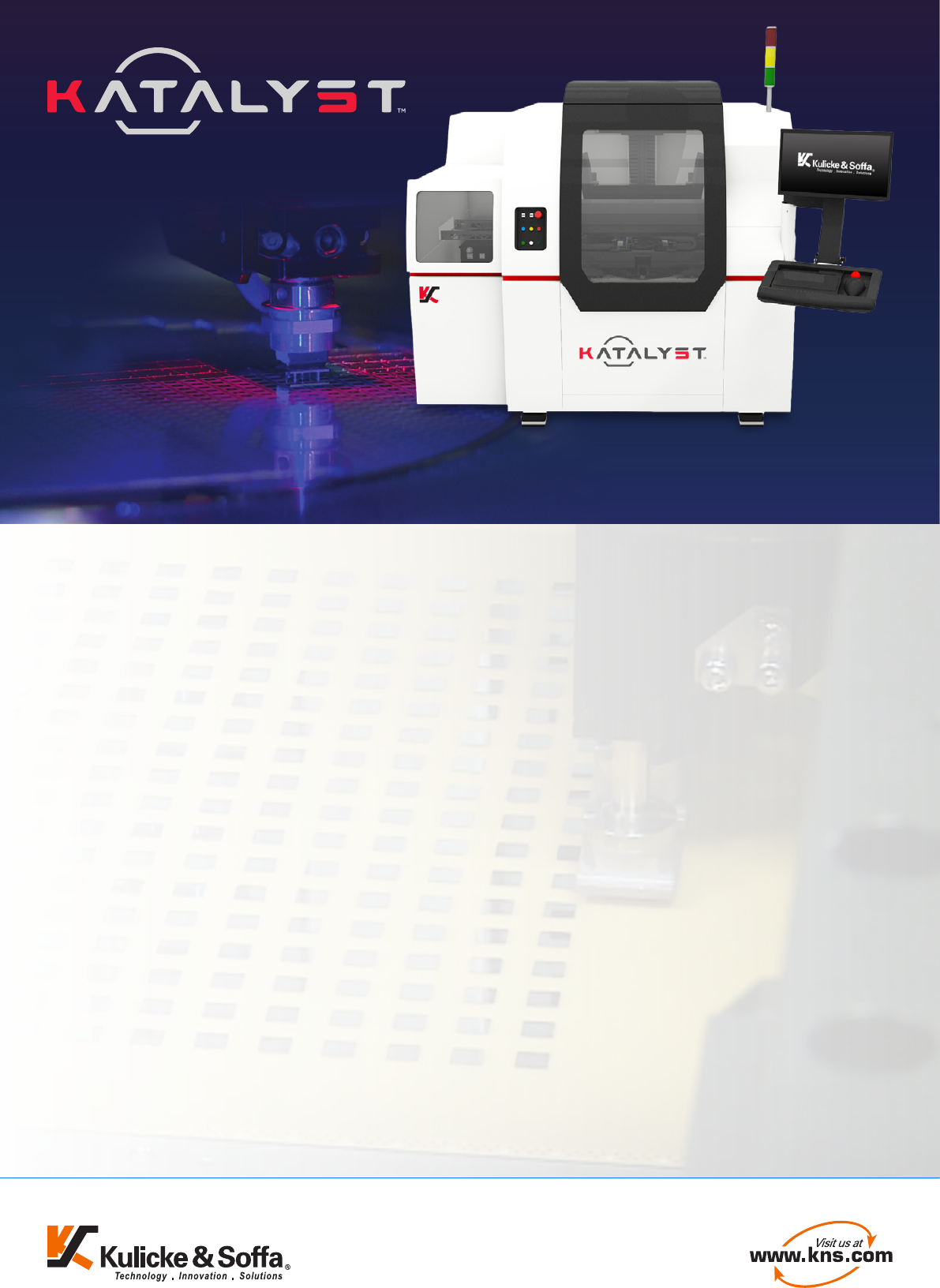

Kulicke & Soa’s Katalyst™ delivers the industry’s highest accuracy and
speed for flip-chip placement. Its hardware and technology enable < 3 μm
accuracy on substrate or wafer, achieving the best Cost-of-Ownership in the
industry.
Advanced automation and software features have been employed to
achieve exceptional Ease-of-use, allowing the Katalyst to act like a
single-nozzle machine.
KEY FEATURES
• Dual Gantry with Multi-nozzle Placement
• Multi-die Pickup and Multi-die Dip Flux
• Industry Leading 15K UPH
• 50 μm Thin-die Pick Capability
• < 3 μm Accuracy
• Single-nozzle Setup and Teach
• Machine Health Check Diagnostic
• Complete Material and Process Tracking
• Automated Accuracy Stability Feature
• Electronic Vibration Cancellation Feature
• In-situ Flux-dip Quality Inspection
• Fast Tool-less Application Changeover
• Automated Die Ejector, Pick Tool, and
Place Tool Changers
• Industry 4.0 Compliant
HIGHEST ACCURACY, HIGHEST UPH FLIP-CHIP PERFORMANCE
Typical Applications
BGA, QFN, eWLB, and WHA
Accuracy
< 3 μm at 3 σ
Throughput
15K UPH (real production with 100 ms dip and bond times)
Die Size (8 or 12 inch Wafer)
1 - 15.5 mm (6 nozzles, 15K UPH)
16 - 30 mm (3 nozzles, 7K UPH)
Die Thickness
> 50 μm
Substrate Types
Carriers, boats, and bare substrates
Substrate Size
340 x 340 mm (bondable area 330 x 330 mm)
Single, dual, and triple lanes indexing
Substrate / Carrier Thickness
0.1 - 6 mm
Bond Force
0.5 - 25 N
Tool Changers
Die Ejector, Pick Tool, and Place Tool Changers
Product Changeover Time
< 30 min changeover (fully automated)
Clean Room Class
1,000
TECHNICAL SPECIFICATIONS
For more information, contact your local authorized K&S sales representative or visit www.kns.com
© 2018 Kulicke & Soa Industries Inc. All specifications subject to change without notice.
Trademarks used herein are the property of Kulicke & Soa Industries, Inc. or their respective owners.
AP-004-12/2018

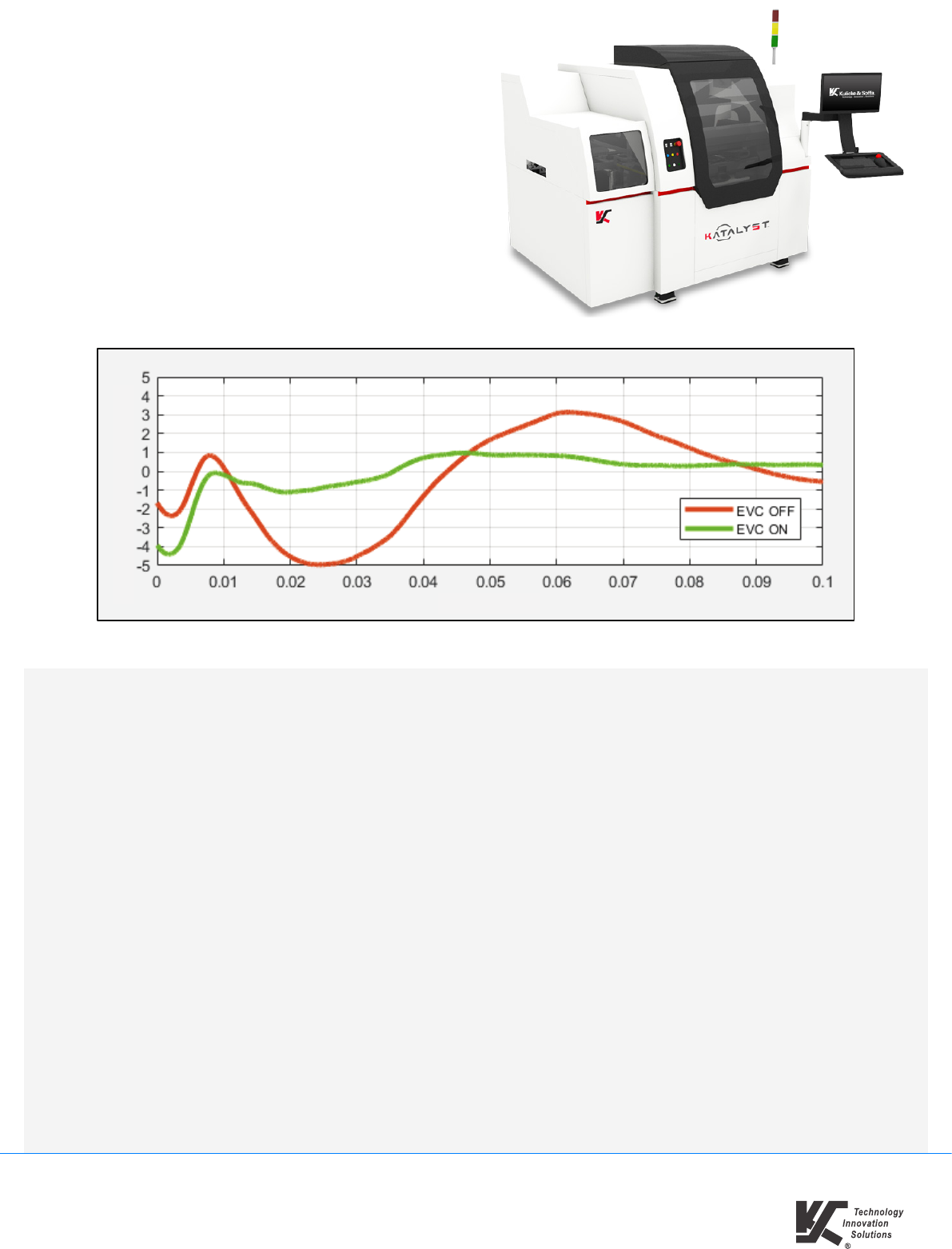

Electronic Vibration Cancellation
Time (seconds)
Position Error (μm)
ELECTRONIC VIBRATION
CANCELLATION
Katalyst delivers the industry’s highest
accuracy and throughput performance
through the use of an Electronic Vibration
Cancellation feature that measures and
compensates for machine vibrations.
