Main standard features □ PowerSpray ® technology bundle: magnetically coupled S-Power pump unit, twofold ASYNCHRO ® volume-spray rotorsysterm with PUSHFORCE ® nozzles □ Magnetic coupled pump unit □ EA TON Programmable Lo…

Most suitable Optional suitable Not suitable Not suitableNot suitable

Cleaning / rinsing (key process 1): From the system tank a communicating cleaning and rinsing liquid is sucked by a

magnetically coupled pump unit and routed with a controllable volume flow into the ASYNCHRO

spray rotors with patented

PUSHFORCE

nozzles. Their geometry ensures a comprehensive and thorough cleaning, even in inaccessible and critical

aereas. The liquid is continuously filtered in circulation, so that the system progressively enters the rinsing process after

removing the contamination.

Drying (key process 2): Drying is carried out by a HotSpeed warm air unit with fan and heating coil in a single air duct. The

residual moisture on the product is evaporated at 40 - 45 ° Celsius (104 - 113 °F).

Cycle time: < 30 min., depending on contamination and detergent

Maintenance: The system has two large maintenance doors on the right and left side. The maintenance room contains,

among other things, the pump-off unit, the optional decalcification cartridge with the mixing unit and the optional re-dosage

unit with space for a 25 l detergent canister. The tank levels as well as pressure values and maintenance cycles are monitored

by the PLC and displayed on the monitor.

Page 2 of 4

Part number: 0905PSE3HD-2

Fully automatic single chamber PowerSpray

-system with

2step process (cleaning / rinsing, drying)

11/21

PSE 300 HD

Made in Germany

CLEANING TECHNOLOGY

kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com

Application overview

Solder carriers

Solder masks

Coating carriers

ESD Boxes

Containers

Magazines

Condensation traps

Filters

Steel sheets

Optional suitable applications can also be optimally realized with the appropriate options.

Stencils

Screens, PumpPrints

Misprints (bare boards)

Assembled PCBs

Hybrids

Misprints (mounted)

All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021

Main standard features

□ PowerSpray

technology bundle: magnetically coupled S-Power pump unit, twofold ASYNCHRO

volume-spray rotorsysterm

with PUSHFORCE

nozzles

□ Magnetic coupled pump unit

□ EATON Programmable Logic Controller (PLC)

□ High resolution 3.5" touch display

□ Full flow coarse filter (process chamber)

□ HotSpeed warm air drying

□ ClosedLoop reprocessing of cleaning and rinsing fluid

□ Safety features: safety interlock on the process chamber door, overheating protection for all heating and drying elements,

end switches for all motor-driven valves and drives, personnel protection insulation

□ Front cover made of stainless steel, side and rear covers in painted steel

□ Process sections made of electrolysis resistant elements

Main options

□ Cascaded filter system / Sediment filter for cleaning / rinsing tank

□ DeSealing prefix filter unit for the cleaning of coating carriers sealed with kolb CarrierSeal

□ Drip & storage reservoir

□ Exhaust ontrol

□ Full stainless steel housing

Page 3 of 4

Part number: 0905PSE3HD-2

Fully automatic single chamber PowerSpray

-system with

2step process (cleaning / rinsing, drying)

11/21

PSE 300 HD

Made in Germany

CLEANING TECHNOLOGY

kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com

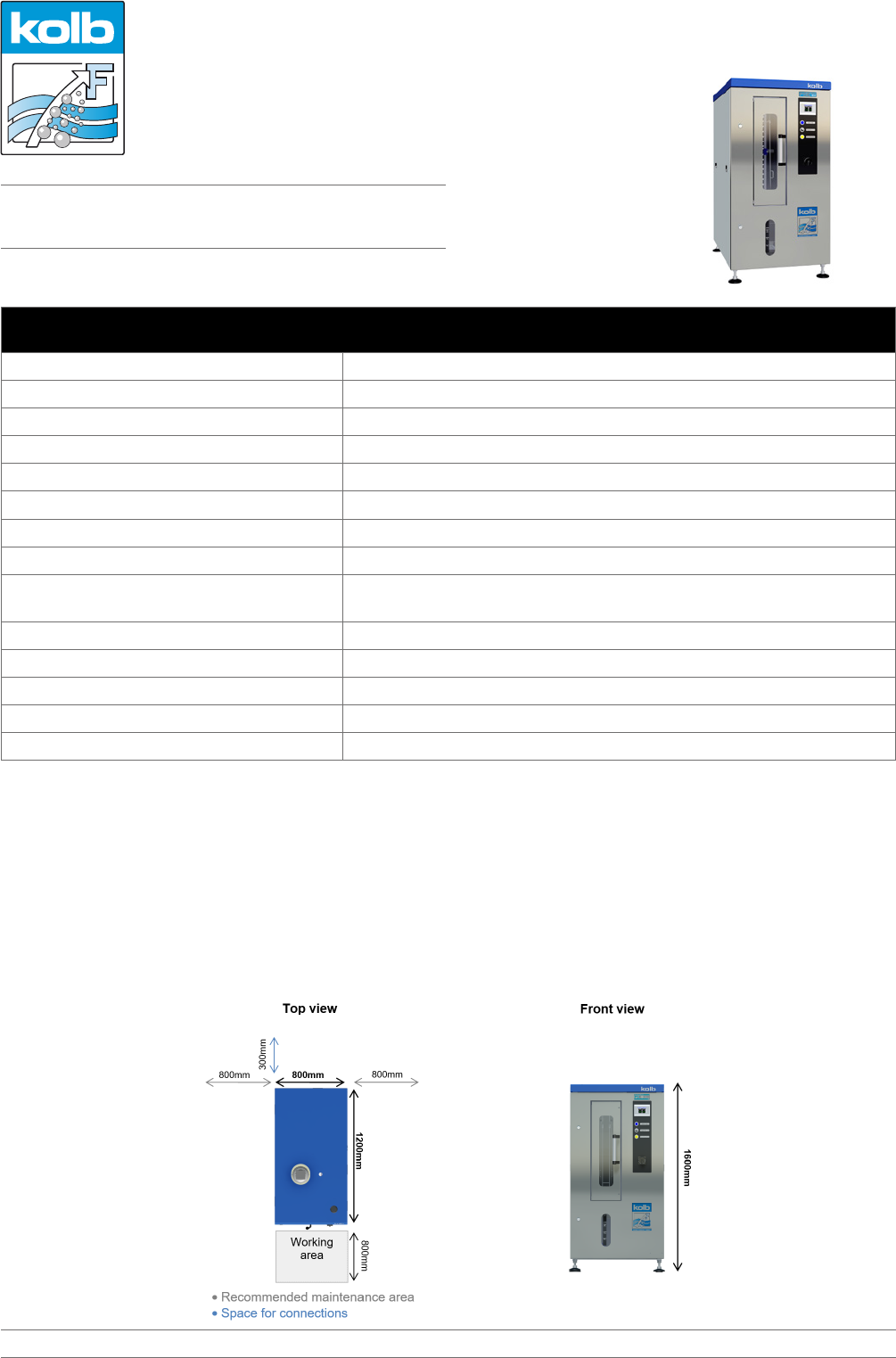

Technical data

Technology base kolb PowerSpray

Capacity per process cycle Screen, stencil, carrier, washing frame up to 950 x 780 mm (37.5 "x 31")

Process chamber dimensions W 350 ▪ D 980 ▪ H 920 mm (W 13.77" ▪ D 38.85" ▪ H 36.22")

Tank volume ca. 75 - 100 l

Power supply 400 V AC, 16 A, CEE plug / 3 Ph / 50 or 60 Hz

Power consumption 2.5 kW

Control system PLC (Eaton E4 XV102)

Temperature load up to 50 °C (122 °F)

Filter system

up to four stages - 1. Prefix filter 2. Full flow coarse filter < 2 mm (0.08"), 3.

Sediment filter, 4. 20“ fine filter (1 - 100 µm - process dependent)

Exhaust connection Ø 160 mm (6.3"), exhaust capacity 200 - 300 m³ / h (7,063 - 10,595 ft³ / h)

Footprint 800 x 1,200 mm (31.49" x 47.24")

Operating condition room temperature 20 - 35 °C (68 - 95 °F)

Operating noise 63 dB (A)

Empty weight 330 kg (728 lbs)

Page 4 of 4
