44 [total] Stroke Length / Feed Time
Total mode: Distance of the tape sent by the feeder
(In case of a multi stick feeder, feeding time) is
output.
45 [total] Smart Exist Count
Total mode: Number of feeder attachment times is
output.
46 [total] After Adjust Drive Cnt
Total mode: Number of times of feeder drive after
adjusting by SS Tune-Up Station is output.
47 Cumulated Drive Cnt Number of times of past feeder drive is output.
4. Setting
When using the feeder ID log, perform the following settings.
4.1 Setting in “ID log setting” screen
Tap [Setup] - [Software Setting] button - [History] tab - [Unit Log] button - [Log Setting]
button and open “ID Log Setting” screen. Enable the maintenance notice function and set
the feeder ID individual log file path to “Server Path”.

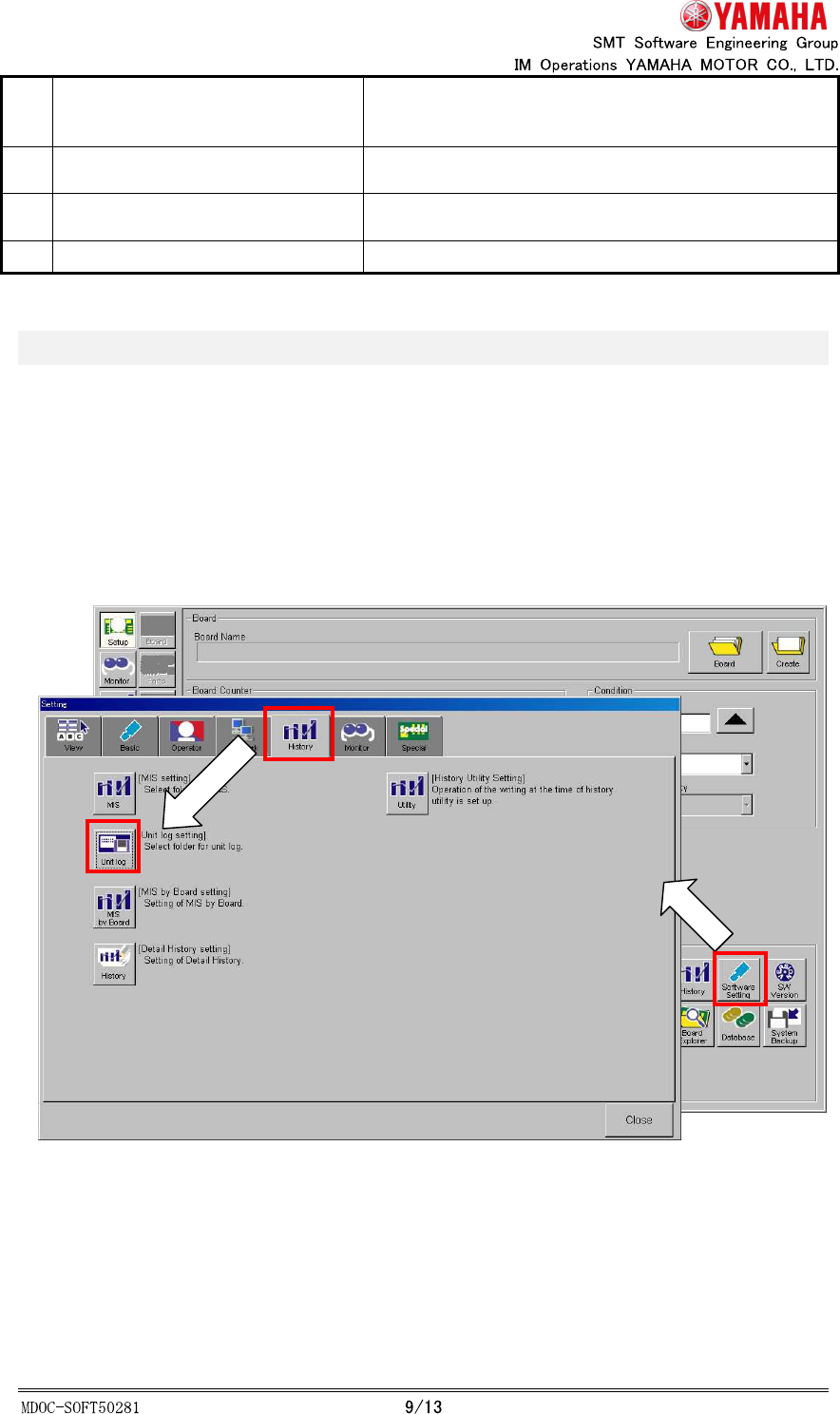

Fig.4.1 “History” tab of “Software Setting” screen

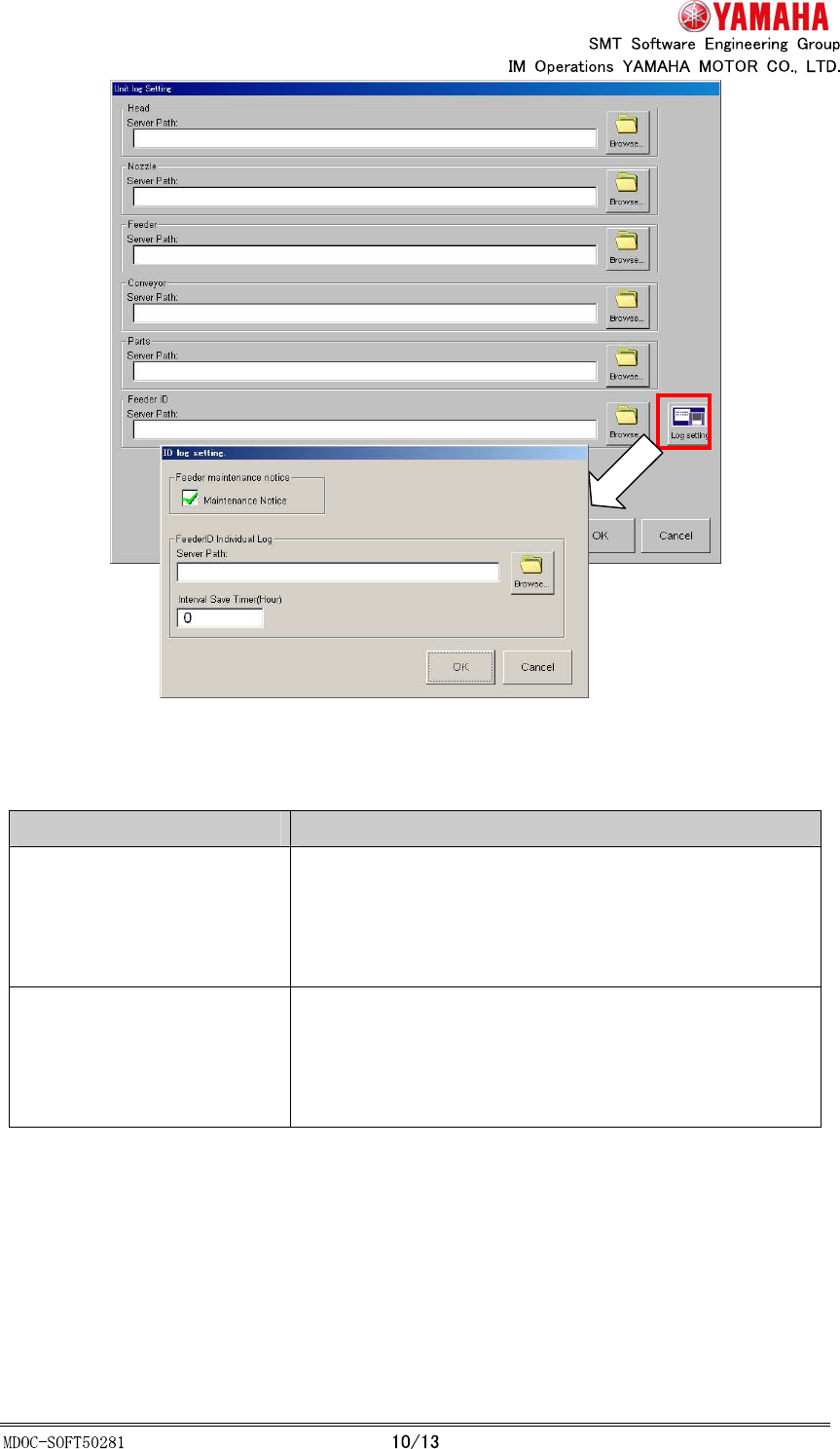

Fig.4.2 “Unit log Setting” screen and “ID log setting” screen
Table4.1 Setting items of ”ID log setting” screen
Item name Explanation
Maintenance Notice
checkbox
If checked, the maintenance notice function becomes
effective.
When the first installation, this check is attached by the
default.
Server Path Set output path of the feeder ID individual log file.
By tapping “Browse” button and opening “Browse Folder”
screen, you can specify the folder path.
When empty, the feeder ID log function becomes invalid.
Interval Save Time (Hour) Set the interval time that outputs the feeder ID individual
log file per hour. When "0" is set, interval save is not
performed.
When reaching the interval save time during
auto-running, file is output after stopping auto-running.
When changing this value and tapping "OK" button, the
current interval save timer is reset and the interval save
timer is restarted with new interval time.
4.2 Setting in “Unit log” screen
Close the [ID log setting] screen and return to [Unit Log Setting] screen.
When outputting the feeder ID daily log file, set output path of the feeder ID daily log file to
“Server Path” in the “Feeder ID” field. By tapping the [Browse] button and opening the
[Browse Folder] screen, you can specify the folder path.
When “Server Path” is empty, the feeder ID daily log file is not output.
4.3 Setting in “Setting Detail History” screen
Tap the [Setup] - [Software Setting] button - [History] tab – [Unit log] button and open the
[Setting Detail History] screen. If needed, perform the setting related to history. (This setting
also influences histories other than feeder)

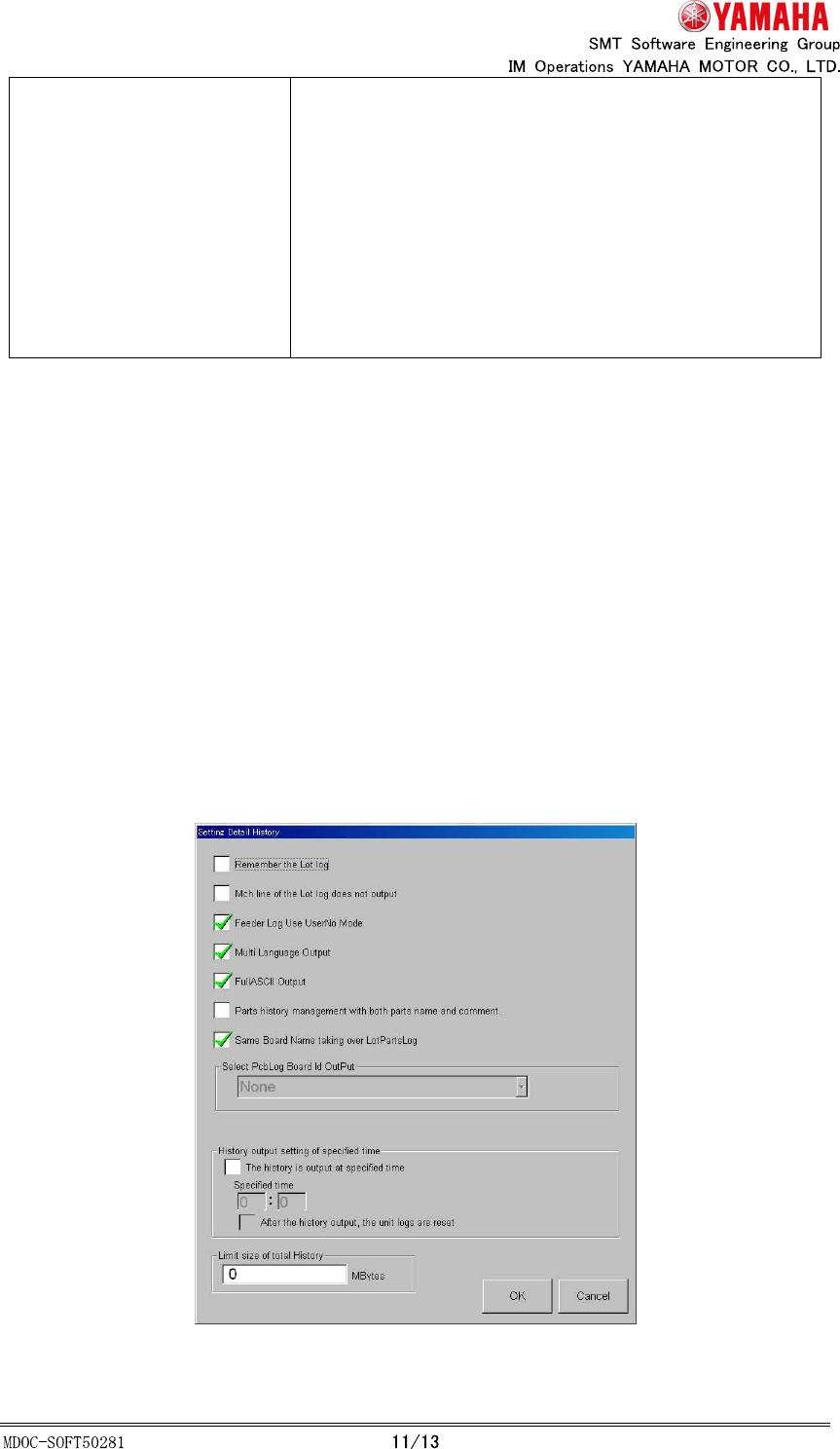

Fig.4.3 “Setting Detail History” screen
