A3-D Dual Rail In-Line AOI
Classification:SMT Inspection Solutions
Application scope: suitable for pre-reflow, reflow soldering dual-track online
inspection
Detection content: offset, less tin, more tin, short circuit, missing parts, skewed,
monument, side stand, turn over the pieces, wrong pieces, broken, polarity, false
soldering, empty soldering, overflowing glue, tin holes, pins are not out of the

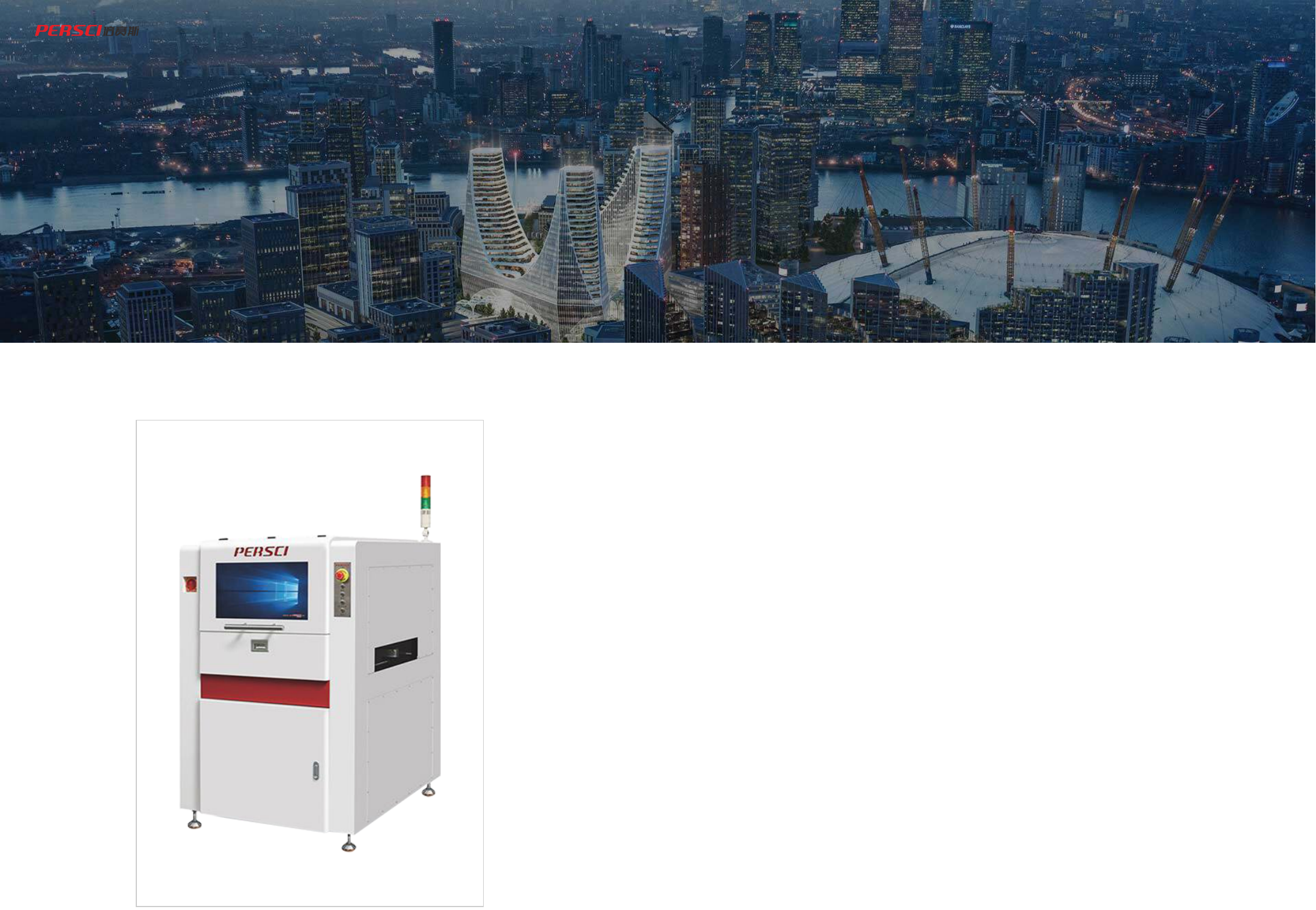

Product name: D3 dual-track online AOI
D is the abbreviation of Double. Double means double, which means dual-track online AOI. 3 refers to the third generation software and also refers to the
third generation AOI.
Parameter PRODUCT PARAMETERS
model A3-D
Application scope Suitable for dual-rail online inspection before and after reflow soldering
Software part
operating system Windows7, Windows10
Software version V3.0
software algorithm
OCV algorithm, OCR algorithm, TOC algorithm, Histogram algorithm, Match algorithm, Short algorithm, Other algorithm,
PIN algorithm, Length algorithm, Hole algorithm, CREST algorithm, Pole algorithm, Offset algorithm, Compare algorithm,
Padplace algorithm and other algorithms, system Automatically set parameters according to different detection points
programming mode
Manual writing, automatic frame, CAD data import, component library import; (chargeable options: offline programming,
remote programming)
Hardware parts Machine size 935*1310*1450mm (L*W*H) does not include the height of the signal light
Machine weight About 1100KG
camera pixels 500 million pixels 12 million pixels
Resolution
Visual Range
Speed
Standard configuration:
15μm/Pixel FOV: 36mmx30mm Detection speed <200ms/F
OV
option:
20μm/Pixel FOV: 48mmx40mm Detection speed <200ms/
FOV
option:
25μm/Pixel FOV: 60mmx50mm Detection speed <200ms/F
OV
option:
10μm/ Pixel FOV: 24mmx20mm detection speed <200ms/F
OV
Standard configuration:
15μm/Pixel FOV: 60mmx45mm Detection speed <200ms/
FOV
option:
10μm/Pixel FOV: 40mmx30mm Detection speed <200ms/
FOV
option:
7μm/Pixel FOV: 28mmx21mm Detection speed <200ms/F
OV
option:
3.45μm /Pixel FOV: 13.80mmx10.35mm detection speed
<200ms/FOV
light source High-brightness RRGB coaxial ring-shaped tower LED light source (color light)
Conveyor system
Bottom-up fixing, automatic compensation for PCB/FPC bending deformation, automatic in and out of boards, automatic
width adjustment of flat belts
Conveyor height
above ground
890 to 980mm
Conveyor flow
direction
Can be set to left to right or right to left
platform marble platform
X/Y platform driver Screw and AC servo motor drive, PCB/FPC fixed, Camera moves in XY direction
power supply AC220V 50/60Hz less than 1.5KVA
air pressure 0.4-0.8Mpa
Operating
environment
temperature and
humidity
10-35℃ 35-80% RH (no condensation)
