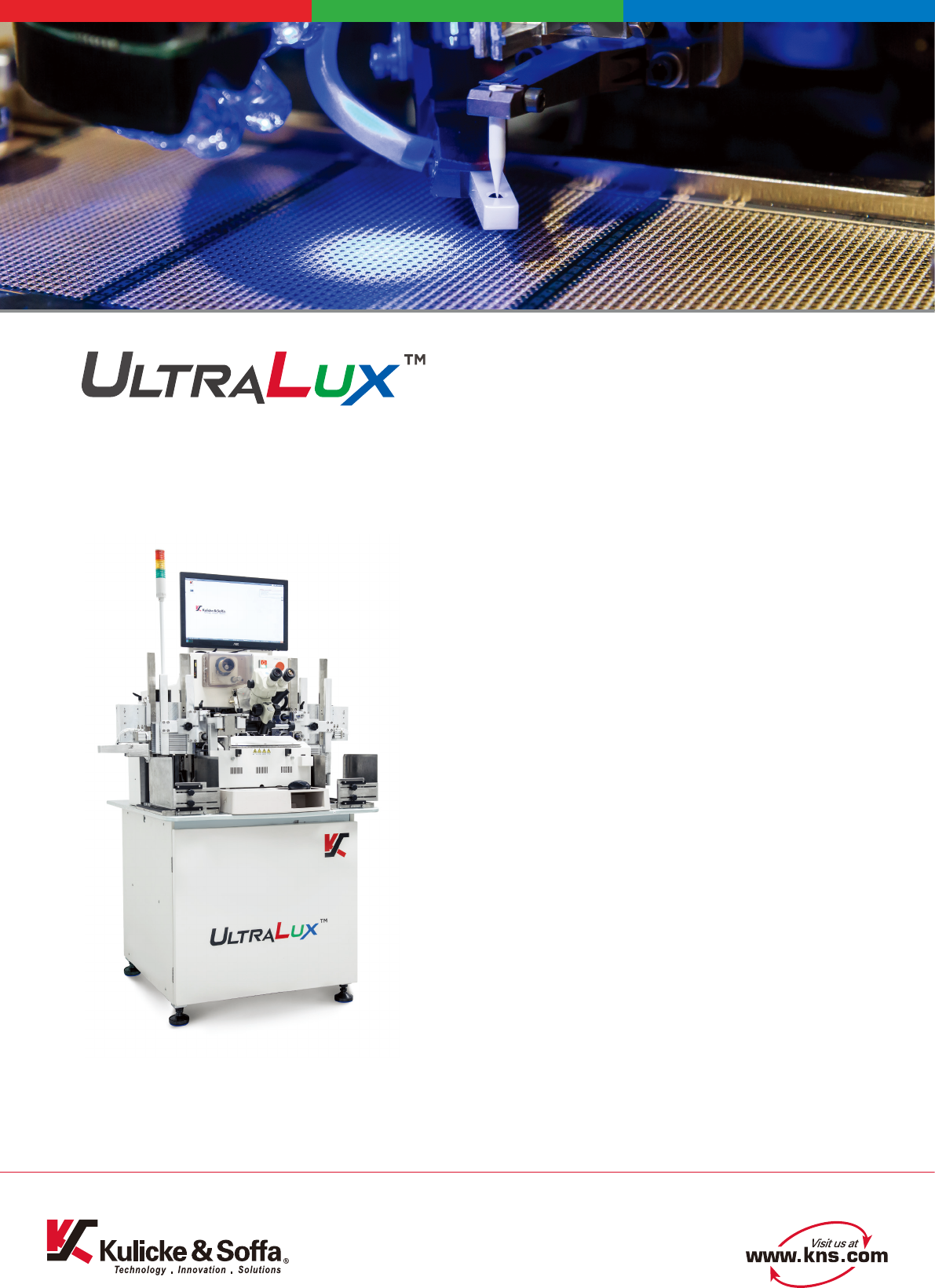

ULTRALUX™ is the latest generation ball bonder utilizing the
latest technologies and materials that will save LED
manufacturers up to 10% capital cost.
Automatic Wire Bonder
Higher UPH
• Advanced Close-Loop Servo with Lower Mass Higher
Stiffness XYZ enhanced design
• Robust compact Optics design with Smaller Crosshair
Offset maximizes Look Ahead PRS Alignment Scheme
Higher Net Productivity with Highest Yield
• Enhanced Automatic Error recovery to SHTL, NSOP and
NSOL
• Superior Looping Control and Shape for high-reliability
Fastest Qualification Time
• Quick LED Suite processes with Quick Bond, Quick
Stitch and Quick Loop deliver the optimized process
ensuring quickest time to market
* Microscope Assembly is an
optional configuration
WIRE BONDING CAPABILITY
Bonding Area
X Axis: 56 mm
Y Axis: 80 mm
Total Bond Placement Accuracy
3.0 μm @ 3 sigma
Speed
25 wires per second
(2 mm wire length)
Pattern Recognition/Optics/Vision
Progressive Scan Vision Engine
CCD Video Camera
3.5x Magnification Optics
LOOPING CAPABILITY (with 25.4 μm wire diameter)
Maximum Wire Length
5 mm
Minimum Loop Height
65 μm Quick Loop-LED supports for flexible loop shapes
for improved reliability
Wire Sway
Wire length < 2.54 mm: 25 μm @ 3 sigma
Wire length > 2.54 mm: ± 1 % wire length @ 3 sigma
CONVERSION TIMES
Same Leadframe Type: < 5 min
(Heat block insert & clamp changes, program load from disk)
Different Leadframe Type: < 20 min
(Leadframe width & length changes, magazine size change,
heat block insert & clamp change, program load from disk)
MATERIAL HANDLING CAPABILITY
Package/Leadframe Dimensions
Length: 100 to 300 mm
Width: 35 to 90 mm
Thickness: 0.10 to 0.9 mm
Die Pad Downset: Up to 2.3 mm
Magazine Dmensions
Width: 35 to 98 mm
Length: 127 to 310 mm
Height: 54 to 194 mm
Slot Pitch: 2.5 to 25 mm
Max. Weight: 4.0 kg
KNET PLUS ASSEMBLY EQUIPMENT NETWORK
KNet PLUS improves efficiency and productivity, by monitoring equipment
status in real-time. It collects data and controls process programs locally or
from anywhere on a customer’s network. Contact your K&S Sales
Representative to learn more.
MAN-MACHINE INTERFACE
Monitor
19” color LCD display
Durable Control Panel
Function keys and dedicated buttons, and user-friendly mouse
Industry-Recognized User Interface
Simple pull-down menus. Color-overlays of wire groups for easy
programming and teach
FACILITY REQUIREMENTS
Minimum Air Pressure
3.52 kg/sq cm (50 psi)
Nominal Air Consumption (flow rate)
150 liters/min @ 4.6 kg/sq cm (6.5 CFM @ 65 psi)
Input Voltage
Standard
200 - 240 VAC; -15 % to + 10%
Single Phase 50/60 Hz (± 3 Hz)
Optional
100 - 115 VAC; -15 % to + 10%
Single Phase 50/60 Hz (± 3 Hz)
Power Consumption
1.3 KVA (nominal), 2.0 KVA (max.)
Footprint
Base machine with MHS
889 mm wide x 990 mm deep (35” x 39”)
Weight (estimated)
Machine 556 kg (1226 lbs)
Machine & Crate 670 kg (1477 lbs)
For more information, contact your local authorized K&S sales representative or visit www.kns.com
© 2020 Kulicke & Soa Industries Inc. All specications subject to change without notice.
Trademarks used herein are the property of Kulicke & Soa Industries, Inc. or their respective owners.
BB-037-04/2020
