10 WF 2 TX-Series V2 Maintenance Clean the stationary camera (CPP/ TH) 1 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n…
10 WF 2 TX-Series V2 Maintenance Clean the stationary camera (CPP/ TH) 1 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C2
www.asm-smt.com
1 Move all gantries to the end limit. 2 Remove the reject bin. 3 Take off the upper section of the station-
ary camera.
4 Remove any components. 5 Clean the slanted glass. 6 Refit the upper section of the camera.
10 WF 2 TX-Series V2 Maintenance Clean the stationary camera (CPP/ TH) 1 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C2
www.asm-smt.com

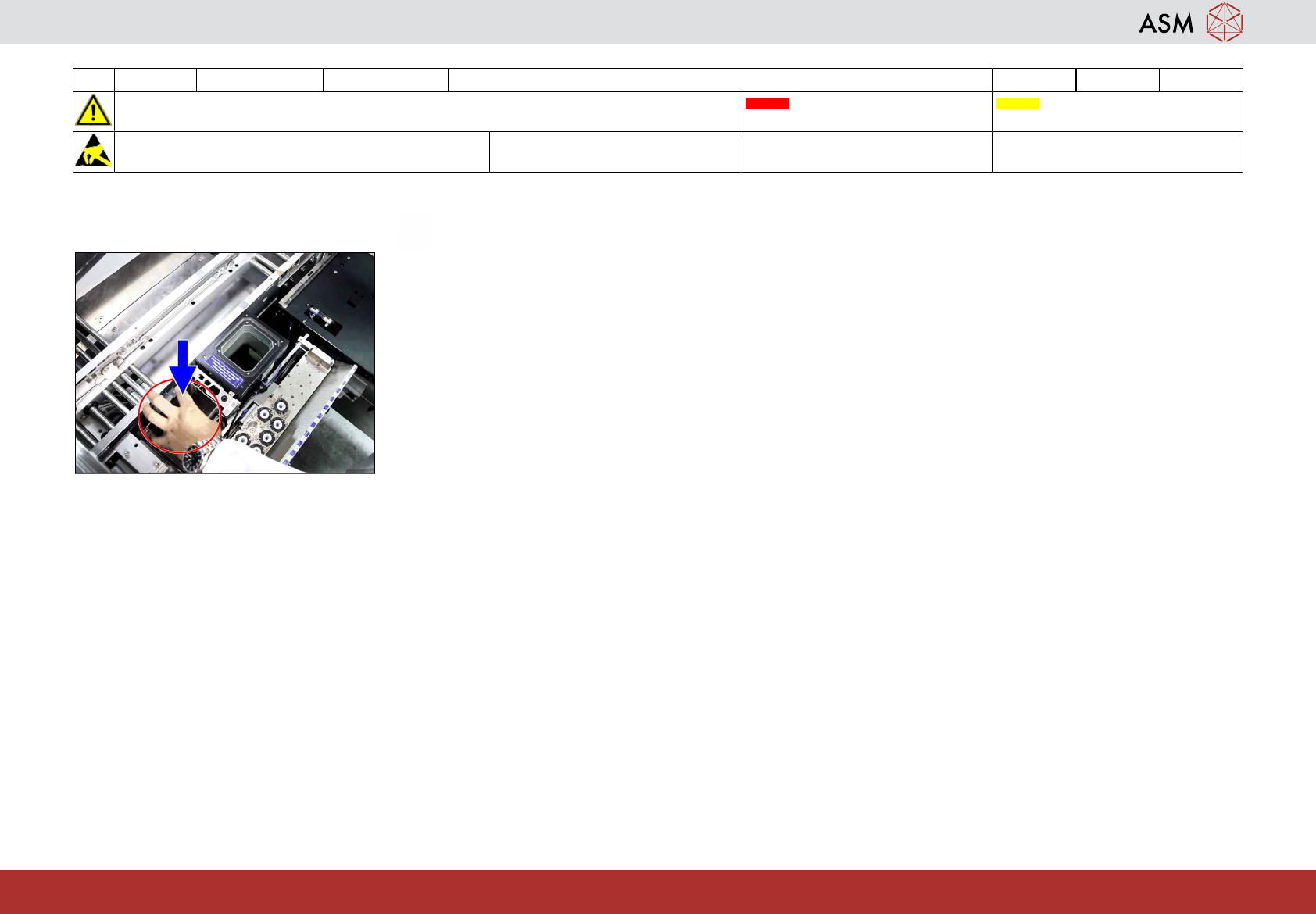

7 Return the component reject bin.
11 WF 2 TX-Series V2 Maintenance Clean the feeder modules and cut the tapes 0.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T1, T18
Wear Part: Consumables:
www.asm-smt.com
1 Vacuum all loose components from the
feeder modules.
2 Cut the remaining tapes at the feeder. 3 Ensure to leave 2 holes overlap when cut-
ting.
4 Repeat steps 1-3 at all feeder tables.
