Gener al Design Co axial Pr obe Family HF77 Pitch [mm/mil] 7 .5/295    Electrical specific ations          …

100%1 / 2
General
Design Coaxial Probe
Family HF77
Pitch [mm/mil] 7.5/295
 
Electrical specifications
 
 
 
 
Inner contact specifications
 
 
 
 
Mechanical specifications
 
 
 
 
Connection type (flux-proof) Connection Element
 
Dimensions
 
 
 
 
 
 
Materials & surfaces
 
 
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material High-grade steel
Spring plating Uncoated
Plunger material 2 Beryllium copper
Plunger plating 2 Gold
Spring material 2 Spring steel
Spring plating 2 Gold
Accessories
 
 

Radio Frequency Probes

Order code 1105444
Family drawing



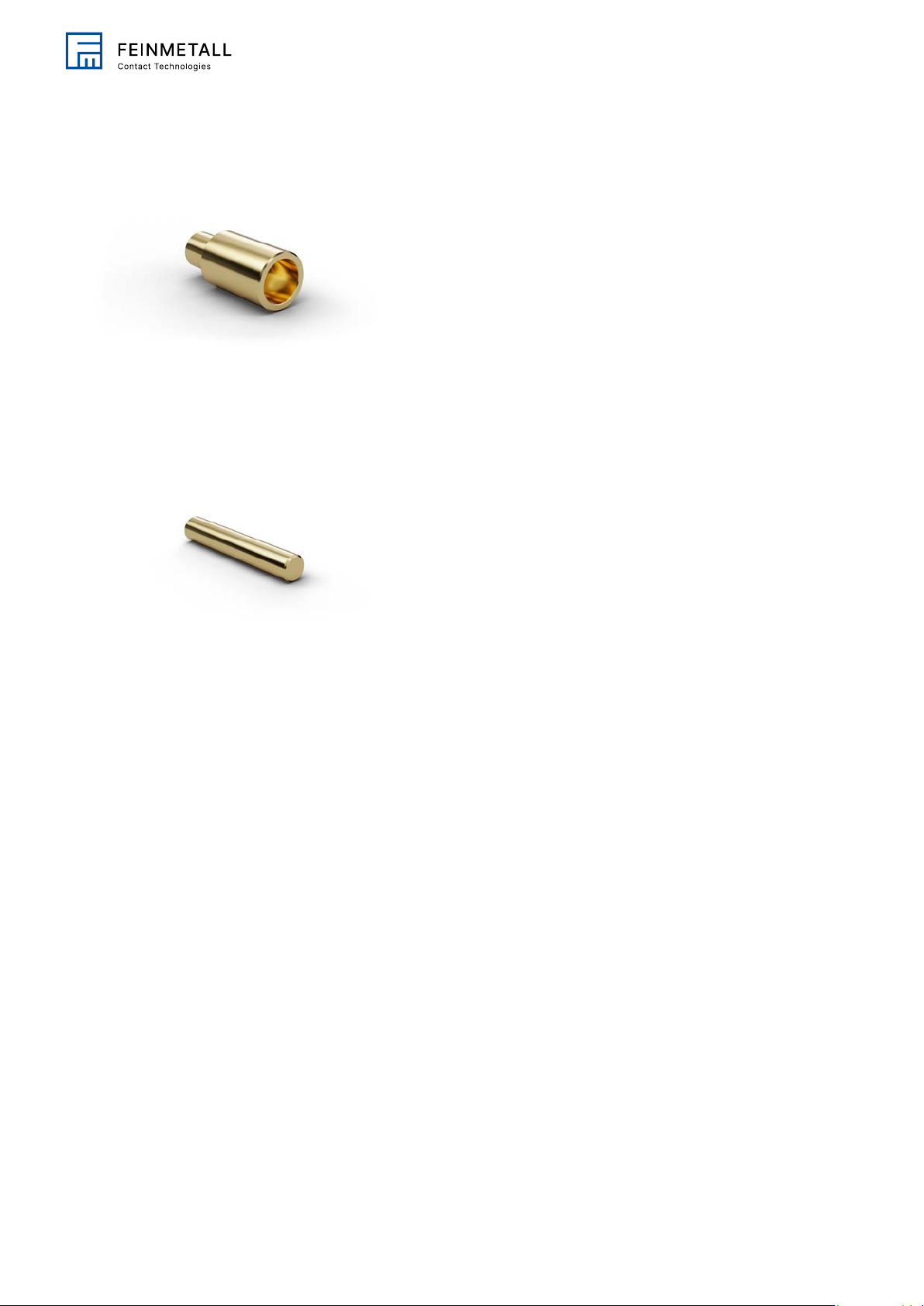

Tip style 1
Tip style 2

