nordsondage.com | +44 1296 317800

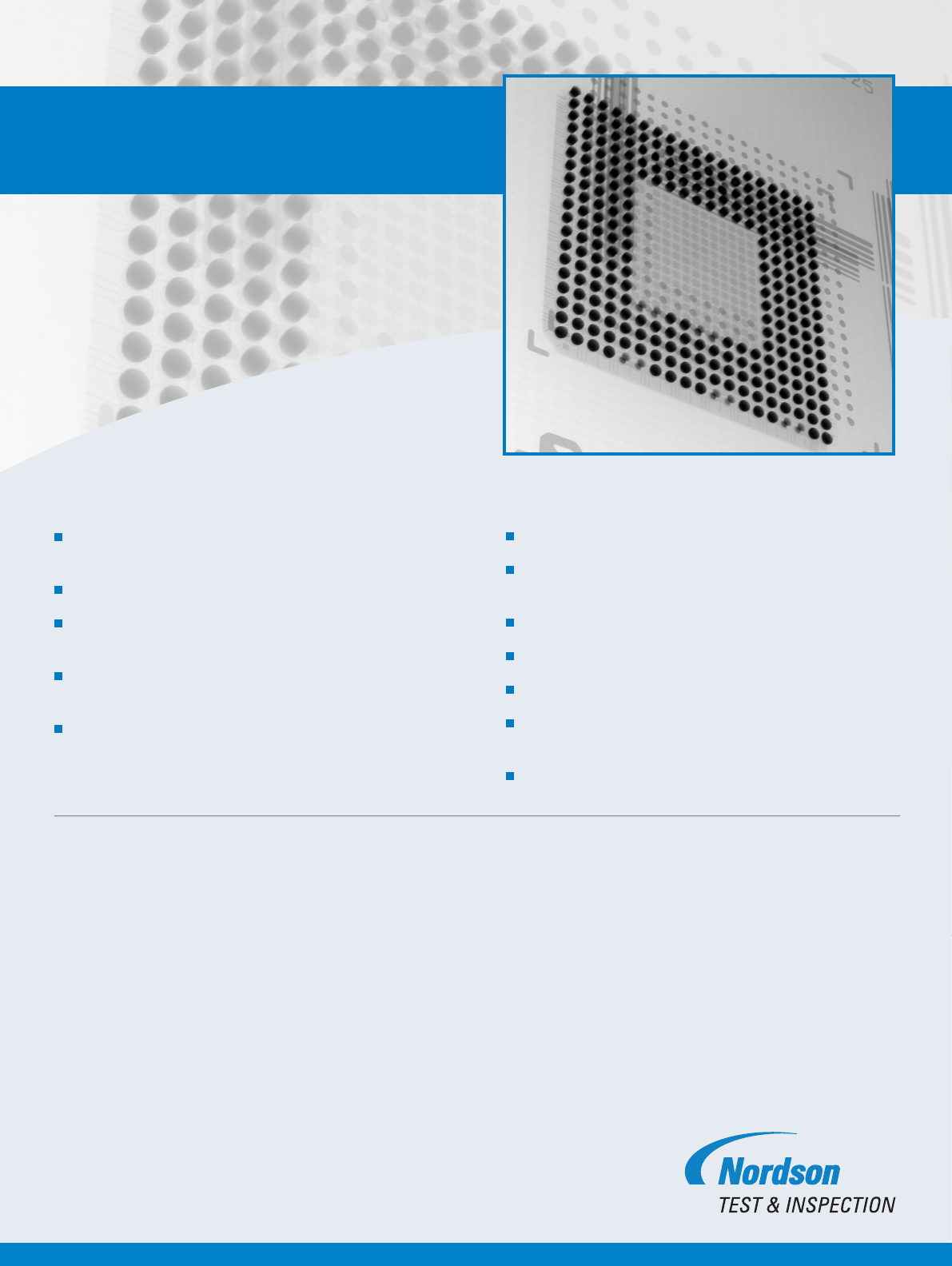

BGA with Open Joints
XD7800NT Ruby XL X-ray Inspection System
Advantages
DAGE NT500 Maintenance-Free, Sealed-Transmissive
X-ray Tube
< 0.5 μm Feature Recognition
160 kV Tube with Up to 10 W Target Power - Always Retains
Sub-Micron Ability
DAGE 3 Mpixel @ 25fps Long Lifetime CMOS Flat Panel
Detector with Real Time Image Enhancements
Geometric Magnification 1,800 X, System 7,800 X
for Total 23,400 X with Digital Zoom
DAGE, the only x-ray company whose focus is on x-ray
electronics inspection, oers the DAGE XD7800NT Ruby XL
x-ray inspection system as the DAGE NT maintenance-free,
sealed-transmissive x-ray tube, providing 0.5 μm feature
recognition and up to 10 W of target power, together
with the 3 Mpixel long lifetime CMOS flat panel detector
makes this jewel of a system cover all the failure analysis
and manufacturing tasks required in the production
environment.
The vertical system configuration, with the x-ray tube
sitting below the isocentric ‘move and tilt’ of the detector,
The Solution for Large
Board Applications
all controlled through simple, joystick-free, ‘point
and click’ operation, provides the safe, collision-
free and high magnification inspection required for
production applications. All these tasks can be simply
and quickly automated from within the DAGE Image
Wizard soware without the need for programming
skills. Optional upgrades include X-Plane™ and
joystick control.
Crystal Clear X-ray Inspection. DAGE.
33” x 24.2” (840 x 615mm) Tray Size
47” x 26.4” (1205 x 672 mm) Maximum Board Size with
reduced Magnification
70° Oblique Views without Loss of Magnification
Two 24” TFT LCD Monitors
AXiS - Active X-ray Image Stabilization
No Programming Skills Required for Automated
Inspection Tasks
Options: X-Plane®; Joysticks
www.nordson.com
For more information,
speak with your Nordson
representative or contact
your Nordson regional oice
Americas
+ 1 760 930 3307
sales@nordsondage.com
Europe
+44 1296 317800
globalsales@nordsondage.com
China
+86 512 6665 2008
sales.ch@nordsondage.com
Germany
+49 89 2000 338 270
sales.de@nordsondage.com
Japan
+81 120 537 555
sales.jp@nordsondage.com
Korea
+82 31 462 9642
korea.at.cs@nordson.com
South East Asia
+65 6552 7533
sales.sg@nordsondage.com
Taiwan
+886 2 2902 1860
globalsales@nordsondage.com
United Kingdom
+44 1296 317800
globalsales@nordsondage.com
XD7800NT Ruby XL X-ray Inspection System
Specifications
• DAGE NT500 sealed-transmissive, filament-free x-ray tube:
– < 0.5 μm feature recognition 30 - 160 kV for < 4 W target power
– < 0.95 μm feature recognition when above 4 W target power
– 10 W max. target power above 110 kV
– automated tube stabilisation
• 1,800 X geometric magnification (7,800 X system magnification)
• 23,400 X total magnification including digital zoom
• Easy, collision-free, high magnification inspection:
– even at oblique angle views
– joystick-free, ‘point and click’ operation
• Tray size: 33” x 24.2” (840 x 615mm)
• Maximum board size: 47” x 26.4” (1205 x 672 mm) with reduced magnification
*Please refer to Dage for clarification for larger boards
• Maximum inspection area: 33” x 24.2” (840 x 615mm)
• 70° oblique angle views (over 30” x 24”, 762 x 610 mm):
– for 360° around a point of interest
– isocentric manipulator configuration keeps features in field of view
•
Long Lifetime CMOS digital detector with 1940 x 1530 pixels (3 Mpixels)
– 25 fps full-frame ‘real time’ image acquisition
– real time image enhancements
• 16-bit digital image processing
• AXiS - Active X-ray Image Stabilisation - anti-vibration control
• Two o 24” TFT LCD operator display monitors
• DAGE Image Wizard operating soware including:
– automated and manual component fault analysis including BGA & QFN
– simple to create and use robust automated inspection routines
– plated through hole (PTH) fill percentage calculation
– accurate measurement functions
– automated and manual die attach / area void calculation
– patented
1
X-ray navigation map for easy fault location
– simple to use, no complicated joysticks required
• Fully lead-shielded system safety cabinet
– providing < 1 μSv/hr x-ray leakage
– meets all international standards
• 1 years system warranty
Options
• Patented X-Plane®
2
• Joystick control (X,Y or X,Y & Z)
• Barcode reader
• 2nd Year warranty
System
• Approximate Size: 94.5” x 98.5” x 81.5” (w x d x h)
• Approximate Size: 2400 x 2500 x 2070 mm (w x d x h)
• Approximate System Weight: 3000 kg (6600 lbs)
• Maximum Sample Weight: 10 kg (22 lbs)
• Power: Single Phase 200 - 230Vac, 16A
• Max. Power Consumption: 1000 W Max.
• Air: 4-6 bar of clean dry air for anti-vibration
• Operating Temp. Range: 10 - 30
º
C
• Humidity: < 85% (non-condensing)
1 EP 2063261 2 US 9129427
