Semi Pack Curing SMT Reflow Aurora systems feature a modern, fully updated user interface, integrated Aqua Scrub™ flux management technology, innovative Smart Power energy savings software, and advanced process control te…
Semi Pack
Curing
SMT Reflow

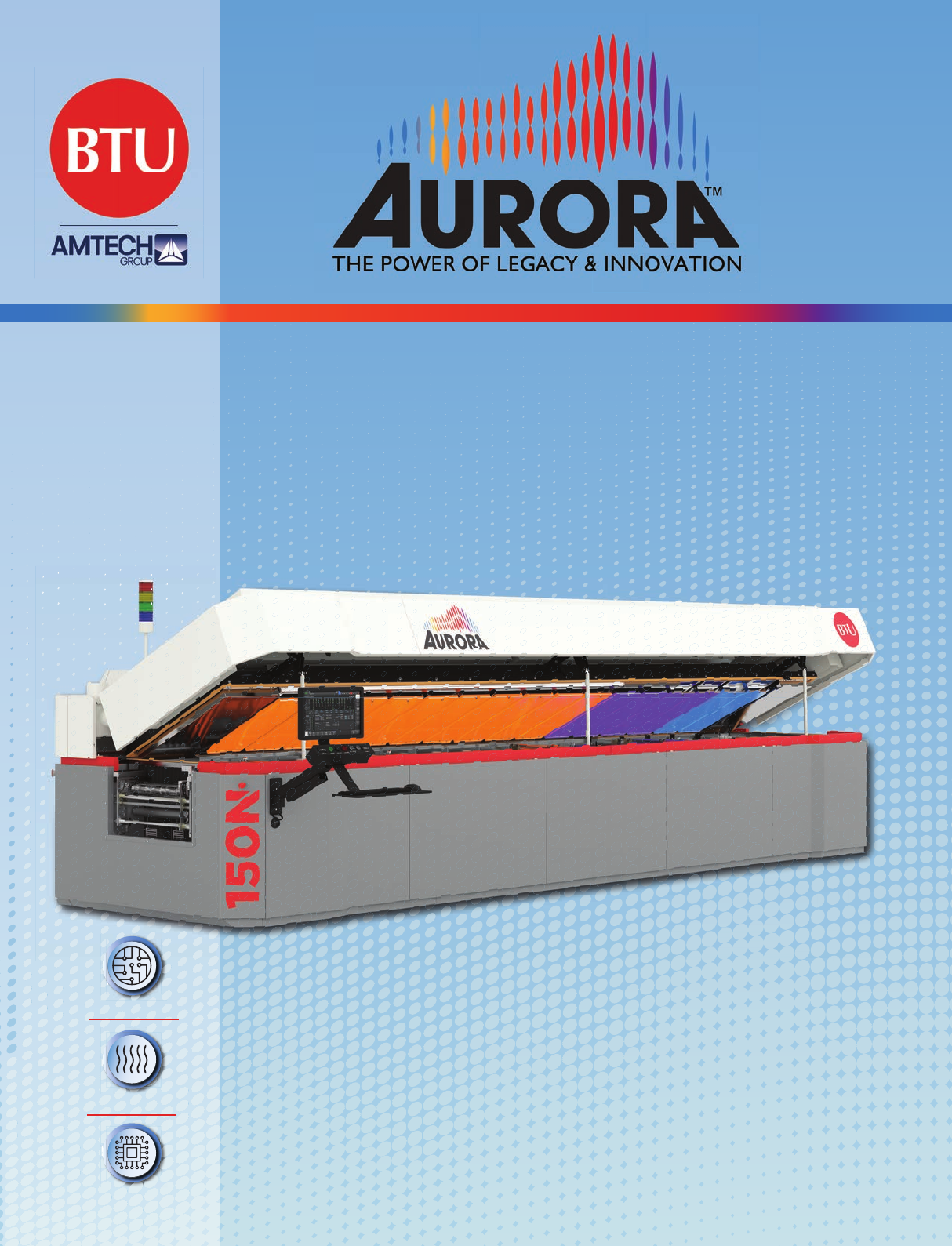

Aurora systems feature a modern, fully updated user interface, integrated Aqua
Scrub™ flux management technology, innovative Smart Power energy savings
software, and advanced process control technolo gies. Aurora’s combination of
superior thermal performance, process flexibility, and vision for the future sets the
new standard for reflow ovens today - and for tomorrow.
REFLOW IN A NEW LIGHT
Aurora is leading the way to the factory of the future by seeing reflow in a new
light. Aurora, the newest reflow oven platform, from BTU is designed based on
years of expertise and leadership from the makers of the industry’s best performing
reflow ovens. As the latest in a long line of world-class thermal systems, Aurora
has quality and innovation in its DNA.

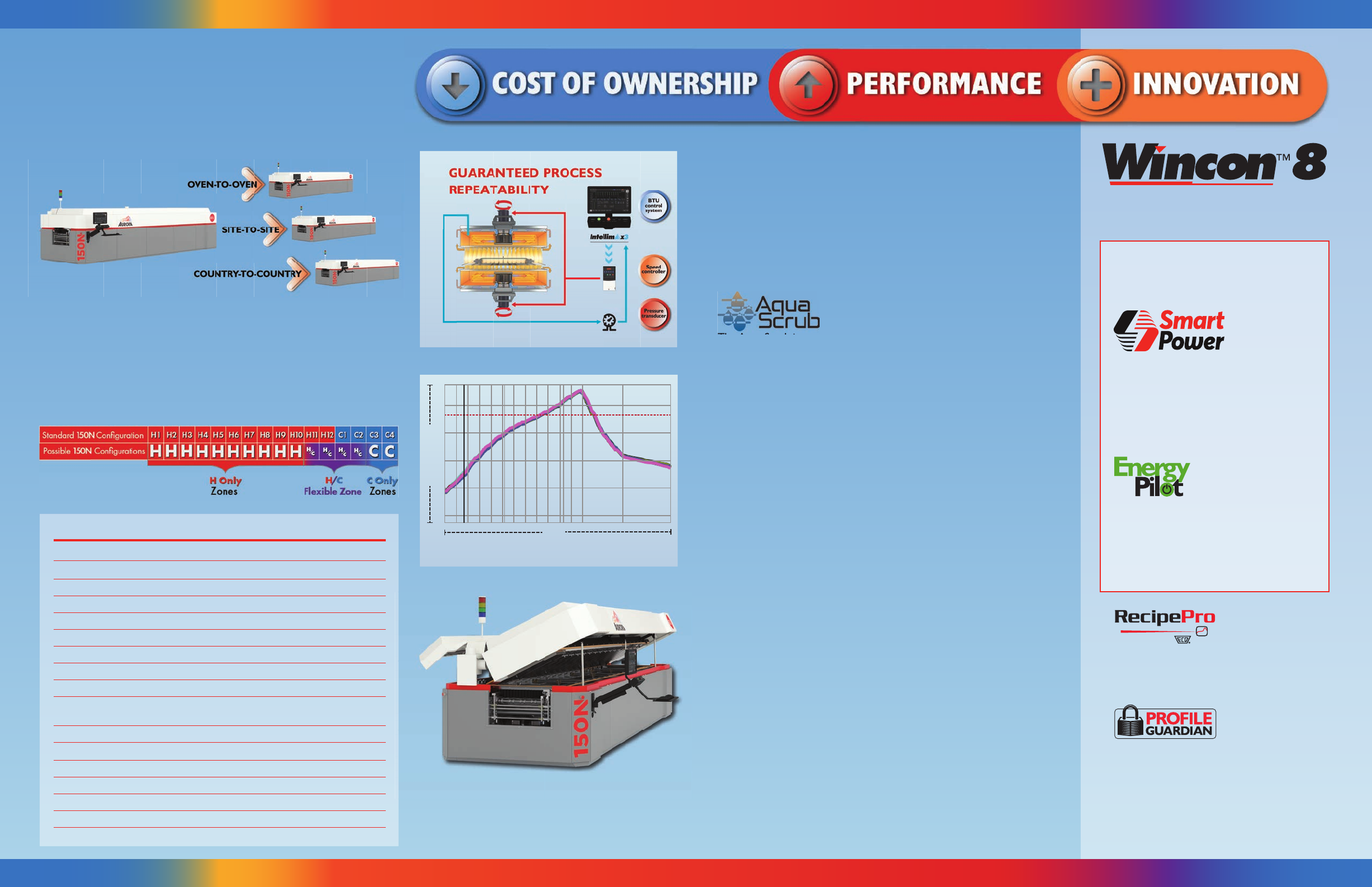

SUPERIOR THERMAL UNIFORMITY
22 23 24 25 26 27 28 29 Z10 Z1 Z12
200
150
100
50
0
TEMPERATURE
TIME
Fully accessible process chamber
MINIMIZED COST OF OWNERSHIP
In the Aurora reflow oven, maintenance access, oven contamination,
input power and process gas usage have all been improved and optimized
to deliver the absolute minimum in Cost of Ownership.
ï Fully integrated Aqua Scrub flux management system with built-in
waste removal
ï Ease of access for maintenance and repair
ï Smart Power and Energy Pilot software included in the control system
ï Optimized gas flows
FULLY INTEGRATED ADVANCED
FLUX MANAGEMENT SYSTEM
The Aqua Scrub is a proprietary flux management system which employs a
water-based rinse agent to continuously scrub contaminants from the oven
atmosphere. This fully automatic system works regardless of flux type, and
enables a “hands-off” approach to oven maintenance.
ADVANCED CONVEYOR OPTIONS
ï Up to 5 movable rails
ï Dual lane, dual speed
ï Dual center support engagement system
ï Chain return path within rail for less power consumption
ï Single platform to improve configurability and common parts
ï Wider board capabilities
• 620 mm (24.4”) single lane
• 305 mm (12”) per lane/dual lane
ï 80 mm total product clearance
WINCON 8
Aurora utilizes an updated SEMI E95 style interface to manage the industry’s
most powerful oven control system. The dynamic combination of Wincon
8 with the Aurora family of reflow ovens incorporates proprietary software
developed to streamline thermal performance leading to shorter start-up
cycles, decreased maintenance costs and lower down-time. Using light or
dark mode and customizable email and/or SMS text notifications highlight
the intuitive and user-friendly software updates.
CUSTOMER SERVICE AND WARRANTY
BTU’s quality products are backed by its Industry leading
comprehensive warranty.
ï Lifetime on heaters and blowers
ï 3 years system
ï 1 year labor
To enhance uptime the Aurora platform is supported by BTU’s
24-hour, 7-Day Worldwide customer support, and electronic
user documentation.
ï Automatically reduces reflow oven
operating costs
ï Takes advantage of idle time
ï Quick recovery using SMEMA or
remote sensor
ï Automatic recipe generator
ï Reduces oven set-up time
ï Exclusive convection rate algorithm
ï Redundant process monitor
ï Enables product traceability when used
with a bar-code reader
ï Fully integrated with MES/factory
communication
The Aqua Scrub is a proprietary flux management system which employs a
POWERED BY
SUPERIOR THERMAL UNIFORMITY
BTU’s exclusive Closed Loop Convection Control provides maximum
flexibility in process control.
ï Side-to-side recirculation enhances temperature uniformity
ï Guaranteed process repeatability, system-to-system, site-to-site,
country-to-country
ï Unmatched convection efficiency reduces zone temperature set-points.
CONFIGURABLE HEATING AND COOLING ZONES
The Aurora has a first of its kind feature whereby customers can configure
additional heating and cooling zones at the time of order – allowing for slower
cooling ramp rates, or more throughput for lighter products. This allows
customers to solve critical process or productivity issues within the same
footprint of the original Aurora design.
ï Convert heating to cooling zones and vice versa
ï Configured at time of order in two zone increments
Specifications
Maximum temperature rating: 350˚C
Nominal operating temperature: 80-350˚C
Number of controlled heated zones: 12 top 12 bottom
Number of cooling zones: 4 top 3 bottom
Oven atmosphere: N
2
AURORA 150N
Dimensions: Inches Millimeters
Conveyor width 24.4 620
Product clearance 3.15 80
Heating zone length (x12) 12.44 316
Cooling zone length (x4) 12.44 316
Total heated length 149.28 3792
Total cooling length 49.76 1264
Total system length 255.5 6490
Total system width 71.7 1820
Total system height 62.8 1595
(assumes 36” hearth line)
EXCLUSIVE ENERGY
SAVING SOFTWARE
THE INDUSTRY’S MOST
POWERFUL OVEN CONTROL SYSTEM
ï Reduces peak power usage allowing for
lower connected load
ï Optimizes power use automatically within
an overall given %
ï Allows for fastest start-up/response while
total power is limited
