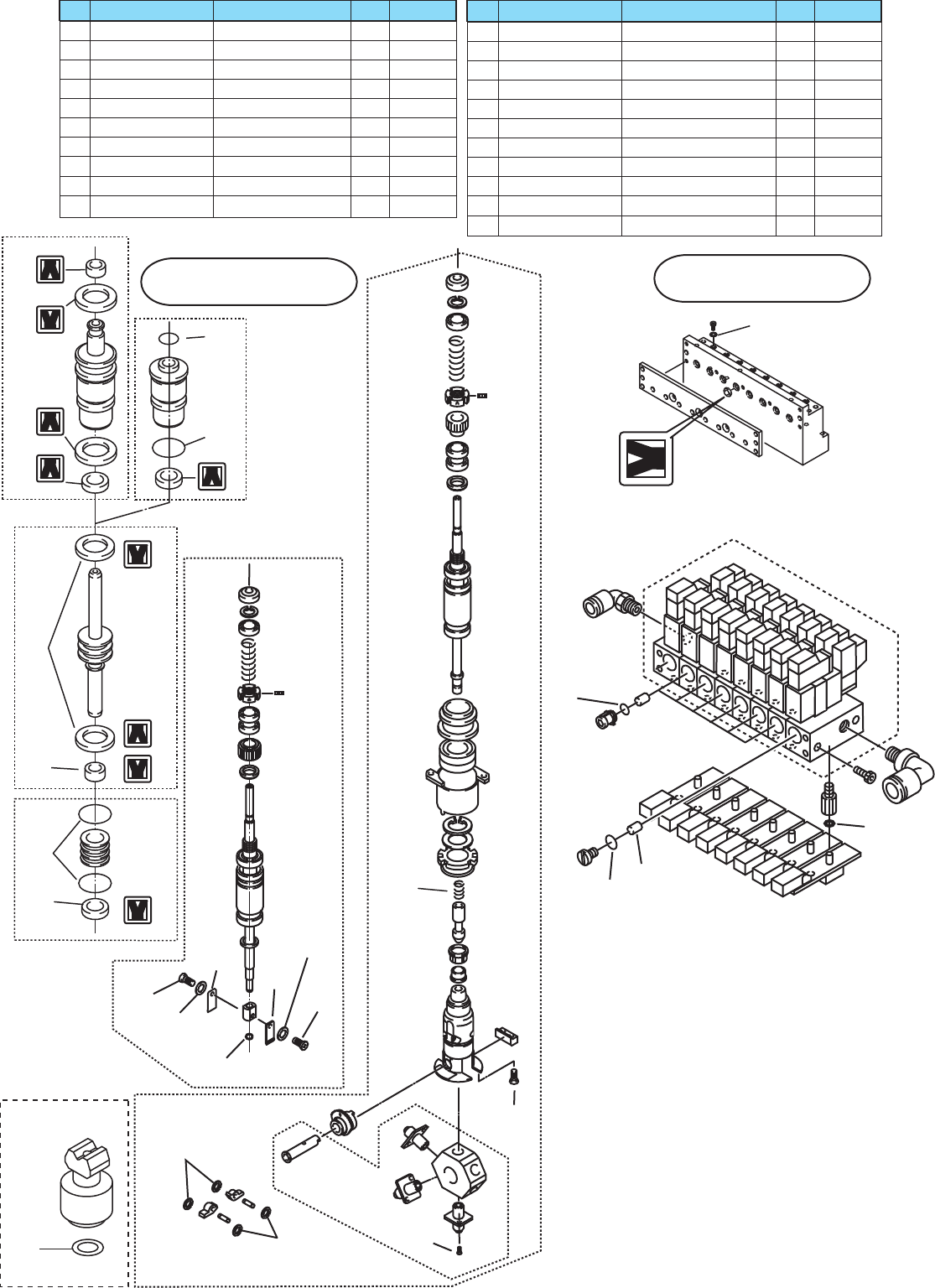

Yパッキンの方向に注意 Caution Y-packing direction Yパッキンの方向に注意 Caution Y-packing direction No. 1 2 3 4 5 6 7 8 9 10 Qty 20 8 12 2 6 4 4 20 16 8 Note Part No. 90200-01J125 90200-10J030 90990-17J007 90990-17J008 90990-17J010 90990-17…
Yパッキンの方向に注意
Caution Y-packing direction
Yパッキンの方向に注意
Caution Y-packing direction
No.
1
2
3
4
5
6
7
8
9
10
Qty
20
8
12
2
6
4
4
20
16
8
NotePart No.
90200-01J125
90200-10J030
90990-17J007
90990-17J008
90990-17J010
90990-17J081
90990-22J001
90990-22J002
90990-22J003
90990-22J005
Part Name
O-RING
O-RING
O-RING
O-RING
O-RING
O-RING
PACKING
PACKING
PACKING
PACKING
No.
11
12
13
14
15
16
17
18
19
20
21
Qty
8
4
8
8
8
8
8
24
24
4
4
NotePart No.
90990-22J006
90990-22J015
90990-28J002
K46-M8527-C0
KG7-M7137-A0
90990-08J024
90990-09J004
90990-08J012
90440-10J008
90990-17J003
KV8-M71X1-00
Part Name
PACKING
PACKING
WASHER PLAIN
FILTER
LEAF SPRING
SCREW,PAN HEAD
SCREW,FLAT HEAD
SCREW,PAN HEAD
CIRCLIP
O-RING
SPG, LOCATE
7
10
14
4
5
1
3
9
8
12
7
1
9
9
8
11
15
15
16
16
13
13
19
19
17
18
2
20
YV100X(XT)-F, YV180X-F : KV8-M715H-00 MAINTE. PARTS SET
