Main standard features □ PowerSpray ® technology bundle: magnetically coupled XXL-Power (tank A) and X-Power (tank B/C) pump units, fourfold ASYNCHRO ® volume-spray rotor system, "Option100" softwareprogram (10…

Most suitableOptional suitable Optional suitable Not suitable Not suitable

Cleaning (key process 1): From the cleaning tank (A) the cleaner liquid is sucked by a magnetically coupled pump unit and

routed with a controllable volume flow through a separate circuit into the ASYNCHRO

spray rotor nozzles. Their geometry

ensures a comprehensive and thorough cleaning, even in inaccessible and critical aereas. After the washing procedure, the

valve switchover of the process chamber undocks the cleaning circuit until the next process run.

MediumWipe

(intermediate process): The remaining cleaner is blown off from the clean products and blown out of the clea-

ner circuit and recirculated into the cleaning tank before the valve switchover closes.

Rinsing with tap water (key process 2): From the rinsing tank (tank B) the water is pumped through the separate second cir-

cuit into the spray rotors. Tap water has (compared to DI / DM water) the advantage of lower surface tension and thus flushes

also critical points as low standoffs and appertures more efficient.

MediumWipe

(intermediate process): The remaining water is blown off from the products and blown out of the cleaner circuit

and recirculated into the rinsing tank.

Final rinsing with DI / DM water (optional process): The DI / DM water is produced from tap water in an integrated

MB-cartridge and flushes conducting ions of the previous processes. This process is repeated automatically until the remai-

ning amount of ions falls below the programmed value.

MediumWipe

(optional intermediate process): Blowing off and recirculating the remaining DI / DM water into the rinsing tank.

Drying (key process 3): The purified products are dried with the patented CWA

(Compressed Warm Air) technology. The

built-in special compressor compresses the ambient air. At the same time it collects the kinetic energy (frictional heat) of the

paddle wheel in the unit, then presses the heated and compressed air into the rotor nozzles which were already used for

cleaning and rinsing. There it blows off (pressure) and evaporates (heat) the residual moisture. This method is energetically

and constructively highly efficient, as it uses the "waste heat" of the compressor rotation and the compressed air as driving

power for the rotors. In addition, a system equipped with CWA

technology requires no additional hardware and no external

compressed air connection for the MediumWipe

process.

Maintenance: The system has a large maintenance door on the right side. In the maintenance area among others are the

pump-out set, the optional re-dosage unit with space for a 25 liter detergent and a 5 l additive container as well as the MB

cartridge for DI / DM water processing. Tank levels as well as pressure values and maintenance cycles are monitored by the

PLC and displayed on the touch screen.

Page 2 of 4

Part number: 0905PSE8MV12

Fully automatic twotank economy system with two separate

circuits and fourfold ASYNCHRO

rotor system

11/21

PSE MV8 TWIN

Made in Germany

CLEANING TECHNOLOGY

kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com

Application overview

Assembled PCBs

Hybrids

Misprints

Stencils

Screens, PumpPrints

Misprints

Solder frames

Solder carriers

Solder masks

ESD Boxes

Containers

Magazines

Condensation traps

Filters

Steel sheets

Optional suitable applications can also be optimally realized with the appropriate options.

All rights for changes reserved that lead to technical improvement. © kolb GmbH 2021

Main standard features

□ PowerSpray

technology bundle: magnetically coupled XXL-Power (tank A) and X-Power (tank B/C) pump units, fourfold

ASYNCHRO

volume-spray rotor system, "Option100" softwareprogram (100 freely selectable programs)

□ EATON Programmable Logic Controller (PLC)

□ High resolution 7" (1,024 x 600 mm) display with capacitative multi-touch

□ Full flow coarse filter (process chamber)

□ Sediment filter for cleaning tank (A)

□ MediumWipe

unit for further optimization of detergent and rinsing fluid use

□ CWA

supercharger compression drying

□ ClosedLoop reprocessing of cleaning and rinsing fluids

□ Spare space for DI / DM water processing cartridge

□ Safety features: safety interlock on the process chamber door, overflow alarm for all tank sections, overheating protection for

all heating and drying elements, end switches for all motor-driven valves and drives, personnel protection insulation

□ Machine body made of stainless steel

□ Process sections made of electrolysis resistant elements

Main options

□ Adjustable DI / DM water mixing and blending unit

□ Automatic re-dosage unit for 25 l detergent and 5 l additive container

□ Descaling unit to reduce the lime content in the rinsing water

□ Drip & storage reservoir

□ Exchange for rinse water and pump out unit

□ Exhaust unit

□ Heater for tank A (cleaning)

□ Noise insulation

□ MB / DI cartridge for deionized (DI) and demineralized (DM) water

□ Remote Control (remote monitoring, mailing, etc.)

□ Status light fivefold to display the current process state

□ Traceability "Basic" (SPC data scanner, data backup in CSV file, backup via SD card via slot in the PLC)

□ XL-Power pump unit for tank B/C

Page 3 of 4

Part number: 0905PSE8MV12

Fully automatic twotank economy system with two separate

circuits and fourfold ASYNCHRO

rotor system

11/21

PSE MV8 TWIN

Made in Germany

CLEANING TECHNOLOGY

kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com

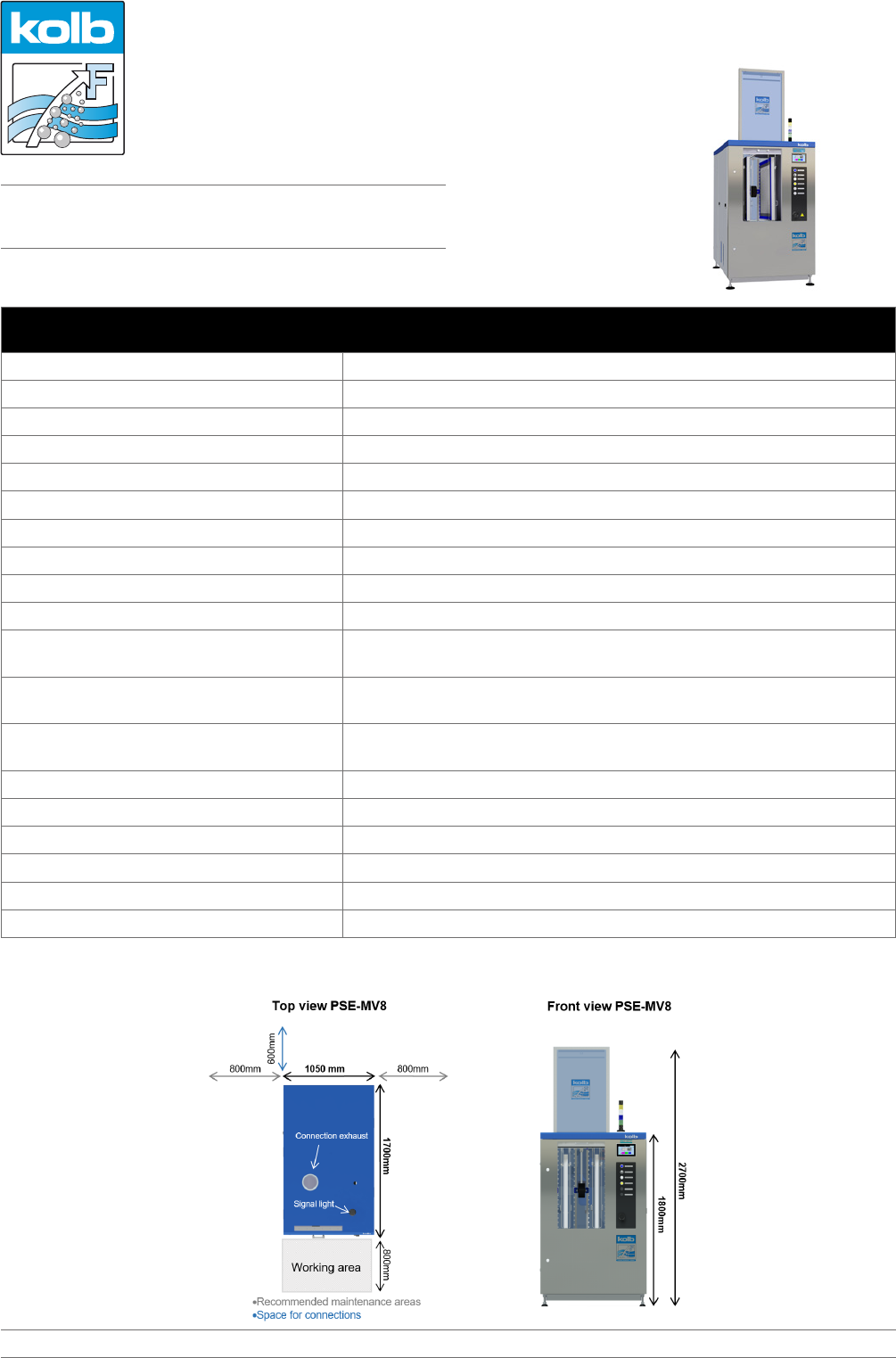

Technical data

Technology base kolb PowerSpray

Capacity per process cycle 2 Stencils, screens, carriers up to 900 x 800 mm (35 "x 32")

Process chamber dimensions W 550 • D 1000 • H 875 mm (W 21.65" • D 39.37" • H 34.45")

Usable chamber dimensions 2 slots: B 50 ▪ T 800 ▪ H 900 mm (W 1.97" • D 31.5" • H 35.43")

Volume tank A (cleaning) 75 l

Volume tank B (rinsing) 75 l

Power supply 400 V AC, 16 A, CEE plug / 3PH / 50 or 60 Hz

Power consumption 4 kW

Control system PLC (K & M)

Temperature load up to 50°C (122 °F)

Filter system

up to three stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter

inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent)

Supply connection 1 (tap water)

connection for 1/2" hose, with 30µm water filter (inlet water

quality: < 350 μS conductance value (< 10° dH) or option descaling unit)

Supply connection 2 (compressed air)

6 - 8 bar (87 - 116 psi) - 100 l / min, connection for 8 mm (0.31") compressed

air hose

Rinse water drain connection (with integrated pump out system) connection for 1" hose

Exhaust connection Ø 160 mm (6.3"), exhaust capacity 200 - 300 m³ / h (7,063 - 10,595 ft³ / h)

Footprint 1,050 x 1,700 mm (51.34" x 66.93")

Operating condition room temperature 20 - 35 °C (68 - 95 °F)

Operating noise 74 dB (A), 70 dB (A) with option insulation

Empty weight 570 kg (1,257 lbs)
