Gener al Design Basic Cont act Pr obe Family HCF7 33 Pitch [mm/mil] 4 .00 / 157 Electrical specific ations T ypical cont act resistance [mOhm] 8. 00 Mecha…

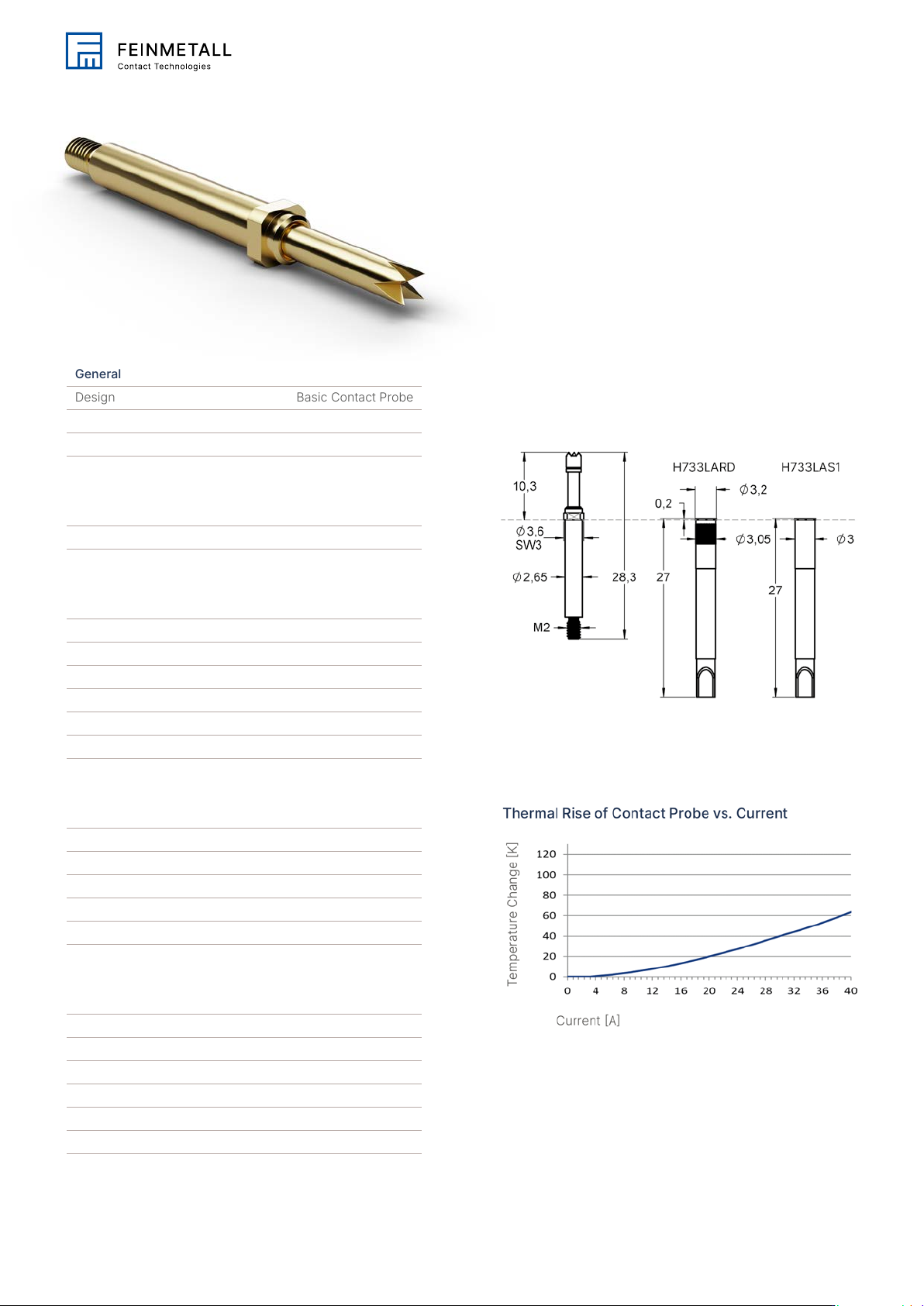

General
Design Basic Contact Probe
Family HCF733
Pitch [mm/mil] 4.00 / 157
Electrical specifications
Typical contact resistance [mOhm] 8.00
Mechanical specifications
Preload [cN] 170.00
Spring force [cN] 600.00
Nominal travel [mm] 4.00
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.10
Tool size [mm] 3.0
Dimensions
Projection height [mm] 10.30
Tip style diameter [mm] 1.80
Collar diameter [mm] 3.60
Press ring diameter [mm] 3.60
Materials & surfaces
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material High-grade steel
Spring plating Uncoated
High Current Probes
Order code 1033286
Family drawing
Accessories

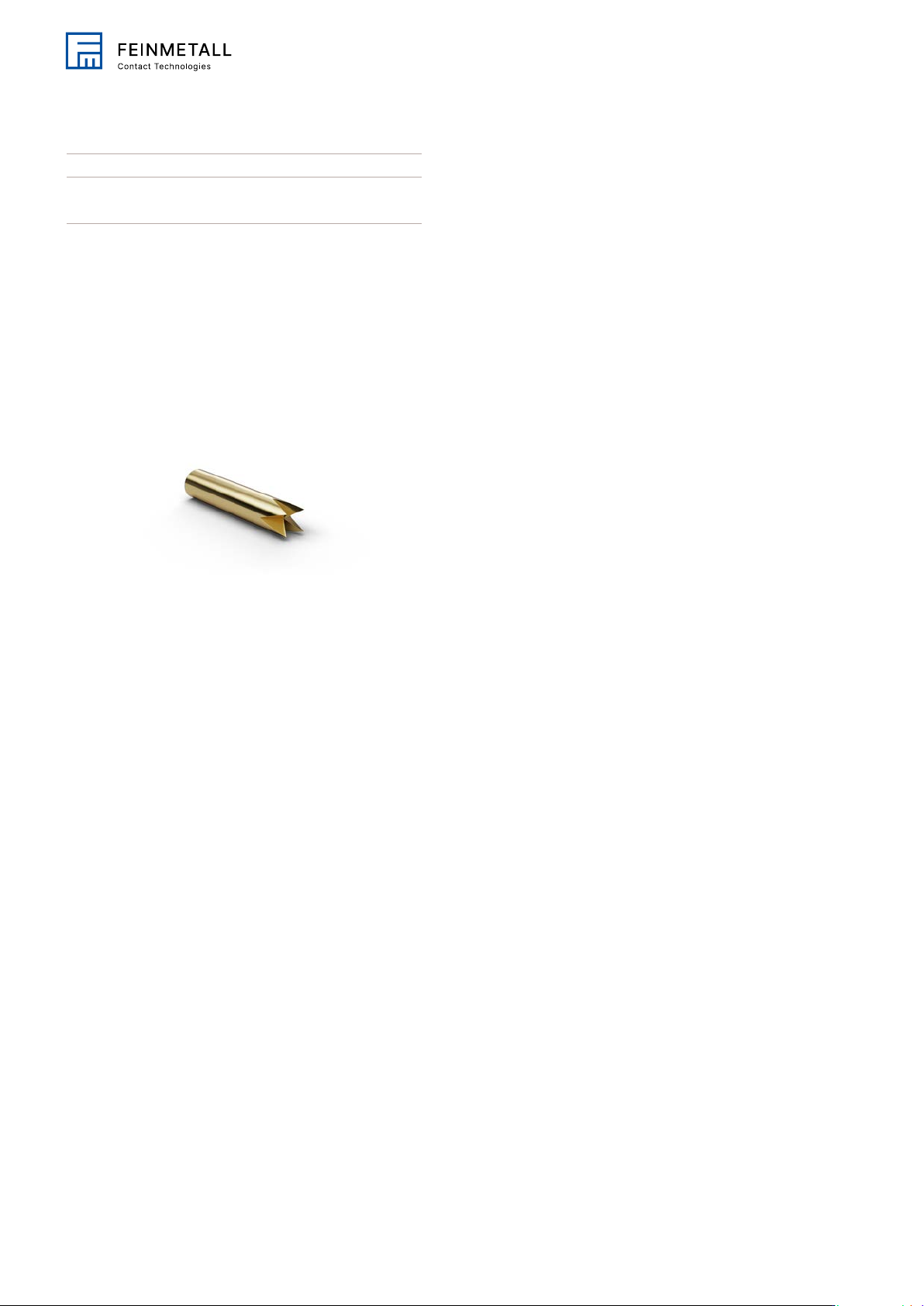

Tip style 1
