Built for Today. Ready for Tomorrow.
Dynamo is the newest reflow oven platform designed specifically for Consumer Electronics. Get
the repeatability and thermal performance you expect from the world leader. Dynamo’s simplified
configuration delivers 24/7, with high uptime and reduced cost of ownership. With 8, 10, and 12
zone air or nitrogen models available, Dynamo represents BTU quality and reliability. Backed by
BTU’s unparalleled worldwide service and applications team, Dynamo is a value-driven workhorse.
Standard Features
• Lead-free process guaranteed
• 350ºC Maximum Temperature
• Smart Product Tracking
(SMEMA)
• Automatic Chain Lubrication
• Wincon Control Software
• Electronic Over-Temperature
Safety System
• Optimized Flux Management
(for N
2
)
• Dynamic N
2
Idle (for N
2
)
• Automatic Gas Sampling
(for N
2
)
Options
• Rail and Belt Conveyors
• Dual Lane Conveyors
• Center Support
• Closed Loop Convection
Control
• Recirculation Water Cooling
• Expandable Flux Management
• CE Certificate
Dynamo Specifications*
Model Dynamo Z8 Dynamo Z10 Dynamo Z12
Atmosphere Air or N
2
Air or N
2
Air or N
2
Conveyor Speed 10-60 in/min 25-152 cm/min 10-60 in/min 25-152 cm/min 10-60 in/min 25-152 cm/min
Conveyor Width 2-18 in 51-457 mm 2-18 in 51-457 mm 2-18 in 51-457 mm
Heated Length 106 in 2700 mm 131 in 3336 mm 156 in 3972 mm
Heated Zones 8 top / bottom 10 top / bottom 12 top / bottom
Cooling Length 49 in 1242 mm (Air) 49 in 1242 mm (Air) 49 in 1242 mm (Air)
38 in 954 mm (N
2
) 38 in 954 mm (N
2
) 38 in 954 mm (N
2
)
Cooling Zones 1 top / bottom (Air) 1 top / bottom (Air) 1 top / bottom (Air)
3 top / bottom (N
2
) 3 top / bottom (N
2
) 3 top / bottom (N
2
)
Overall System Length 205 in 5192 mm 230 in 5828 mm 255 in 6464 mm
Overall System Height 56 in 1411 mm 56 in 1411 mm 56 in 1411 mm
Overall System Width 65.5 in 1660 mm 65.5 in 1660 mm 65.5 in 1660 mm
Voltage Range 208-480 VAC 208-480 VAC 208-480 VAC
*All specifications are subject to change without notice
• Unmatched
Thermal
Performance
• Value
Through
Innovation
• BTU Quality
and
Reliability
© 2012 BTU InTernaTIonal. all rIghTs reserved. revIsIon 2, 2013
Headquarters | United States
BTU International, Inc
23 Esquire Road
North Billerica, MA 01862, USA
T 1-978-667-4111
F 1-978-667-9068
E btuhq@btu.com
Asia Pacific
BTU Shanghai, China
T +86-21-58669098
F +86-21-58669231
E btuasia@btu.com
Europe
BTU Europe Ltd., UK
T +44 (0) 1252 660010
F +44 (0) 1252 660011
E sales@btu.co.uk
Low Cost of Ownership
Dynamo is designed to maximize uptime. Repair times and mainte-
nance times are the lowest in the industry due to the innovative indus-
trial design.
• Unmatched repeatability, eliminating profiling tweaking needs
• Designed with quick release components for ease of maintenance
• Self alert systems; maintenance reminders
Optimized Flux Management
The Optimized Flux Management specially designed for Dynamo
traps flux residue from preheat and reflow zones. The unique
design also allows flux collection from other zones that customers
specify to meet their process requirements.
• Efficient and configurable flux condensation for mass production
• Expandable capacity with location configurable by user
• Minimizes downtime for maintenance

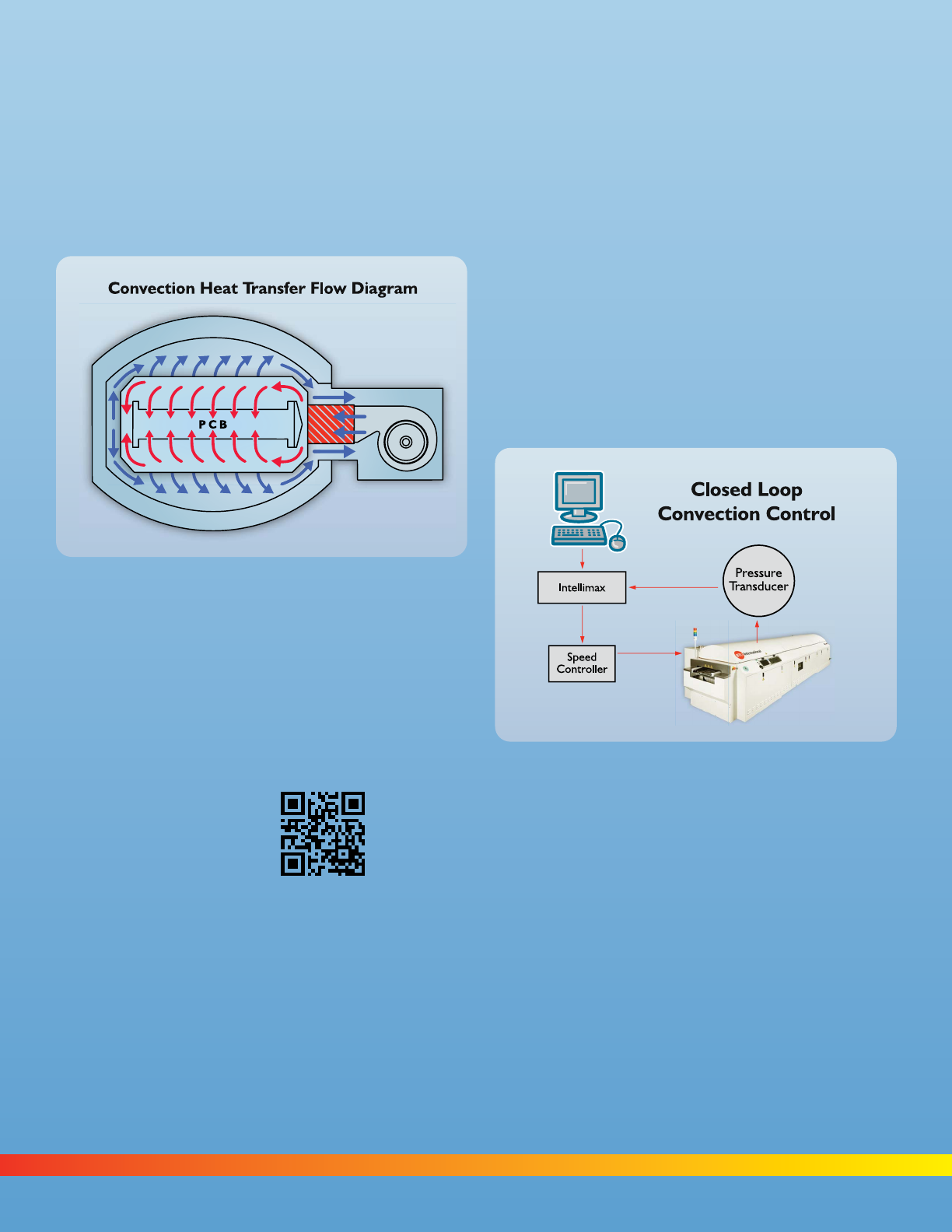

Closed Loop Convection Control
BTU’s exclusive Closed Loop Convection Control provides
complete closed loop process control of your oven combined
with conveyor speed and temperature setpoint.
• Maximum flexibility in process control
• Guaranteed process repeatability, system to system, site to site
• Unmatched convection efficiency reduces zone temperature
set points
Free! Scan to learn more about BTU’s new powerhouse and
receive an 8GB memory stick. Dynamo has everything you
need, at the price that’s right for you.
New Convection Flow Concept
As the worldwide leader of convection reflow ovens, BTU innovated
the new convection flow dynamic to achieve excellent uniformity
and minimize maintenance needs.
• High convection efficiency through unique convection flow concept
• Excellent temperature and gas flow uniformity across the chamber
• Quick responses to loads
• Ease of maintenance
