Gener al Design Basic Cont act Pr obe Family F066 Pitch [mm/mil] 1.27 / 50 Mechanical specifications Preload [cN] 100. 00 Spring force [ cN] 120. 00 Nominal trav el [mm] 0. 30 Maximum tra…
General
Design Basic Contact Probe
Family F066
Pitch [mm/mil] 1.27 / 50
Mechanical specifications
Preload [cN] 100.00
Spring force [cN] 120.00
Nominal travel [mm] 0.30
Maximum travel [mm] 1.10
Dimensions
Total length [mm] 27.37
Projection height [mm] 3.07
Barrel diameter [mm] 0.75
Materials & surfaces
Tip style 11
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Gold
Tip style 1
Basic Contact Probes
Order code 1102408

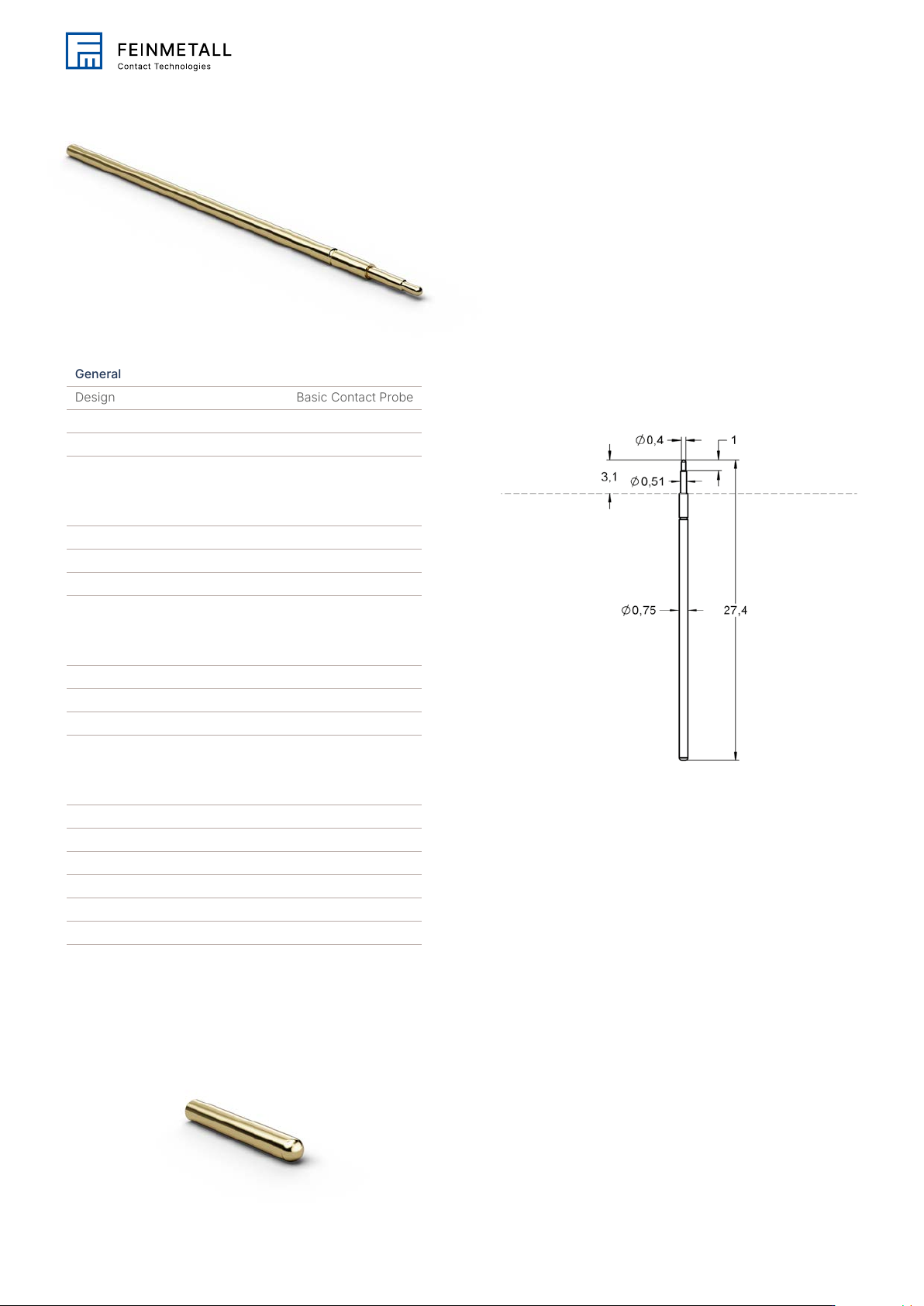

Family drawing
All measurements are in mm.
