Gener al Design Basic Cont act Pr obe Family F7 32 Pitch [mm/mil] 2.54 / 100 Electrical specific ations T ypical cont act resistance [mOhm] 20. 00 Mechanica…
General
Design Basic Contact Probe
Family F732
Pitch [mm/mil] 2.54 / 100
Electrical specifications
Typical contact resistance [mOhm] 20.00
Mechanical specifications
Preload [cN] 60.00
Spring force [cN] 300.00
Nominal travel [mm] 4.00
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.08
Thread M1.6
Tool size [mm] 1.7
Dimensions
Total length [mm] 35.70
Projection height [mm] 10.30
Tip style diameter [mm] 1.40
Barrel diameter [mm] 1.65
Collar diameter [mm] 2.30
Press ring diameter [mm] 2.30
Materials & surfaces
Tip style 12
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Tip style 1
Basic Threaded Probes
F73212B140G300
Order code 1009657

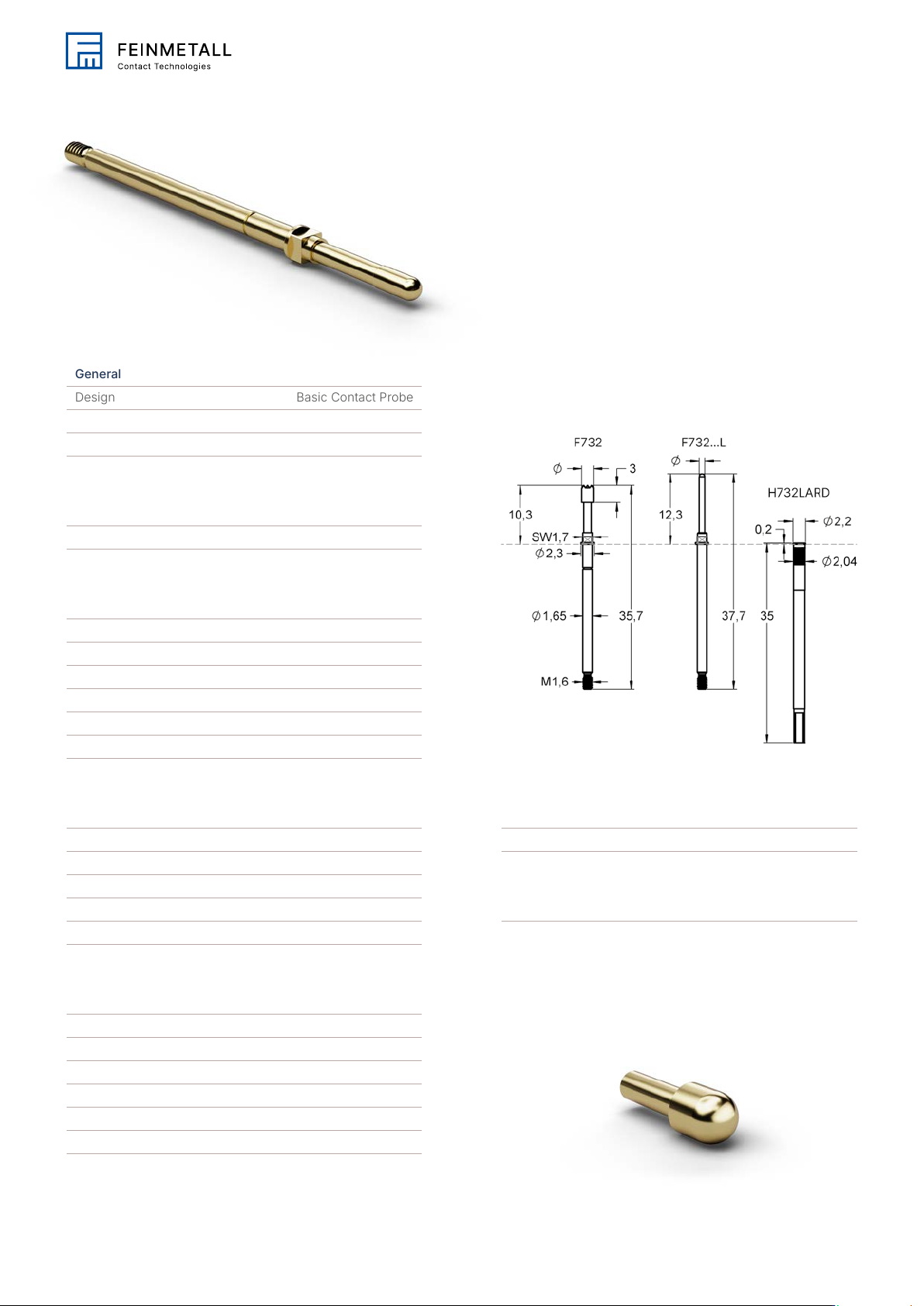

Family drawing
