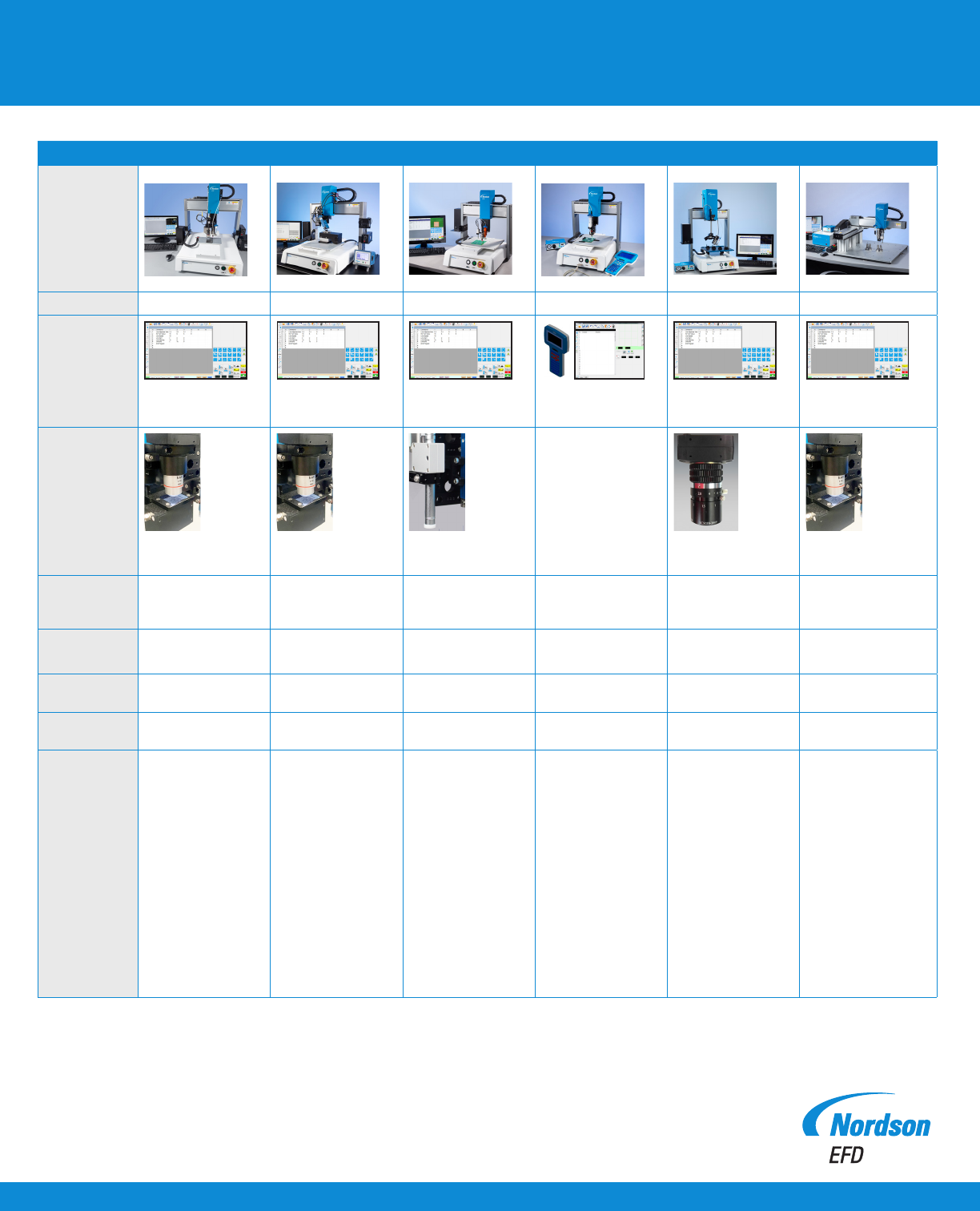

Overview of Automated Dispensing Systems
Item PROPlus / PRO / PROX PROPlus 4-Axis EV Series E Series RV Series GVPlus / GV Series
System
# of axes 3 axes 4 axes 3 axes 3 axes 4 axes 3 axes
Programming
method
DispenseMotion software DispenseMotion software DispenseMotion software Teach Pendant
TeachMotion software
DispenseMotion software DispenseMotion software
Vision N/A
CCD smart camera with
light box
CCD smart camera with
light box
Pencil camera CCD smart camera CCD smart camera with
light box
OptiSure
™
Automated Optical
Inspection (AOI)
AOI software (optional)
Confocal Laser (optional)
AOI software (optional)
Confocal Laser (optional)
AOI software (optional) N/A AOI software (optional)
AOI software (optional)
Confocal Laser (optional)
Height detection Laser (optional) Laser (optional) Mechanical (optional) Mechanical (optional) N/A
Laser (optional, GVPlus only)
Mechanical (optional)
Tip detection Tip detector (included) Tip detector (included) Tip detector (optional) Tip aligner (optional)
Tip detector or Tip aligner
(optional)
Tip detector (optional)
Closed loop
encoding
Included Included N/A N/A N/A N/A
Maximum working
area (X / Y / Z)
PRO3 / PRO3Plus
250 / 250 / 100 mm
(10 / 10 / 4")
PRO4 / PRO4Plus
350 / 350 / 100 mm
(14 / 14 / 4")
PROX
450 / 500 / 100 mm
(18 / 20 / 4")
4-Axis PROPlus
350 / 400 / 100 mm
(14 / 16 / 4")
±1080°
E2V 150 / 200 / 50 mm
(6 / 8 / 2")
E3V 250 / 300 / 100 mm
(10 / 12 / 4")
E4V 350 / 400 / 100 mm
(14 / 16 / 4")
E5V 450 / 500 / 150 mm
(18 / 20 / 6")
E6V 570 / 500 / 150 mm
(22 / 20 / 6")
E2 200 / 200 / 50 mm
(8 / 8 / 2")
E3 300 / 300 / 100 mm
(12 / 12 / 4")
E5 500 / 500 / 150 mm
(20 / 20 / 6")
R3V 300 / 300 / 150 mm
(12 / 12 / 6")
R4V 400 / 400 / 150 mm
(16 / 16 / 6")
R6V 620 / 500 / 150 mm
(24 / 20 / 6")
All: ±999°
G4VPlus
450 / 500 / 100 mm
(18 / 20 / 4”)
G8V 800 / 800 / 100 mm
(31 / 31 / 4")
Programming method
There are two methods for creating dispensing programs: EFD’s proprietary
DispenseMotion
™
software or a Teach Pendant using our TeachMotion
™
software.
• DispenseMotion software is used on robots with vision systems and includes
the DispenseMotion controller, camera, monitor, keyboard, and mouse.
• The Teach Pendant is used on robot models without vision.
Vision systems
Robots with vision allow on-screen preview of the dispensing path to make
programming easier. Options include a smart vision CCD camera or a simple vision
pencil camera. On 3-axis robots, the camera is installed on the Z axis. On 4-axis
robots, we offer a xed-mount camera on the Z axis, or a rotating-mount camera
that moves with the R axis.
Height detection
Height detection allows the robot to measure the height of each dispense location
on the workpiece. The data (Z clearance) is then used to adjust for height variations
from one workpiece to another. We offer two options:
• Laser height detection is most accurate and can determine the height of multiple
points on a product in a single sweep.
• Mechanical height detection requires a device that makes contact with the
product and determines the height of only one point at a time.
Tip detection
Allows the robot to read the distance between the tip and workpiece after each
tip or syringe barrel change-out and maintain deposit consistency. We offer two
options:
• The tip detector operates by touching the tip on a sensor pad to detect the
height location of the tip (called the gap height), then makes a deposit on the
tip detector. The vision system views the deposit to conrm the XY location,
and the robot then offsets the program to ensure deposit location accuracy and
dispensing gap height.
• The tip aligner uses optical sensors to detect the outside diameter and end of the
dispense tip. If there are XY / Z changes from the previous tip, offsets are applied
to the program to ensure deposit location accuracy and dispensing gap height.
For Nordson EFD sales and service in over 40 countries,
contact Nordson EFD or go to www.nordsonefd.com.
800-556-3484; +1-401-431-7000
info@nordsonefd.com
infoefd.europe@nordsonefd.com
asia@nordsonefd.com
©2024 Nordson Corporation v062624

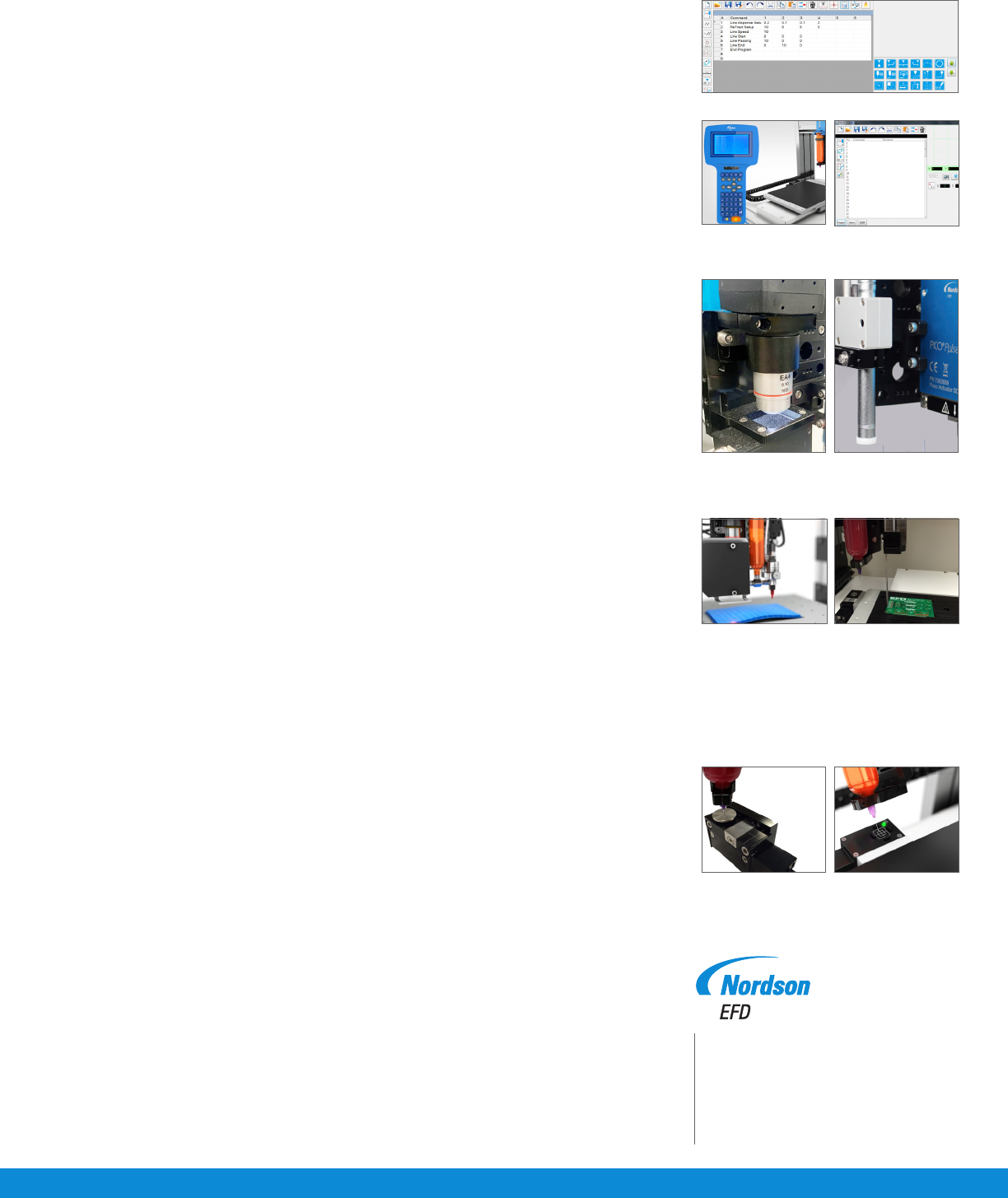

DispenseMotion software
Teach Pendant and TeachMotion software
CCD camera
Tip detector
Pencil camera
Tip aligner
Laser height detection Mechanical height detection
