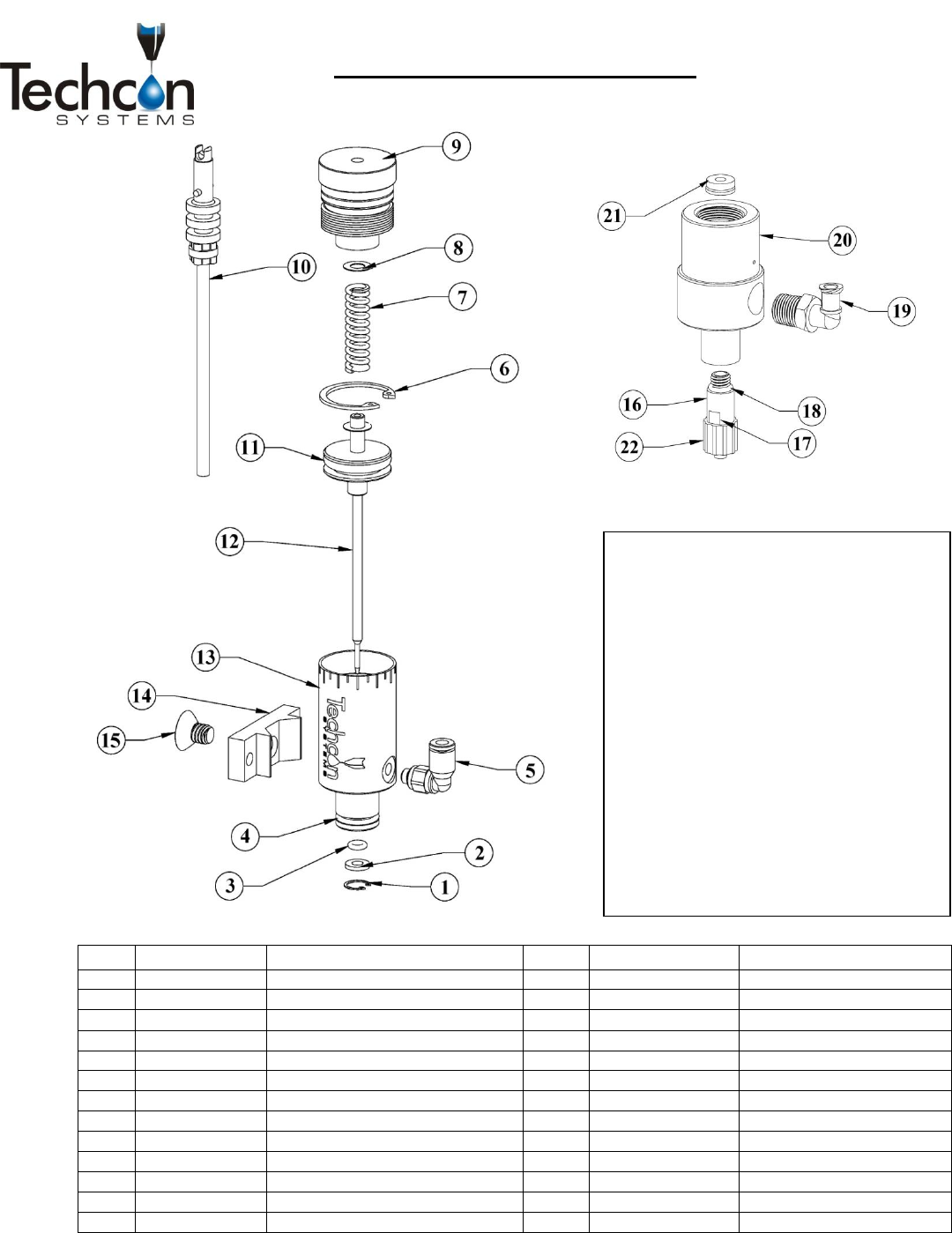

TS5420 Series Needle Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1120-2
Retaining Ring, Small
13
5520-000-001
Air Cylinder, For TS5420
2
TSD1109-45
Nylon Washer
13*
T1000600
Air Cylinder, For TS5420SS
3
TD1400-006A
O-Ring, Buna
14
918-000-048
Mounting Bracket
4
TSD1400-013A
O-Ring, Buna
15
2800-0634
Mounting Screw
5
TSD1003-20
Air Fitting, 4mm, Elbow
16
5420-000-007
Luer Adaptor, Inc. Collar/Seat
6
TSD1120-15
Retaining Ring, Large
17
T1000598
Nozzle Seat
7
TSD1150-34
Spring
18
TSD1400-008A
Luer Adaptor O-Ring, Buna
8
TSD1109-43
Mylar Washer
19
TSD931-75
Luer Lock Adaptor, Elbow
9
5520-000-007
End Cap, For TS5420
20
5420-000-002
Body, For TS5420
9*
T1000599
End Cap, For TS5420SS
20*
5420-000-008
Body, For TS5420SS
10
A0100478
Air Hose/Connector Assembly, 4mm
21
TSD400-70
U-Cup Seal
11
TSD1400-208A
Piston O-Ring, Buna
22
TSD931-44
Luer Collar
12
5520-000-010
Needle/Piston Assembly
Seal Repair Kit = 5420-SEALKIT
Includes 1 x 3, 4, 11, 18, 19, 21 and 22
Valve Repair Kit = 5420-VALVKIT
Includes 1 x 2, 3, 4, 6, 11, 12, 16, 18, 19,
21 and 2 x 8
U-Seal Insertion Tool = 5420-SIT
Nozzle Seat Tool = TSD1113-28
Lubrication: All O-Rings & seals must be
lubricated with Bimba HT-99, or
equivalent, with the exception of
TSD400-70, which must remain dry.
