KEY FEATURES AND BENEFITS T he TS8100 Series Positive Displacement Pu mp is a continuously volumetric dispense pump based on Progressive Cavity (PC) technology. The pump is des igned to dispense a wide range of fluids, f…

100%1 / 2
KEY FEATURES AND BENEFITS
The TS8100 Series Positive Displacement Pump is a continuously
volumetric dispense pump based on Progressive Cavity (PC)
technology. The pump is designed to dispense a wide range of
fluids, from low viscosity coatings to high viscosity greases.
Techcon’s PC Pump uses a special stator and rotor design to
provide consistent dispensing output.
The turning rotor moves the fluid in
tightly sealed cavities through the
stator’s fluid chambers to create a
volumetric fluid flow that does not
change the shape or size of the
fluid. Due to the PC Pump’s unique
dispensing technology, accuracy
and repeatability of ± 1% is
achievable.
Product Data Sheet
TS8100 Series
Positive Displacement
PC Pump
Volumetric, positive displacement
Accurate and repeatable up to ± 1%
No dripping with any viscosity fluid
Compatible with abrasive materials
Does not damage or break fillers
Easy to clean
TYPICAL APPLICATIONS
Under filling PCBA components
Encapsulation and Potting applications
Applying lubrication on Automotive parts
Dispensing pastes and flux
USA & Canada +1 714 230 2398 Europe +44 2380 489 100 Asia +86 21 64952662 www.techconsystems.com
Syringe bracket
Mounting bracket kit
Luer lock fitting
Cleaning kit
Dispensing tip selection pack
SPECIFICATIONS
Size
801” (205mm) L X 1.3” (34mm) W
Weight
13.4 oz. (380g)
Wetted Part
Delrin® (Acetal), PFE, Stainless Steel, UHMWPE
Fluid viscosity
1-300K (Cps or m.Pa.s)
Precision ±, absolute (1)
±1%
Self-sealing (2)
2 bar
Material inlet port
1/8 NPT
Material outlet port
Male Luer lock
Direct mount material reservoir
3 to 55cc
Part number
TS8100-100
TS8100-200
Dispense volume per rotation
0.012 ml average
0.047 ml average
Flow rate range
0.15 – 1.04 ml/min.
0.47 – 4.46 ml/min.
Max flow rate recommended (3)
0.65ml/min
3.38 ml/min
Minimum dispense amount
0.001 ml
0.0045 ml
XYZ Robot: Techcon’s Bench-Top Dispensing Robots makes it
easy to automate fluid dispensing.
Fluid reservoirs: The pump can be fed from the TS1254 (1.8
litre) or TS1258 (5 litre) Pressure Tank, or from any size syringe
barrel or cartridge.
Digital Controller: Techcon’s TS500R-PC Digital Controller is
designed specifically for Techcon’s TS8100 PC Pump.
ACCESSORIES

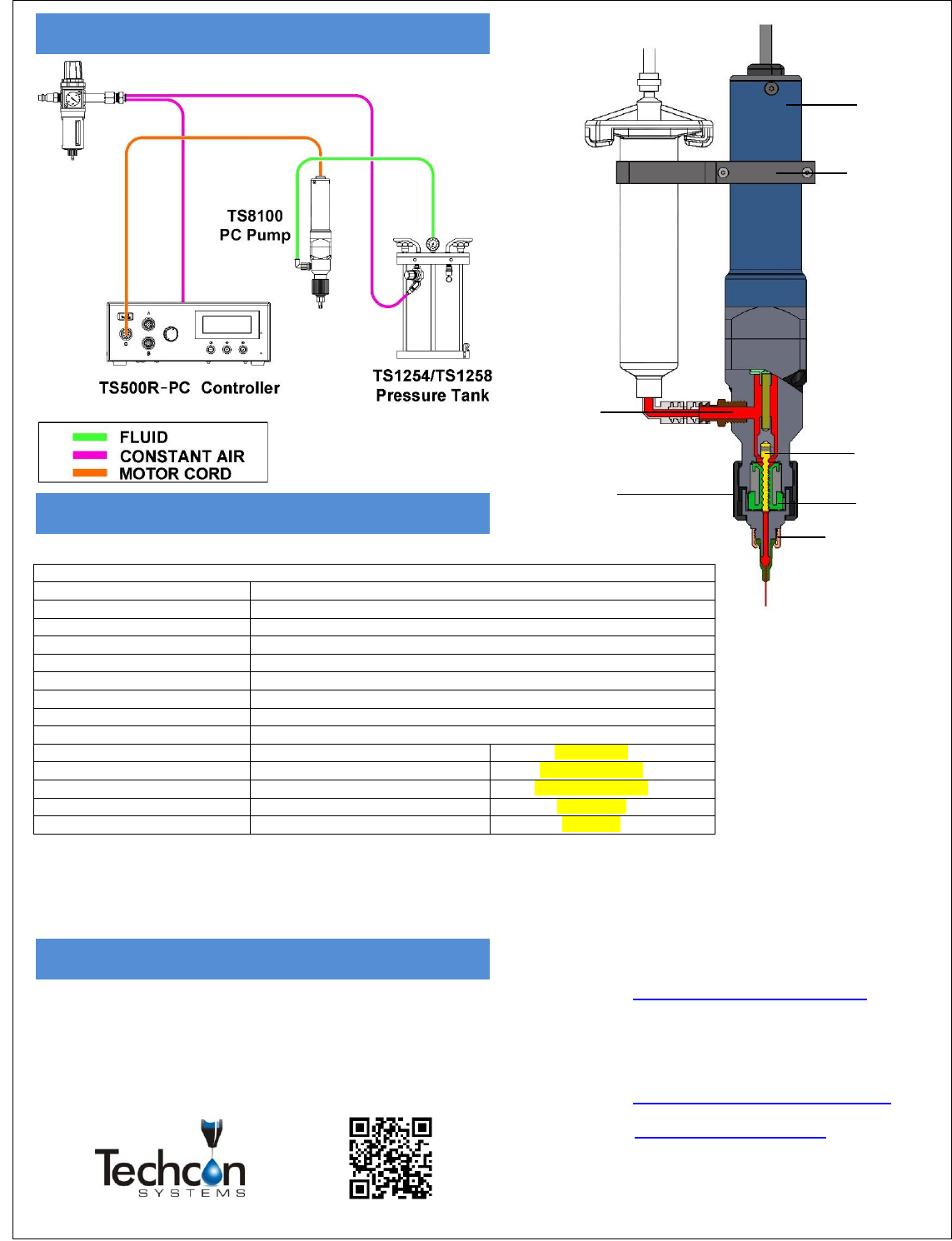

TYPICAL SETUP
For Sales and Support:
Techcon Systems Corporate Headquarters,
10800 Valley View Street, Cypress,
California, 90630, USA.
Tel: 1-714-230-2398, Fax: 1-714-828-2001
E-mail: oemorders@okinternational.com
Techcon Systems European Corporate Office,
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100, Fax: +44 2380 489 109
E-mail: europe-orders@okinternational.com
Or visit www.techconsystems.com
Motor
Luer Taper
And cap
(1) Volumetric dispensing as absolute deviation per complete revolution
and also depends on dispensing fluid.
(2) For fluid with viscosity of 1000 Cps or lower. The pump can handle up
to 5.5 bar for 300K Cps viscosity fluid.
(3) This is the maximum flow rate that does not shorten the stator work life
LOCAL DISPENSING SOLUTIONS WORLDWIDE
SPECIFICATIONS & PART NUMBERS
Fluid
Inlet
Syringe
Bracket
Rotor
Stator
Collar
*SS: Stainless Steel
*PFE: Perfluoroelastomer
*UHMWPE: Ultra High Molecular Weight Polyethylene
