Gener al Design Basic Cont act Pr obe Pitch [mm/mil] 3. 50 / 138 Additional definition LM Electrical specific ations …
General
Design Basic Contact Probe
Pitch [mm/mil] 3.50 / 138
Additional definition LM
Electrical specifications
Switch travel [mm] 1.70
Mechanical specifications
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.09
Thread M2.5
Tool size [mm] 2.6
Dimensions
Total length [mm] 51.30
Projection height [mm] 16.50
Tip style diameter [mm] 3.50
Barrel diameter [mm] 2.65
Collar diameter [mm] 3.20
Press ring diameter [mm] 3.20
Materials & surfaces
Tip style 17K
Tip style material Plastic
Tip style plating Uncoated
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Switch Probes
F88617K350U350LM
Order code 1004209

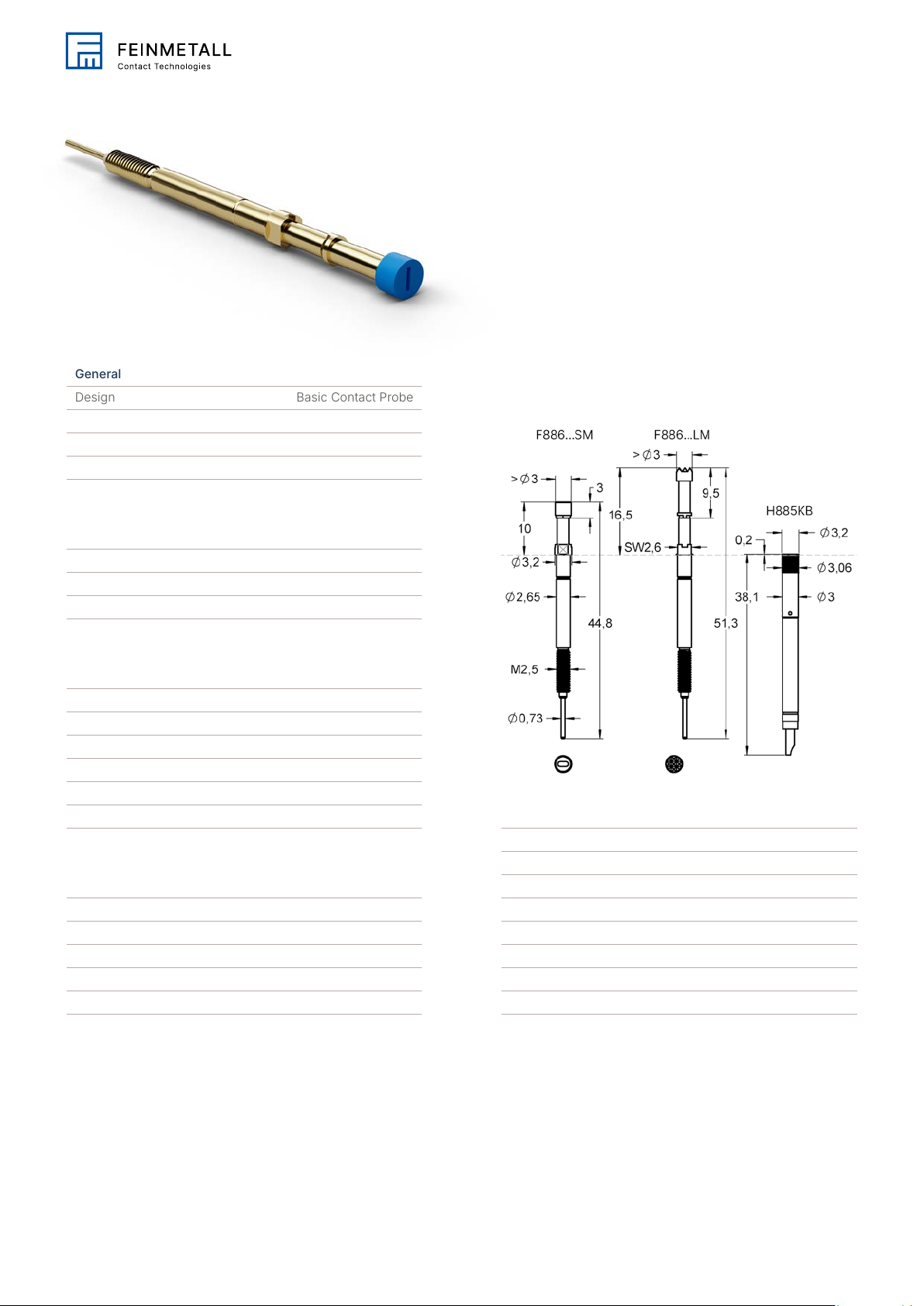

Family drawing
All measurements are in mm.

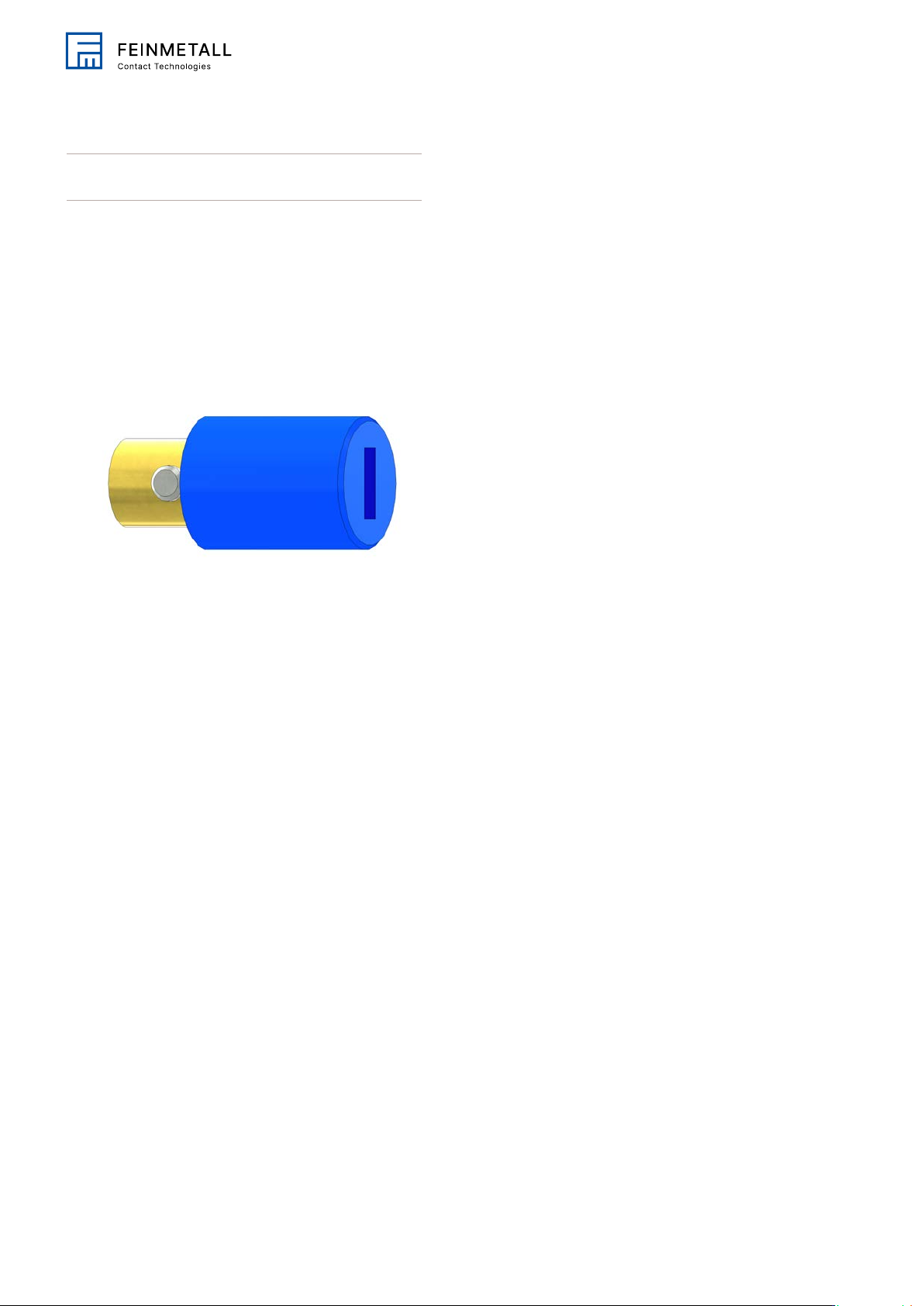

Accessories
Tip style 1
