MODEL GXH-1J 0501-001 212 部品認識カメラ RECOGNITION CAMERA Fig. D-3 照明ユニット Lighting Unit 283 282 . 281 . 201 251 276 255
MODEL GXH-1J
1012-003
211
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-2
155 6301270777 BRACKET 1 829D--010-055 211F8387
156 6301327174 BRACKET 1 829D--010-056 211F9178
161 6301235752 P.C.B,MOUNT 3 -U08,-U09 829D--010-061 4B1
11452
171 4110407803 SCR PAN 3X12 4 M3X12 PAN 221E0489
172 4111130700 SCR PAN 3X16 12 M3X16 PAN 221E0491
174 4110030001 SCR PAN 4X12 8 M4X12 PAN 221E0501
176 4110864408 WASHER SPR 3 4 SW3 F 221H0280
177
4110081706 WASHER SPR 4 8 SW4 F 221H0283
179
6301256962 RELAY 2 -K73,-K74 829D--010-179 4S200153
180 6300492088 SOCKET 2 829D--010-180 4J120084
181
6300001020 BRACKET,WIRING 2 829D--010-181 23N10001
186
4111191909 WASHER V 3X7X0.5 4 FW3 F 221H0311
188 6300010213 WASHER 8 BW4 221H0004
MODEL GXH-1J
0501-001
212
部品認識カメラ
RECOGNITION CAMERA

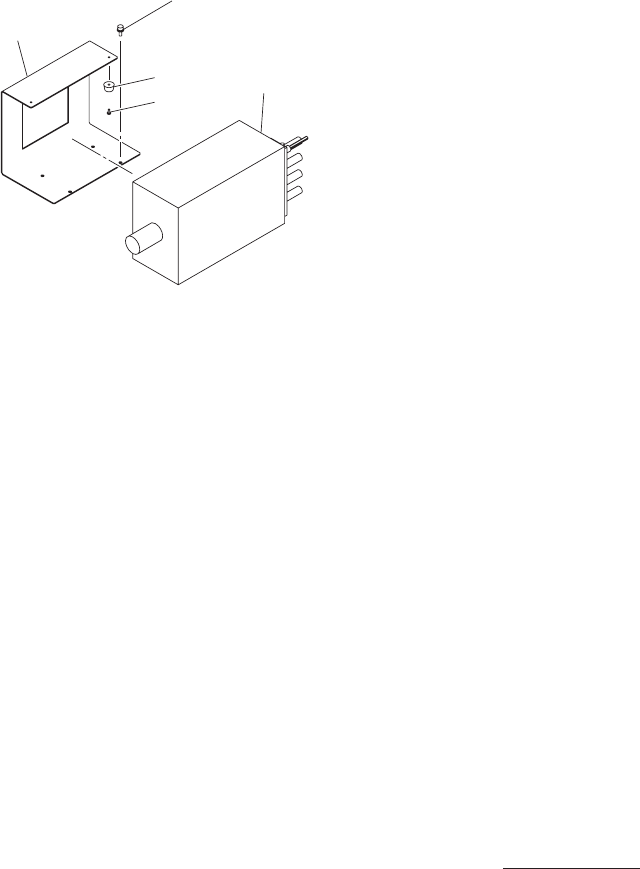

Fig. D-3
照明ユニット
Lighting Unit
283
282
.
281
.
201
251
276
255
MODEL GXH-1J
1012-003
213
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
D-3
201 6301267579 ASSY,LIGHTING UNIT 2 -A67,-A68 829B--010-201 0Z110006
251 6301258980 MECH PARTS(RUBBER LEGS) 4 829F--010-251 226J1897
255
6301340258 BRACKET 2 829F--010-055 211F9381
276 4110418908 SCR PAN 3X6 4 M3X6 PAN 221E0497
281 6300007756 BOLT,HEX-SCT 4 M5X12 221A0030
282
4111416705 WASHER SPR 5 4 SW5 221H0289
283
4111414107 WASHER V 5X10X1 4 FW5 221H0320
