Contents
1 Feeder Carrige Section
Feeder Carrige Assy .............................................1-1
2 Feeder Bar Section
Feeder Bar Assy ...................................................2-1
3
Interface Box Section
Interface Box Assy ................................................3-1
KM0-0612
Object model : YV100/100II YVL88/88II
1
1
Feeder Carriage Assy.
Feeder Carriage
KM0-1004
1
45
47
15
18
16
2
10
60
59
50
48
63
61
61
45
40
42
40
52
57
17
23
25
35
20
61
49
9
39
53
74
51
4
33
76
75
35
38
61
63
34
43
39
24
41
3
26
58
6
44
5
28
27
7
28
22
8
56
46
32
29
21
30
56
37
19
64
13
14
11
38
46
39
39
54
77
78
13
14
12
61
31
62
31
36
61
62
55
41
66
73
71
69
68
72
70
67
67
65
65
72
72
68
69
71
73
73
66
67
67
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M3701-00X BASE, CARRIAGE L 1
2 KM0-M3702-00X BASE, CARRIAGE R 1
3 KM0-M3703-00X ARM 1, CARRIAGE 1
4 KM0-M3704-00X ARM 2, CARRIAGE 1
5 KM0-M3705-00X GEAR, 1 1
6 KM0-M3705-10X GEAR, 1 1
7 KM0-M3706-00X GEAR, 2 1
8 KM0-M3707-00X JOINT, FRAME1 1
9 KM0-M3708-00X JOINT, FRAME2 1
10 KM0-M3710-00X GEAR, 3 1
11 KM0-M3711-00X RACK, GEAR 1
12 KM0-M3711-10X RACK, GEAR 1
13 KM0-M3712-00X RACK PLATE 2
14 KM0-M3712-10X RACK PLATE 2
15 KM0-M3713-00X CYLINDER ROD 1
16 92909-18200 WASHER 1
17 KM0-M3715-00X SHAFT 1
18 KM0-M3716-00X ARM DAMPER 1
19 KM0-M3717-00X BASE, FRAME L 1
20 KM0-M3718-00X BASE, FRAME R 1
21 KM0-M3720-00X ARM BLOCK R1 1
22 KM0-M3721-00X ARM BLOCK L1 1
23 KM0-M3722-00X HOUSING, SLIDE 1
24 KM0-M3723-00X ROD 1
25 KG7-M3524-00X CLAMP 1 50/ASS
26 KM0-M3725-00X HANDLE 1
27 KM0-M3726-00X ONEWAY CLUTCH 1 HF2016
28 KM0-M3727-00X B.R.G. 2 6804ZZ
29 KM0-M3728-00X DRY B.R.G. 1 LEF3820
30 KM0-M3728-10X DRY B.R.G. 1 TMB2030
31 KM0-M3729-00X B.R.G. UNIT 2 UFL004
32 KM0-M372A-00X WASHER 1 70W-2615
33 KM0-M3730-00X CYLINDER 1 KA50X75-827W
33-1 KM8-M3730-00X CYLINDER 1 CR4034WY 1991/8/24 M980061 OK
34 KM0-M3731-00X STOPPER, BOLT 2 UST8-40
35 KM0-M3732-00X STOPPER, BLOCK 2
36 KM0-M3733-00X STOPPER DAMPER 2 AE 15-25
37 KM0-M3733-10X STOPPER DAMPER 2 AE 15-35
38 KE7-M2278-10X GUIDE, 3 1 SR15W
39 KM0-M3735-00X PIN 4
40 KG7-M3536-00X PLATE JOINT 1 2
41 KG7-M3537-00X PLATE JOINT 2 2
42 KM0-M3738-00X PLATE 1 1
43 KM0-M3739-00X PLATE 2 1
44 KM0-M3740-10X E.T.P. BUSH 1 ETP-K-20
45 KM0-M3741-00X CASTER 2 No105B
46 KM0-M3741-10X CASTER 2 No107-ES
47 KM0-M3750-00X COVER GEAR 1 1
48 KM0-M3751-00X COVER GEAR 2 1
49 KM0-M3752-00X COVER GEAR 3 1
50 KM0-M3753-00X COVER GEAR 4 1
51 KM0-M3754-00X COVER CYL. 1
52 KM0-M3755-00X COVER, CYL. 2 1
53 KM0-M3756-00X TERMINAL BOX 1 1
54 KM0-M3756-10X TERMINAL BOX 2 1
55 KH5-M3760-00X LABEL, WARNING 1
56 90387-20165 SPACER 2
57 91B00-06014 KEY, STRAIGHT 1
58 99009-40020 CIRCLIP 1
59 91609-40020 PIN, SPRING 1 4X20
60 92A08-04305 SCREW, SET 1 M4X5
61 91317-08025
BOLT, HEXAGON SOCKET HEAD
12 M8X25
62 91317-08014
BOLT, HEXAGON SOCKET HEAD
4 M8X14
63 91317-08010
BOLT, HEXAGON SOCKET HEAD
4 M8X10
64 91317-06040
BOLT, HEXAGON SOCKET HEAD
2 M6X40
65 91317-06030
BOLT, HEXAGON SOCKET HEAD
4 M6X30
66 91317-06014
BOLT, HEXAGON SOCKET HEAD
8 M6X14
67 91317-06010
BOLT, HEXAGON SOCKET HEAD
8 M6X10
68 91317-05025
BOLT, HEXAGON SOCKET HEAD
4 M5X25
69 91317-05016
BOLT, HEXAGON SOCKET HEAD
4 M5X16
70 91317-04025
BOLT, HEXAGON SOCKET HEAD
4 M4X25
71 91317-04014
BOLT, HEXAGON SOCKET HEAD
16 M4X14
72 91317-04012
BOLT, HEXAGON SOCKET HEAD
16 M4X12
73 91317-03012
BOLT, HEXAGON SOCKET HEAD
4 M3X12
74 KN0-M669U-01X HNS 9-13 (FEEDER ASSY) 1
75 KN0-M3730-A0X LEVER 1 TK600-1/4B
76 KN0-M3730-B0X LEVER 1 TKT-8A
77 $UKM8-02 JOINT 1
78 $TJ8-02 JOINT 1
1
2

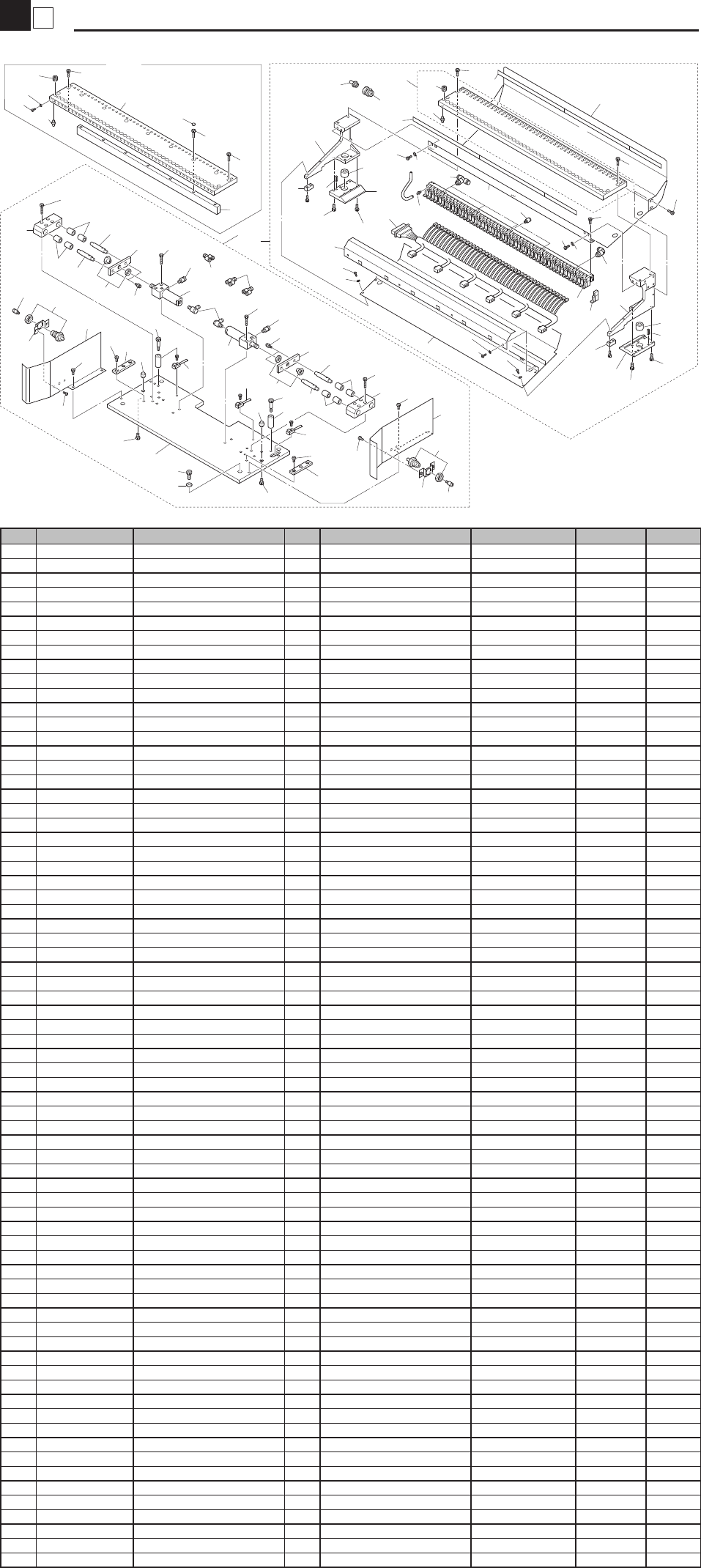

Feeder Bar Assy.
Feeder Bar
KM0-FES-1011
1 2 3 4
47484950
1 2 3 4
47484950
1
15
29
18
16
29
9
30
30
30
29
29
32
16
68,69
20
41
35
13
36
11
25
49
43
42
49
53
64
49
57
46
42
45
47
43
49
41
51
54>67
39
64
60
45
56
58
40
40
47
37
54
51
38
39
63
40
25
21
27
35
13
30
18
32
34
33
2
25
25
25
14
3
27
61
50
48
52
55
26
30
19
4
10
66
12
26
15
6
8
17
57
40
43
44
44
43
61
65
63
62
46
53
54
50
58
24
5
28
29
22
31
23
7
62
59
65
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM0-M3791-B0X FEEDER BAR ASSY. 1
2 KM0-M3401-E0X PLATE E, FEEDER 1
3 KM0-M3413-E0X FRAME E, FEEDER 1
4 KM0-M3402-E0X GUIDE E-1, TAPE 1
5 KM0-M3749-00X GUIDE, TAPE 1 1
6 KM0-M3742-00X STAND 1, CARIAGE 1
7 KM0-M3743-00X STAND 2, CARIAGE 1
8 KM0-M3408-E0X BRACKET E, VALVE 1
9 KM0-M3409-F0X COVER F, VALVE 1
10 KM0-M3410-E0X VALVE ASSY. E 1
11 KM0-M3757-00X LOCATE PLATE L 1
12 KM0-M3758-00X LOCATE PLATE R 1
13 KM0-M3759-00X BUSH 2
14 KM0-M3414-00X PLUG 7
15 KM0-M3747-00X GIUIDE, REG 2
16 KU5-M3430-00X LABEL, FEEDER 2/3
17 KM0-M669U-00X HARNESS, 9-13(FEEDER ASSY.) 1
18 $BF4BU JOINT 50
19 $BF4BU-M3 JOINT 50
20 $TT8-01 JOINT 4
21 $TL8-01 JOINT 1
22 $KM-06 MAFFLER 5
23 $TJ8-02 JOINT 1
24 $UKM8-02 JOINT 1
25 91317-06020 BOLT, HEX SOCKET HEAD 11 M6X20
26 91317-05020 BOLT, HEX SOCKET HEAD 6 M5X20
27 91317-04020 BOLT, HEX SOCKET HEAD 6 M4X20
28 91317-04010 BOLT, HEX SOCKET HEAD 18 M4X10
29 98907-04008 SCREW, BINDING HEAD 12 M4X8
30 92901-04400 WASHER, EXTL. TOOTHED 12 M4
31 98907-03008 SCREW, BINDING HEAD 6 M3X8
32 KG2-M3407-A0X AIR JOINT 50
33 KM0-M3416-00X GASKET 50
34 98907-03004 SCREW, BINDING HEAD 50 M3X4
35 91609-60020 PIN, SPRING 4 6X20
36 KM0-M3792-A0X FEEDER BAR FIXATION ASSY. 1
37 KG7-M3582-10X LOCATE PIN 1
38 KG7-M3582-00X LOCATE PIN 2
39 KG7-M3583-00X HEIGHT PLATE 2
40 KM0-M3772-00X DRY BRG. 2 8 SPB-121820
41 KM0-M3773-00X GUIDE, BLOCK 2
42 KM0-M3775-00X ROD PLATE 2
43 KM0-M3776-00X ROD LOCK 4
44 KG7-M3577-01X CYLINDER JOINT 2 FJS10-1. 25-9
45 KM0-M3780-00X DAMPER 2 AE20-40
46 KM0-M3785-00X BOLT, FLANGE 4 M5X8
47 KG7-M3588-00X SHOLDER BOLT 2 SH8-40
48 91317-08025
BOLT, HEXAGON SOCKET HEAD
4 M8X25
49 91317-06030
BOLT, HEXAGON SOCKET HEAD
12 M6X30
50 91317-06010
BOLT, HEXAGON SOCKET HEAD
2 M6X10
51 98707-05012 SCREW, FLAT HEAD 6 M5X12
52 92907-08200 WASHER, PLAIN 4 M8
53 KM0-M3774-00X LOCK, CYLINDER 2 DAB25X25-2
54 KH4-M655T-30X SENSOR 1-12 3 GXL-8FU
54-1 KH4-M655T-30X SENSOR 1-12 2 Top detection type (2000/3/30) M030182 OK
55 KM0-M3781-10X BASE, PLATE 1
56 $SL4-01 JOINT 2
57 $TS4-01 JOINT 2
58 $UY4 JOINT 3
59 KM0-M3778-20X SLIDE GUIDE 1 1
60 KM0-M3779-20X SLIDE GUIDE 2 1
61 KM0-M3786-00X STAY, CYL. 2
62 KM0-M3787-00X CYL. NOCK 2 NSA16-15-N
63 $TS4-M5 JOINT 1
64 91317-06010
BOLT, HEXAGON SOCKET HEAD
4 M6X10
65 98707-04010 SCREW, FLAT HEAD 4 M4X10
66 KU0-M3410-41X VALVE KIT (50) SPARE PARTS
67 KJ8-M655A-50X SENSOR 1-1 ASSY 1 Front detection type (2000/3/30) M030182 NG
67-1 KJ8-M655A-51X SENSOR, 1-1 1 (2007/10/16) MD00059 OK
68 KM8-M34A0-10X FEEDER PLATE ASSY 1 L=50
69 KM8-M34A0-11X FEEDER PLATE ASSY 1 L=38
