CHAMBER TECHNICAL DATA SHEET InJet ® 388 CRRD PCB cleaning STENCIL cleaning PUMPRINT cleaning www.dct.cleaning Combo
CHAMBER
TECHNICAL DATA SHEET
InJet
®
388 CRRD
PCB cleaning
STENCIL cleaning
PUMPRINT cleaning
www.dct.cleaning
Combo
Dimensions (w x l x h) 1400 x 1492 x 1876 mm
Weight 450 kg
Ø energy consumption per 1 cycle 1,85 kWh
Cleaning uid consumption per 1 cycle 0,05 – 0,3 l
Compressed air consumption per 1 cycle 3 l / 5 Bar
Max. dimensions of the cleaned parts 190 x 860 x 760 mm
Exchangeable mechanical lter of cleaning uid 20 - 100 μm
Exchangeable mechanical lter of rinsing uid 5 - 20 μm
Operating pressures cleaning 1,8 Bar - 3 Bar
pre-rinsing 0,3 Bar - 1,2 Bar
rinsing 0,3 Bar - 1,2 Bar
Cleaning uid ow rate 200 l / min
Temperature range setting of the cleaning uid From ambient temperature to 60°C
Temperature range setting of the pre-rinse uid From ambient temperature to 60°C
Temperature range setting of the rinse uid From ambient temperature to 60°C
Conductivity range settings of the pre-rinse uid 0 - 40, 0 - 400, 0 - 2000 μS/cm
Conductivity range settings of the rinse uid 0 - 40, 0 - 400, 0 - 2000 μS/cm
Temperature range setting of the drying From ambient temperature to 80°C
Noise level < 70 dB
Device control PLC + 8,4“ touchscreen
TECHNICAL PARAMETERS
Power supply 400 V, 50Hz (3+N+PE)
Power connection EU 32 A
Pmax 12 kW
Connection to central air pressure Pipe Ø 6 mm + Ø 10 mm
Recommended working pressure 4,5 Bar
Exhaust pipe diameter Ø 100 mm
Exhaust pipe capacity 380 m
3
/h
Volume of the storage tanks for cleaning 75 l
Volume of the storage tanks for pre-rinsing and rinsing 75 and 75 l
Service space required around the device 600 mm
INSTALLATION REQUIREMENTS
www.dct.cleaning
InJet
®
388 CRRD
TECHNICAL DATA SHEET
Application
name
Recommended
application
Recommended
temperature
Recommended
time
Capacity per
shift
PCB
35 – 55 °C 30 min. 384*
Stencils
20 – 40 °C 18 min. 27
Pumprints
40 – 55 °C 38 min. 13
4 INDIVIDUAL PROCESSES
CLEANING PARAMETERS
highly recommended
eurocards (100x160 mm) per 8 hours (work shift)
*
www.dct.cleaning
D
R

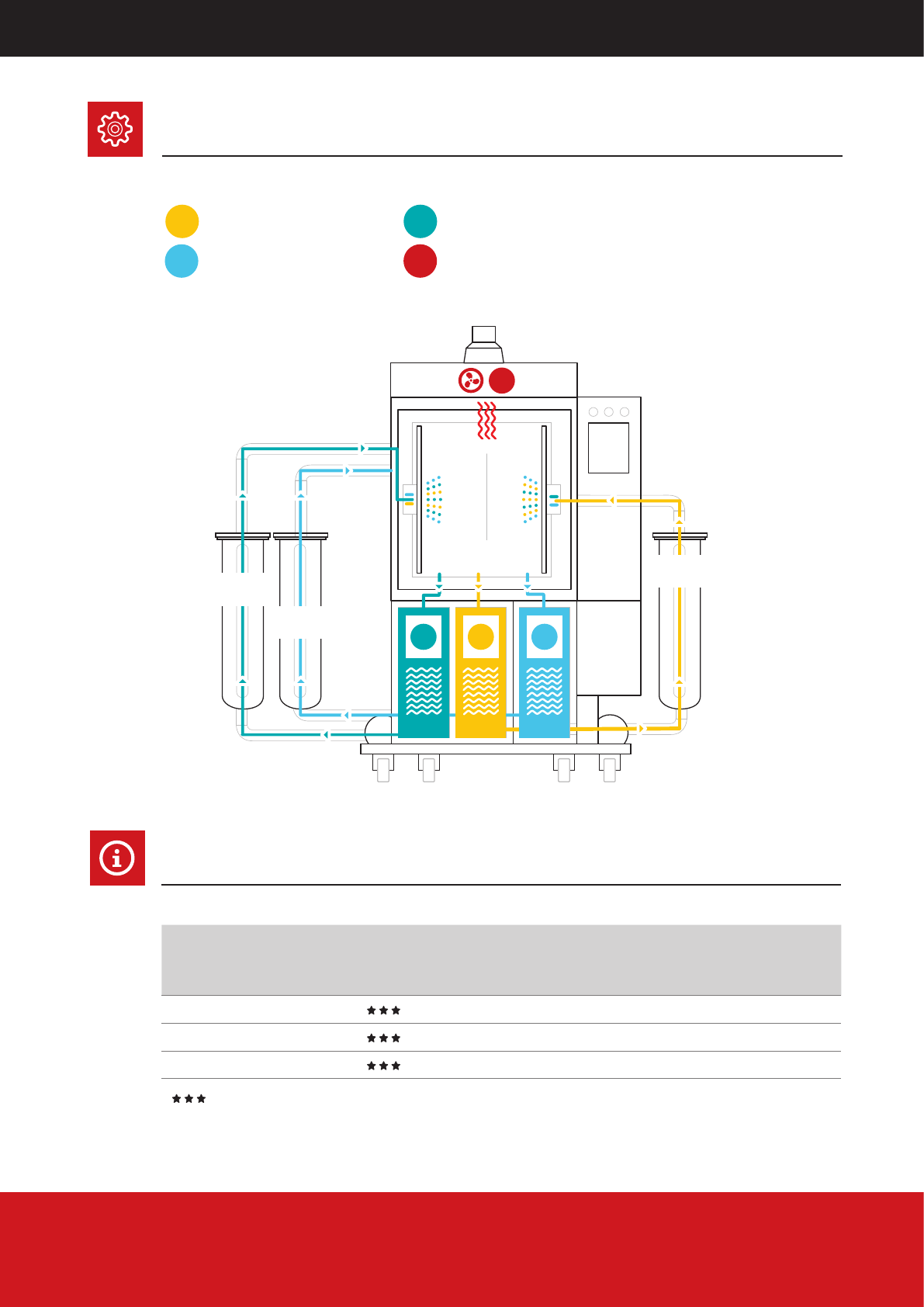

PRE-RINSING
FILTER
RINSING
FILTER
CLEANING
FILTER
CR
C
CLEANING
PRE-RINSING
InJet
®
388 CRRD TECHNICAL DATA SHEET
R
R
D
RINSING
DRYING
