General
Design Basic Contact Probe
Family F733
Pitch [mm/mil] 4.00 / 157
Additional definition H
Electrical specifications
Mechanical specifications
Preload [cN] 50.00
Spring force [cN] 150.00
Nominal travel [mm] 4.00
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.10
Tool size [mm] 3.0
Dimensions
Projection height [mm] 10.30
Materials & surfaces
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material High-grade steel
Spring plating Uncoated
Accessories
Basic Threaded Probes
Order code 1009294

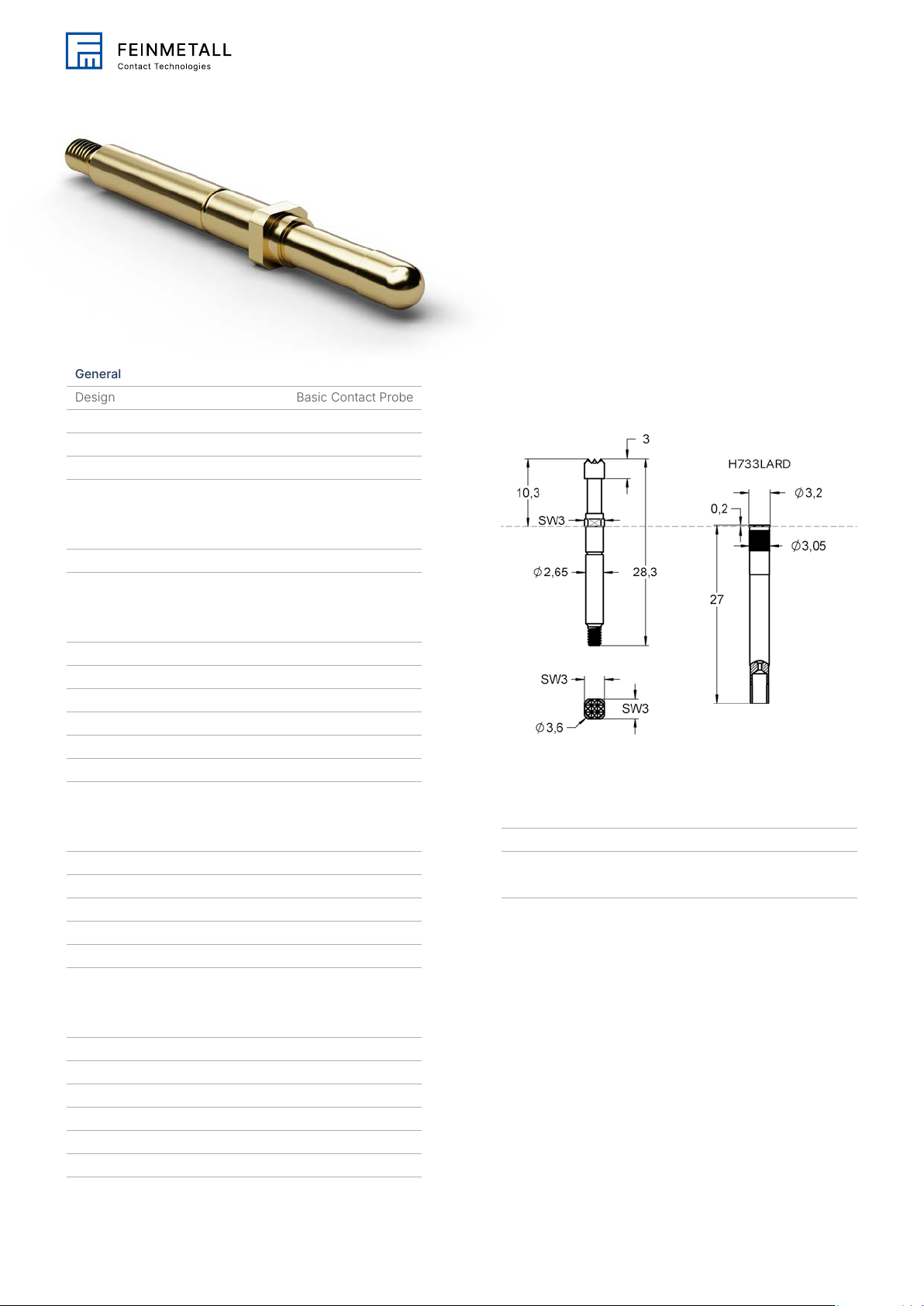

Family drawing
All measurements are in mm.

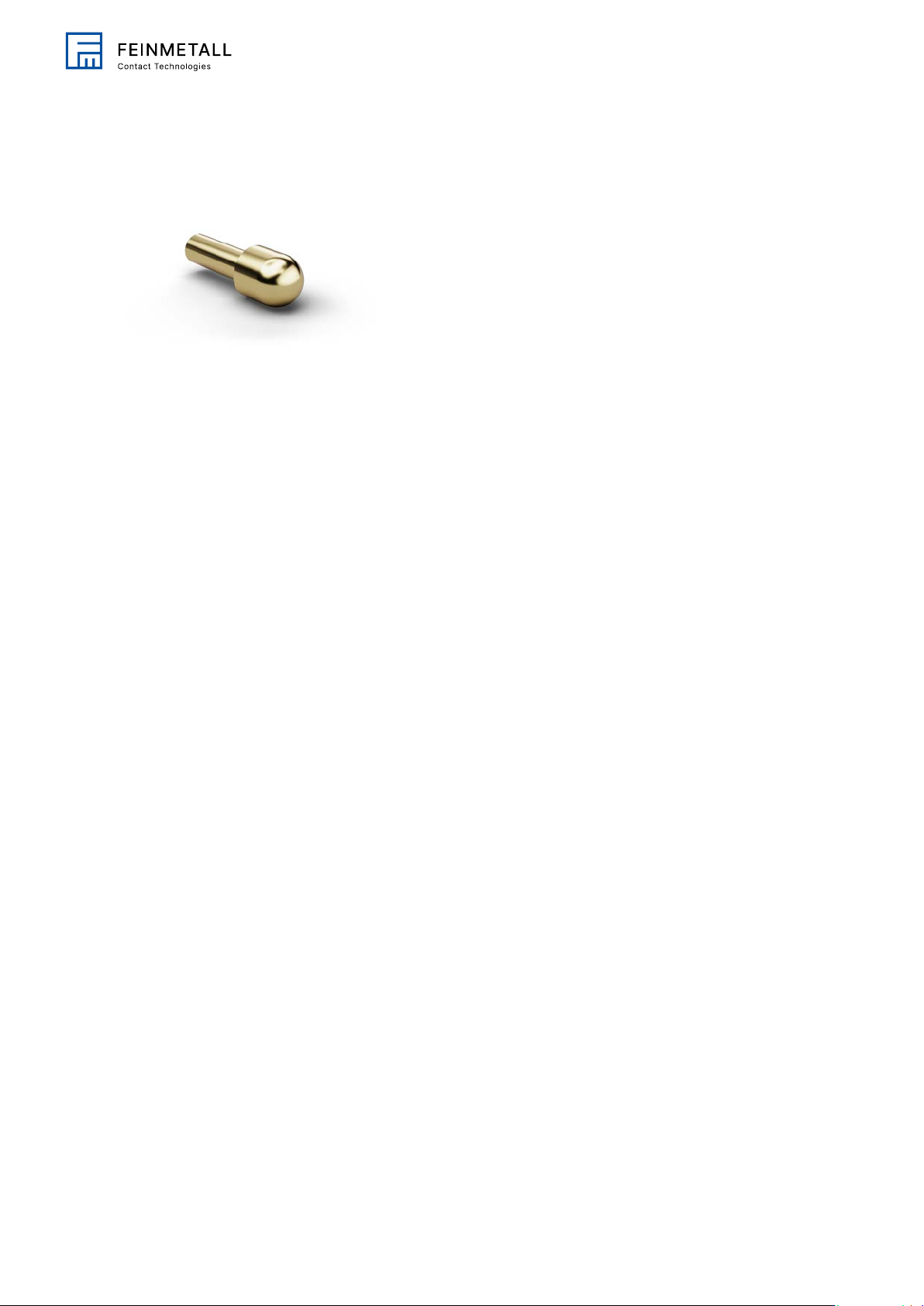

Tip style 1
