Technical Reference(CP45FV-3rd).pdf - 第32页

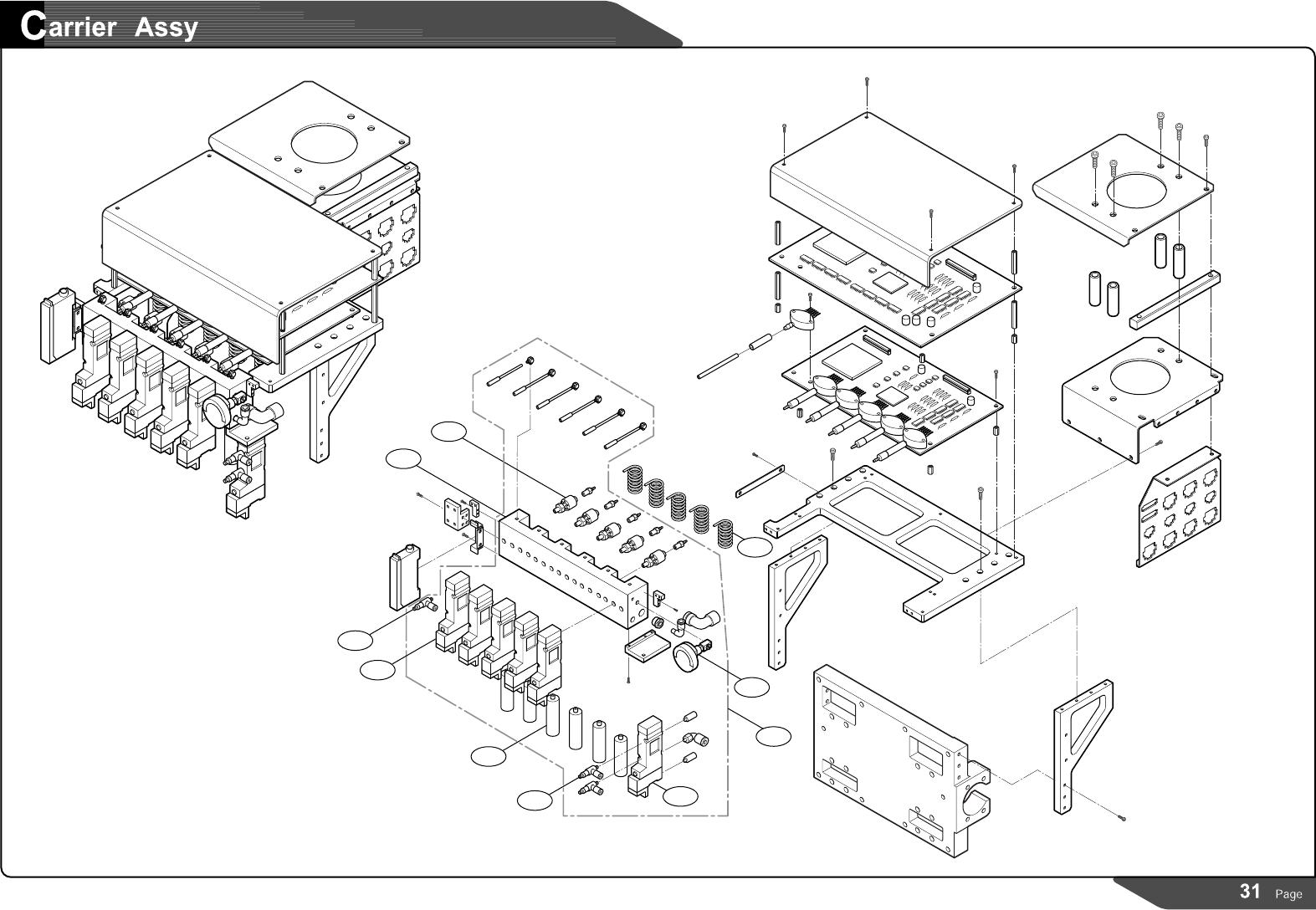

S A MS U N G T E C H W I N 1 - F 1 - A 1 1 - E 1 - D 1 - B 1 - C 2 1 - G 1 - H
S AMS UNG TE CHWIN
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1
J1300483 PHOTOSENSORMIRROR-AXIS 1 EE-SX672
2
J1300883 SENSORZ-AXIS 7 EE-SX673(OMRON)
3
J3104012A STEPMOTOR 3 KH42JM2-851
4
J9061962A Z1MOTORCABLEASS'Y 1 J9061962A
HEAD1
4
J9061963A Z2MOTORCABLEASS'Y 1 J9061963A
HEAD2
4
J9061964A Z3MOTORCABLEASS'Y 1 J9061964A
HEAD3
4
J9061965A Z4MOTORCABLEASS'Y 1 J9061965A
HEAD4
4
J9061966A Z5MOTORCABLEASS'Y 1 J9061966A
HEAD5
4
J9061967A Z6MOTORCABLEASS'Y 1 J9061967A
HEAD6
J1301273 SERVOMOTOR 6 P30B04005DXS00
5
J9075961B Q-SWINGMOTORCABLEASS'Y 1 MK-MD16-Q
J3108050A SERVOMOTOR 1 Q1AA04010DXS70M
6
J3212027A MICROPHOTOSENSORTHETA-AXIS 6 PM-L24
7
J6304001A SEAL,V-RONG0.20ID 6 V-6ANIT562
8
J6602024A TIMINGBELTTHETA-AXIS 3 208-2GT-4
9
J6602034A TIMINGBELTMIRRORAXIS 1 300-3GT-6
10
J6607051A LMGUIDEZ-AXIS 6 1MN7-120-7.5*7.5G3V1
11
J6611008A BALLSPLINEUNITZ-AXIS 6 LSAGLT8C1R200T1P
12
J6602023A TIMINGBELT 1 440-2GT-12
13
J7055166D ARMSPRING 2 J7055166D
14
J7055167C ZSPRING 6 J7055167C
15
J9055046A NOZZLEHOLDERASS'Y 6 J9055046A
16
J6755002A FOLDINGMIRROR
1
J6755002A
17
18
19
20
S AMS UNG TE CHWIN
1-F
1-A
1
1-E
1-D
1-B
1-C
2
1-G
1-H
S AMS UNG TE CHWIN
NO. PARTNO. PARTNAME Q'TY TYPE REMARK
1
J9058070A AIRDISTRIBUTORMODULE 1
J9058063A
1-A
J7158013A MANIFOLD 1
SY3140R-20-IW0333
1-B
J9058071A AIRTANKASS'Y 6
TANK28-00-KRIU0345
1-C
GAUGE 1
G33-3-01
1-D
VALVE 6
SY3140R-5LOZ
1-E VALVE
1
SY3120-5MOZ-M5-F1
1-F
J9058072A FILTERASS'Y 6 AF100-KRU0638-02
J6708009A FILTER 6 SY3140R-50B-KRW0027
1-G
SPEEDCON' 2 AS1211F-M5-04
1-H
REGULETOR 1 ARJ1020F-M5-06
2
J6713022B COILTUBE 6
J6713022B
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
