HEAD CARE STATION

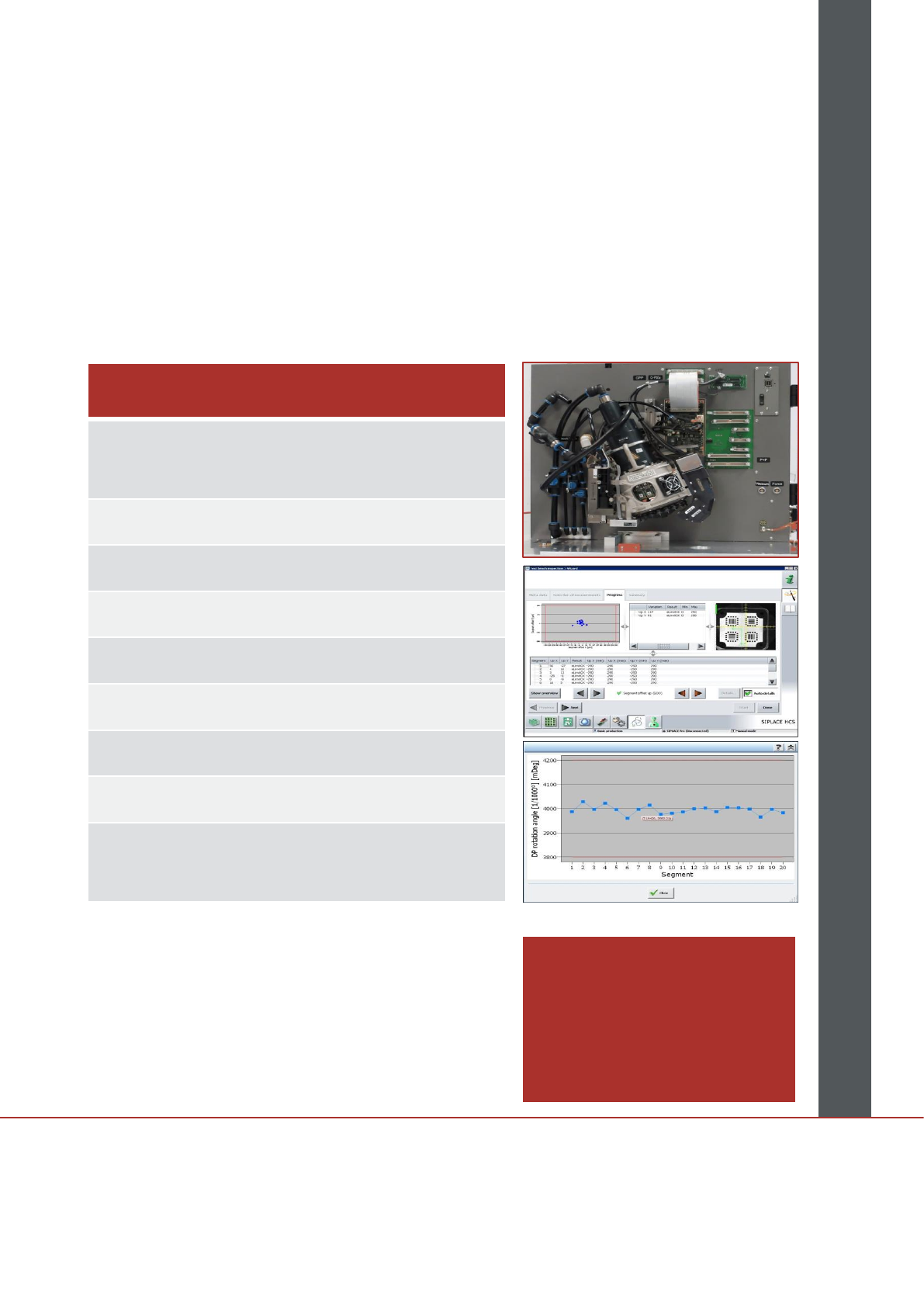

SIPLACE
Head Verification
The Head Care Station offers you
the capability to complete
verification tasks for the SIPLACE
placement heads MultiStar,
SpeedStar and TwinStar.
SIPLACE Service
Yield of production
Performance
Uptime
Technical availability
With the Head Care Station your SIPLACE placement heads MultiStar, SpeedStar and
TwinStar can be verified off the line for their technical functionality which includes.
ACCURACY
Rotation angles
Axis Offsets
Placement Force
UPTIME
Predictive checks
Single function
testing
PERFORMANCE
Endurance Run
Runtime data
analysis
Axis movement
This brochure contains only general descriptions and/or features which may not apply to a specific product or may change as a result of new product developments.
Any specific performance features and/or capabilities will only be binding if contractually agreed upon.
A10011-ASM-G114-EN Edition 7-12/2017
ASM Assembly Systems GmbH & Co. KG
Rupert-Mayer-Str. 44
81379 Munich, Germany
Tel: +49 89 20800-27819
Fax: +49 89 20800-36692
smt-solutions.de@asmpt.com
www.asm-smt.com
SIPLACE
Head Verification
Examples of testing
Condition of the air & vacuum system and it sub units
checked by the internal head sensor
Smooth running of DP- and Z-axis bearing
Wear on bearings / tolerances
Check of the component sensor
Check of the z-axis light barrier
Position accuracy of DP drives
Check of nozzle seating
Placement force verification
Condition of the air & vacuum system and it sub units
checked by the external sensor
The Head Care Station comes with
HCSII v2.3 cpl.
Set of measuring equipment
Documentation
Optional packages
Option vacuum pump HCSII cpl.
Technical data
Main power supply: 2x 3/N/PE ~ 220V/16A
Frequency: 50/60 Hz
Compressed air: (p
min
= 5,0 - p
max
= 10) bar
Size head unit (l/w/h): 590 / 400 / 550 mm
Size control box (l/w/h): 460 / 470 / 170 mm
Weight: 40 Kg
Additionally required
Monitor, keyboard and mouse
BE camera for the C&P heads* to be verified
for more details see OTS price list
* Depending on the customer required for the complete
verification of a head
Please contact your regional
SIPLACE Service Partner with
