DATASHEET

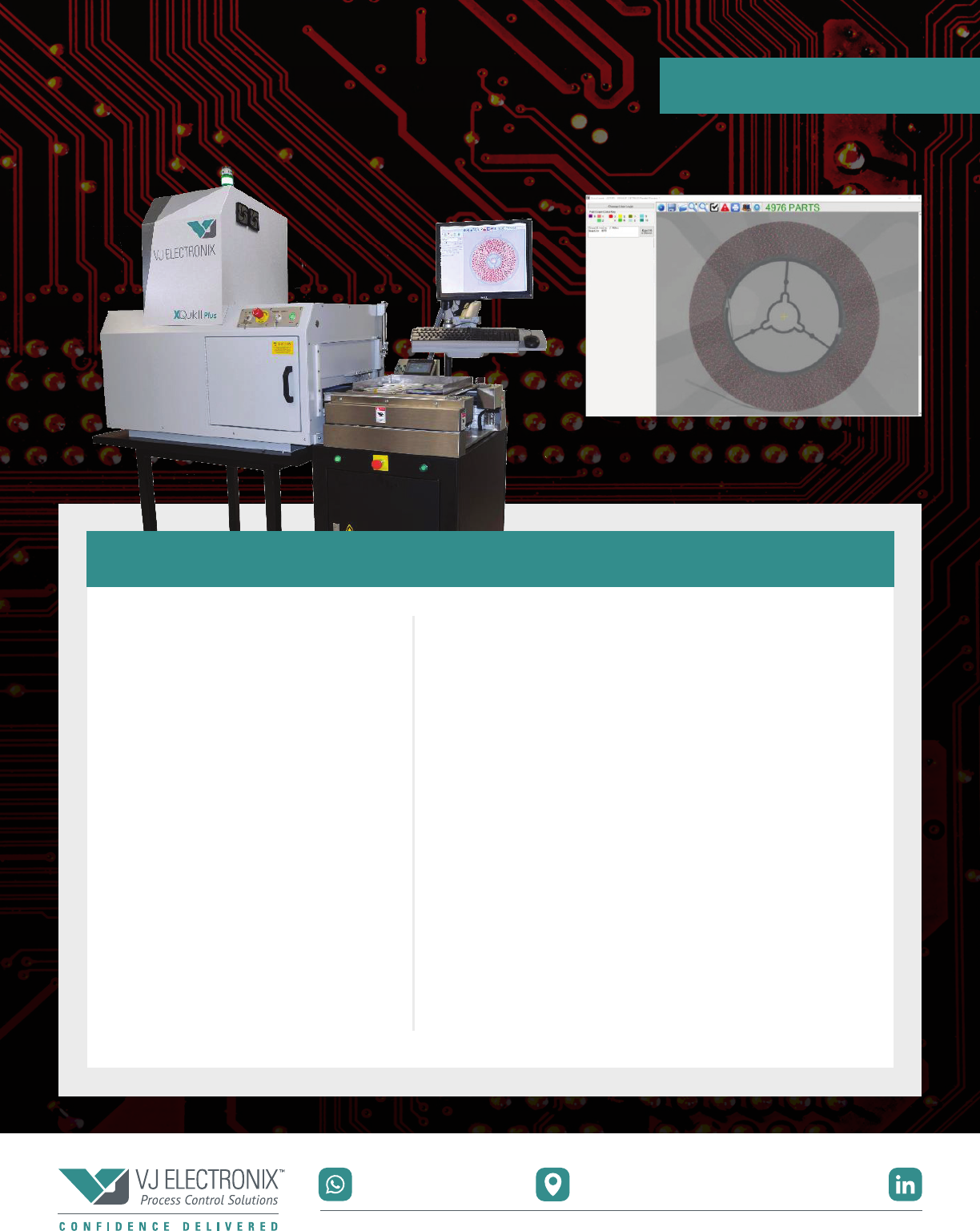

XQUIK II PLUS
X-ray Component Counter
FEATURES & BENEFITS
with AccuCount
™
Technology
AUTOLOAD
Increased throughput,
accuracy and confidence
in your high volume
component counting.
Key Features:
® High Speed Component Counting
® 2X Productivity of the XQuik II Plus
® Highest Available Image Resolution
® User Friendly, One-touch Operation
® AccuCount
™
Technology
® AI Powered Component Recognition
® Ultra-low Parallax Distortion
® Flexible MES/ERP Integration
2X Productivity
Integrated conveyor system doubles productivity by
allowing barcode scanning, loading, unloading, and label
application while counting up to four reels in <30 seconds.
AI Technology
No programming or teaching required! AI technology
automatically recognizes components and built-in
sensors allow for automatic reel location.
Reliable Results
Superior x-ray technology and ultra-low parallax
distortion delivers the highest image contrast and
resolution and, as a result, the highest accuracy <99.8%
on counted components.
Industry 4.0 Ready
Easily integrate with a robot for advanced automation.
Open Interface allows data to be uploaded directly to your
ERP, optimizing inventory and resource management.
COPYRIGHT©2021 VJ ELECTRONIX, INC. — CONFIDENTIAL: FOR INTERNAL & REP USE ONLY | SG-CC | REV 7/28/21 2/22
XQUIK II PLUS AUTOLOAD - TECHNICAL SPECIFICATIONS
Maximum Reel Diameter
15in (380mm) or
(4)7in (178mm)
Maximum Reel Height 2.4 in (60mm)
Cycle Time: <30 seconds
Accuracy: >99.8%
Minimum Component Size: 01005 (0402mm)
Barcode Scan:
Manual Scan (Automatic
Option Available)
Applications:
Autoload: Reels
Manual Load: Reels,Tubes,
Trays, ESD Bags, PCB Insp.
PERFORMANCE
Machine Footprint:
71 x 31 x 78in
(1803 x 787 x 1980mm)
Machine Weight: 925lb (420kg)
Maximum Power: 1500W
Electrical Connection: 100 – 240 VAC
Detector Type:
High Contrast,
Ultra Fast, Linear
INSTALLATION
Cabinet Shielding: <0.1 mR/hr (1.0 uSV/hr)
Sample Size:
15.75 x 15.75in
(400 x 400mm)
Imaging Resolution: 100μm
Operating System: Microsoft Windows 10
Software:
VJE’s Proprietary Vi3 &
AccuCount™ Software
X-ray Source: Sealed
Power/Voltage/Current: 180W / 70kV / 3.5mA
Certification: IEC, CE, & FDA
TECHNOLOGY
OPTIONAL FEATURES
24” High Resolution Flat
Panel LCD Display in lieu of
standard monitor
Bar Code Reader (Manual)
Bar Code Reader
(Automatic)
Label Printer - Dymo
LabelWriter 450 Printer or
similar
Black Work Bench,
30x48x25/32.5H, Leveling
Feet, PC Shelf, includes
shipping box
Safety Shield with
Integrated Light Curtain
