Machine frame Page 26 / 34 19.11.2021
Machine frame
Page 25 / 34 19.11.2021
Machine frame
Page 26 / 34 19.11.2021

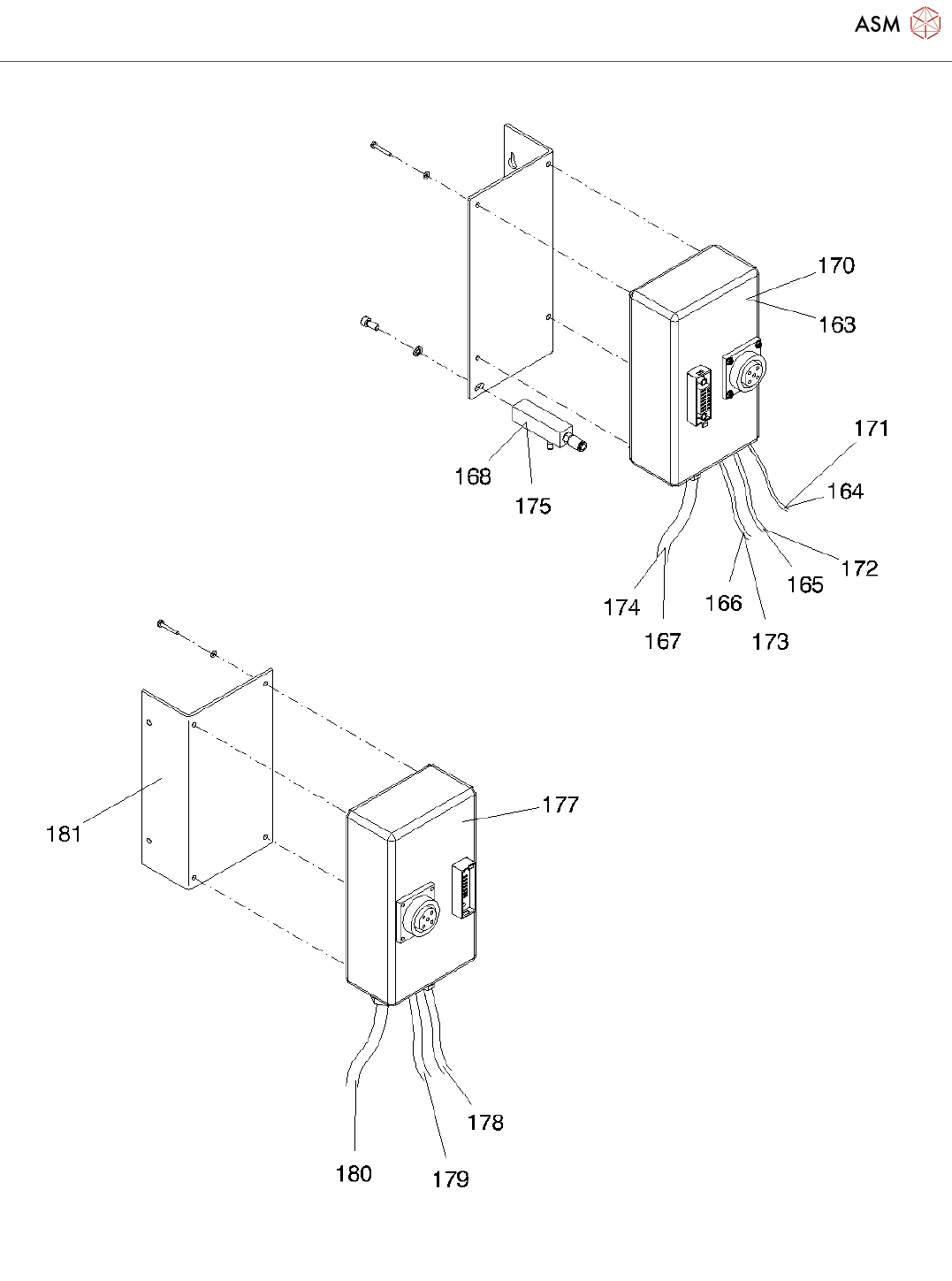

Machine frame
Page 27 / 34 19.11.2021
Pos. Item no. Description Part marking
00346230-01 MACHINE FRAME SIPLACE F5 HM
1 00346230-01 MACHINE FRAME SIPLACE F5 HM
2 00337146-04 BASIS FOR BASE UNIT S23
3 00346032-04 CONTAINER, SMALL
4 00334652-04 WELDED PART FRAME S25
5 00337613-05 U-PROFILE W. MOTOR SECTION S23
6 00346047-05 U-PROFILE W. SOCKET
7 00346037-01 COVER
8 00350252-01 HOOD
9 00346050-01 PROTECTION
10 00345988-01 PROTECTION
13 00346000-03 U-PROFILE
14 00346031-03 U-PROFILE
15 00321224-02 MACHINE BASE NORMAL HEIGHT
SIPL
SPARE PART
16 00321245-01 SPRING TYPE STRAIGHT PIN
17 00321225-01 MACHINE BASE HOLDER
18 00321226-01 MACHINE BASE REWORK
19 00304184-01 LOCK WITH DOUBLE BIT / BAR
20 00304191-01 DIN 43668 - 3 - C35 STANDARD PARTS
21 00337617-02 COVER ANGLE
22 00346062-01 COVER
23 00304635-02 SLIDING PLATE
24 00845027-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 16-8.8
25 00845031-01 HEXAGON SOCKET HEAD CAP
SCREW
26 00322191-03 SLIDING PLATE
27 00845027-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 16-8.8
28 00322190-02 SLIDING PLATE
29 00095312S01 SCREW M4*10 DIN965 Spare Part
30 00315645-01 DISTANCE BOLT
31 00312474-01 HEXAGON SOCKET HEAD CAP
SCREW
32 00354447-03 COVER RAIL Spare Part
