 TS1212  Pinch  Tube  Valve                   Item  Part  Number  Description  Item  Part  Number  Description  1  TSD922 ‐ 19  Barb  Fitting  7  1212 ‐ 000 ‐ 002  Flange  2  1212 ‐ …



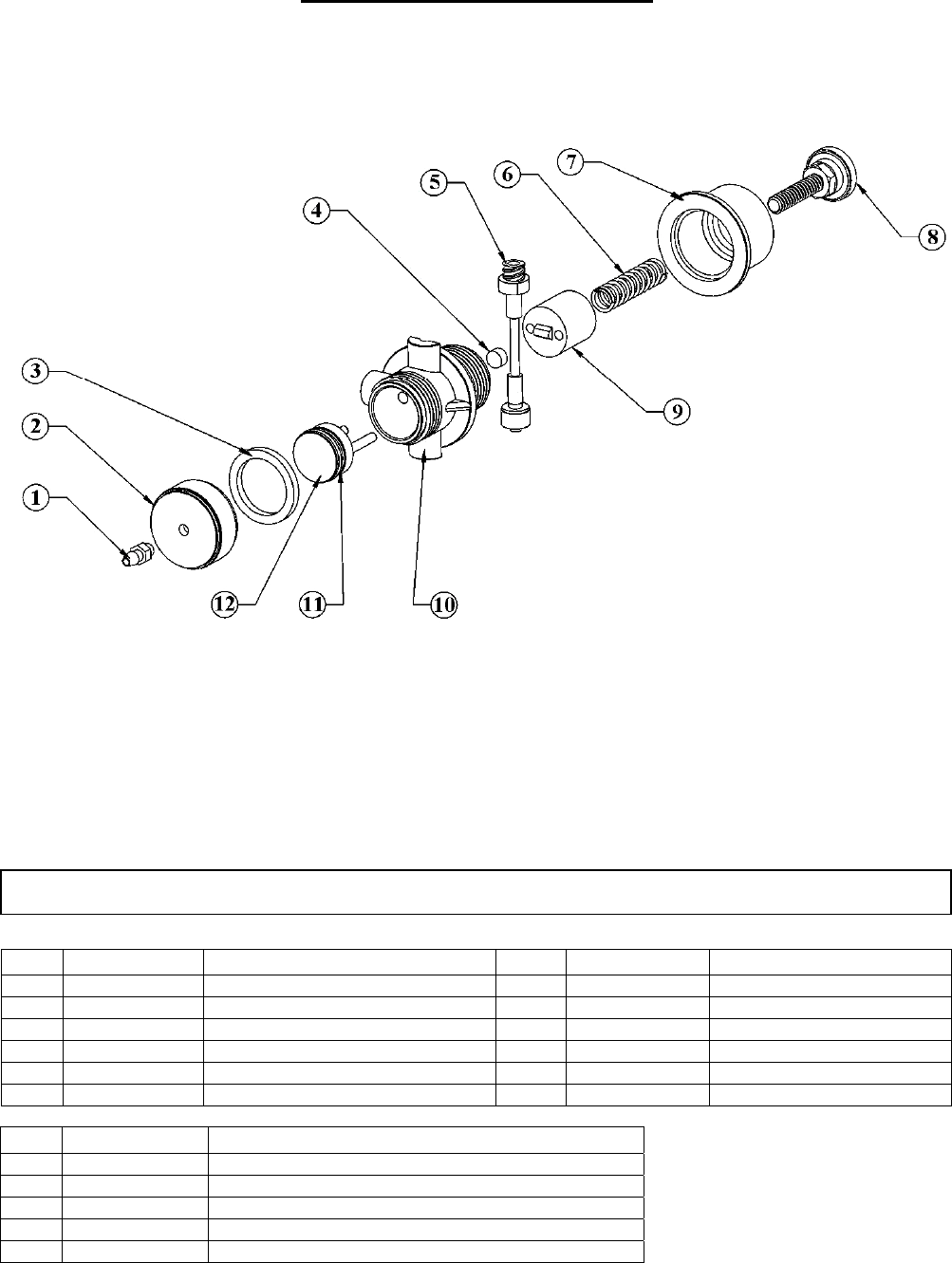

TS1212PinchTubeValve



Item PartNumber Description Item PartNumber Description

1 TSD922‐19 BarbFitting 7 1212‐000‐002 Flange

2 1212‐000‐003 CylinderCap 8 1212‐002‐000 AdjustmentKnobAssy

3 1212‐000‐007 Gasket 9 1212‐000‐004 ShutOffPiston

4 1212‐000‐005 PinchCushion 10 1212‐000‐001 Body

5 SEECHART PinchTube 11 TSD1399‐1 U‐CupSeal

6 3300‐0336 Spring 12 1212‐003‐000 PistonAssembly

Item PartNumber Description

5* 1212‐004‐002PK PinchTube,ClearPE,MaletoFemale,0.1''(2.54mm)ID

5* 1212‐004‐002BPK PinchTube,BlackPE,MaletoFemale,0.1''(2.54mm)ID

5* 1212‐004‐000PK PinchTube,ClearPE,MaletoFemale,0.07''(1.78mm)ID

5* 1212‐004‐100PK PinchTube,ClearPU,MaletoFemale,0.125''(3.18mm)ID

5* 1212‐004‐100BPK PinchTube,BlackPU,MaletoFemale,0.125''(3.18mm)ID

Lubrication:AllO‐Rings&sealsmustbelubricated withBimbaHT‐99,orequivalent.
