The next generation in patter n contr ol technology – simple, accurate, r eliable. Benefits n Simple, visual Optix™ patter n programming interface minimizes operator training. n Detailed diagnostics, advanced circuit pr o…
The next generation in
pattern control technology –
simple, accurate, reliable.
Benefits
n
Simple, visual Optix™ pattern programming interface
minimizes operator training.
n
Detailed diagnostics, advanced circuit protection, built-in
self-test and on-screen troubleshooting tips help keep your
line up and running.
n
Fast and exible installation and an automatic setup wizard
get your system up and running quickly.
n
System security is provided by password protection and sys-
tem backups through the front-mounted USB port.

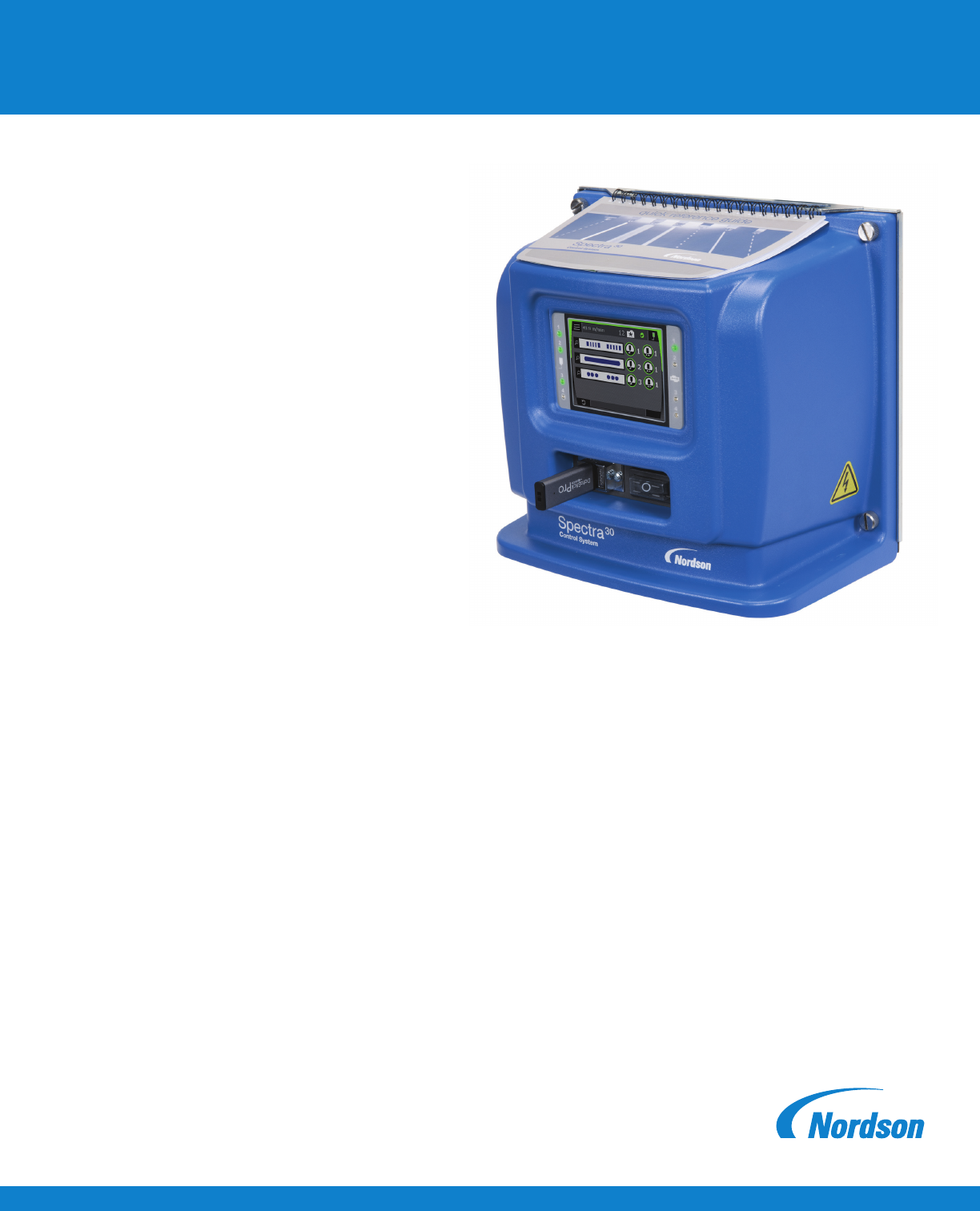

e innovative Spectra 30 control system reduces system
complexity and downtime while improving production eciency
and product quality. Available as either a time- or a distance-based
controller, Spectra 30 systems use Nordson’s Optix graphical
touch-screen interface to reduce the need for operator training.
A unique slide-on bracket with a exible VESA standard mounting
interface makes installation quick and easy, while a setup wizard
guides technicians step-by-step through the setup process.
For integration into an electrical cabinet, the Spectra 30 control
system is also available in a remote display version. In this version
the touch screen is mounted separately from the controller board.
Interconnecting cables are provided.
On-screen visual pattern programming allows operators to “see”
the adhesive pattern prior to application, while complete system
status is displayed in real-time right on the home screen. Your
Spectra control system will display only the components installed
on your line to minimize potential operator confusion.
Minimize product changeover by taking advantage of the 50-recipe
memory storage capacity. Pattern exibility supports a wide variety
of applications, with up to four (4) trigger inputs, four (4) pattern
channel outputs, 24 beads per channel and an array of pattern
types including: dotted, EcoBead™ (stitch), random length and
mirrored.
e built-in USB port provides a convenient method of backing
up system settings for safe storage. Also use a ash drive to quickly
and easily upgrade the software with new features as new releases
become available.
Your Spectra 30 system has the ability to expand as your needs
expand. Convert a time-based system to a distance-based system
when variable line speeds become a requirement. Add other
features like pressure run-up and remote recipe recall whenever
they are needed without any hardware changes.
Spectra
™
30
Control System
Nordson Corporation
11475 Lakeeld Drive
Duluth, GA 30097-1511
(800) 683-2314
nordson.com/hotmelt
Spectra
™
30 Control System
Specifications
Standard System Configurations Time Mode, standard (no license required)
Encoder/Distance Mode, with encoder license
Expanded I/O Option, with 2 pressure run-up outputs &
remote program recall licenses
Remote Display with encoder, 2 run-up outputs and remote program
recall licenses
Independent Pattern Channels 4 channels, 24 beads per channel
Independent Trigger Inputs 4 independently assignable (NPN, PNP or line driver)
Maximum Line Speed 300 m/min (985 ft/min)
Pattern Resolution/Accuracy 1 mm or 0.1 inch
Pattern Types Normal, dotted, EcoBead stitch, random length, mirror
Encoders 1 (quadrature or pulse, 24 VDC, 250 mA max.)
Pressure Run-up Outputs 2 (4-20 mA and 0-10 VDC)
Digital Input/Outputs Ready & Alert Outputs (24 VDC)
Fault Output (SPDT contact, 240 VAC, 2A max.)
System Disable Input
Remote Recipe Recall (5 inputs select one of 31 recipes)
Recipe Memory Up to 50 recipes
Input Voltage 100-240 VAC 1 Phase 50/60Hz, 1.6 Amp Maximum
Ambient Temperature Range
1
0 to 40°C (0 to 104°F)
Enclosure Rating IP44
2
1
0-50°C (0-122°F) with optional fan kit
2
IP54 with optional sealing kit
PKL-14-5854
Reissued 4/16
© 2016 Nordson Corporation
All Rights Reserved.
Printed in U.S.A.
Nordson reserves the right to
make design changes between
printings.
For more
information,
speak with your
Nordson
representative
or contact
your Nordson
regional office.
United States
Duluth, Georgia
(800)234-0506 Phone
(866) 667-3329 Fax
Canada
Markham, Ontario
(800) 463-3200 Phone
(905) 475-8821 Fax
Europe
Erkrath, Germany
(49) 211-9205-0 Phone
(49) 211-254658 Fax
Japan
Tokyo, Japan
(81) 3-5762-2700 Phone
(81) 3-5762-2701 Fax
Asia/Australia/
Latin America
Amherst, Ohio
(440) 985-4797 Phone
(440) 985-1096 Fax
Find us on:
148
5.82
245
9.64
248
9.76
100
3.94
75
2.95
100
3.94
75
2.95

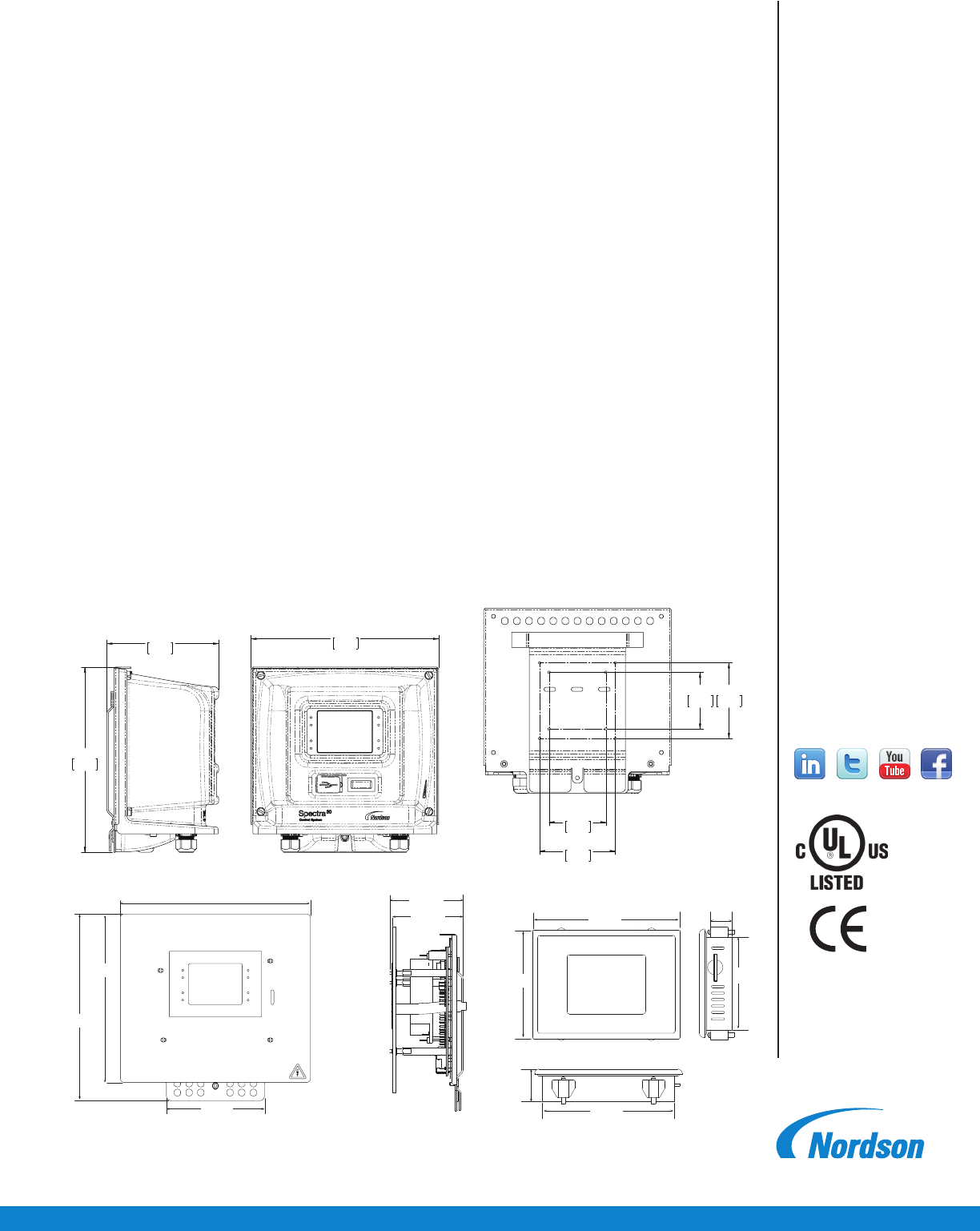

Dimensions
mm (in.)
Mounting Plate
Remote Display Version
Remote Display Mounting
260
[ 10.23 ]
98
[ 3.85 ]
101.5
[ 3.99 ]
134
[ 5.27 ]
230
[ 9.05 ]
255
[ 10.03 ]
136
[ 5.35 ]
85.7
[ 3.37 ]
25
[ .98 ]
100
[ 3.39 ]
30
[ 1.18 ]
121.60
[ 4.78 ]
