GAS NOZZLES – FOR SMT COMPONENTS
Swiss Engineering
Y GAS NOZZLES
For PBGA, TBGA, CBGA, CCGA SBGA
Y Gas Nozzle
• Distance to the next component: min. 1.0 mm
• The vacuum tube is adjustable
Order No. Component dimension in mm
W1 W2 W3 W4 H1
CH N 488 Y 488 12.1 12.1 7
CH N 1235 Y 1235 31.1 31.1 7
CH N 1244 Y 1244 31.3 31.3 7
CH N 1345 Y 1345 33.9 33.9 7
CH N 1393 Y 1393 35.1 35.1 7
CH N 1483 Y 1483 37.4 37.4 7
CH N 1582 Y 1582 39.9 39.9 7
CH N 1590 Y 1590 40.1 40.1 7
CH N 1688 Y 1688 42.6 42.6 7
X GAS NOZZLES
For PBGA, TBGA, CBGA, CCGA SBGA
X Gas Nozzle
• Distance to the next component: min. 3.0 mm
• Vacuum tube is adjustable
Order No. Component dimensions in mm
W1 W2 W3 W4 H1
CH N 400 X 400-11 9.9 9.9 0.7
CH N 562 X 881-17 14.0 22.1 1.3
CH N 687 X 687-15 17.2 17.2 1.1
CH N 842 X 842-20 21.1 21.1 1.6
CH N 921 X 921-22 23.1 23.1 1.8
CH N 1081 X 1081-15 27.2 27.2 1.1
CH N 1232 X 1232-17 31.0 31.0 1.3
CH N 1433 X 1433-17 36.1 36.1 1.3
CH N 1594 X 1594-18 40.2 40.2 1.4
CH N 1606 X 1606-22 40.5 40.5 1.8
Examples
Examples
NS Y GAS NOZZLES
For μBGA, CSP, Flip Chip
NS Y gas nozzle
• Distance to the next component: min. 1.0 mm
• The vacuum tube is adjustable
Examples
Order No. Component dimensions in mm
W1 W2 W3 W4 H1
CH NS 242 Y 320-16 5.9 7.9 1.4
CH NS 362 Y 462-20 8.9 11.5 1.6
CH NS 403 Y 442-20 10.0 11.0 1.6
CH NS 562 Y 881-17 14.0 22.1 1.3
CH NS 595 Y 595-17 14.9 14.9 1.3
CH NS 600 Y 600-16 15.0 15.0 1.2
CH NS 842 Y 842-20 21.1 21.1 1.6
CH NS 995 Y 995-18 25.0 25.0 1.4
CH NS 1389 Y 1389-20 35.0 35.0 1.6
CH NS 1586 Y 1586-20 40.0 40.0 1.6
DVG GAS NOZZLES
For μBGA, CSP, Chip 01005, 0201, 0402, ...
DVG gas nozzle
• Distance to the next component: 0.0 mm
• The vacuum tube is adjustable
Examples
Order No. Ø Nozzle (outside) Ø Vacuum tube (inside)
Dimensions in mm Dimensions in mm
CH N 28 DVG-02 7.0 0.2
CH N 28 DVG-2 7.0 2.0
CH N 36 DVG-04 9.0 0.4
CH N 36 DVG-2 9.0 2.0
CH N 36 DVG-3 9.0 3.0
Swiss Engineering
GAS NOZZLES – FOR SMT COMPONENTS

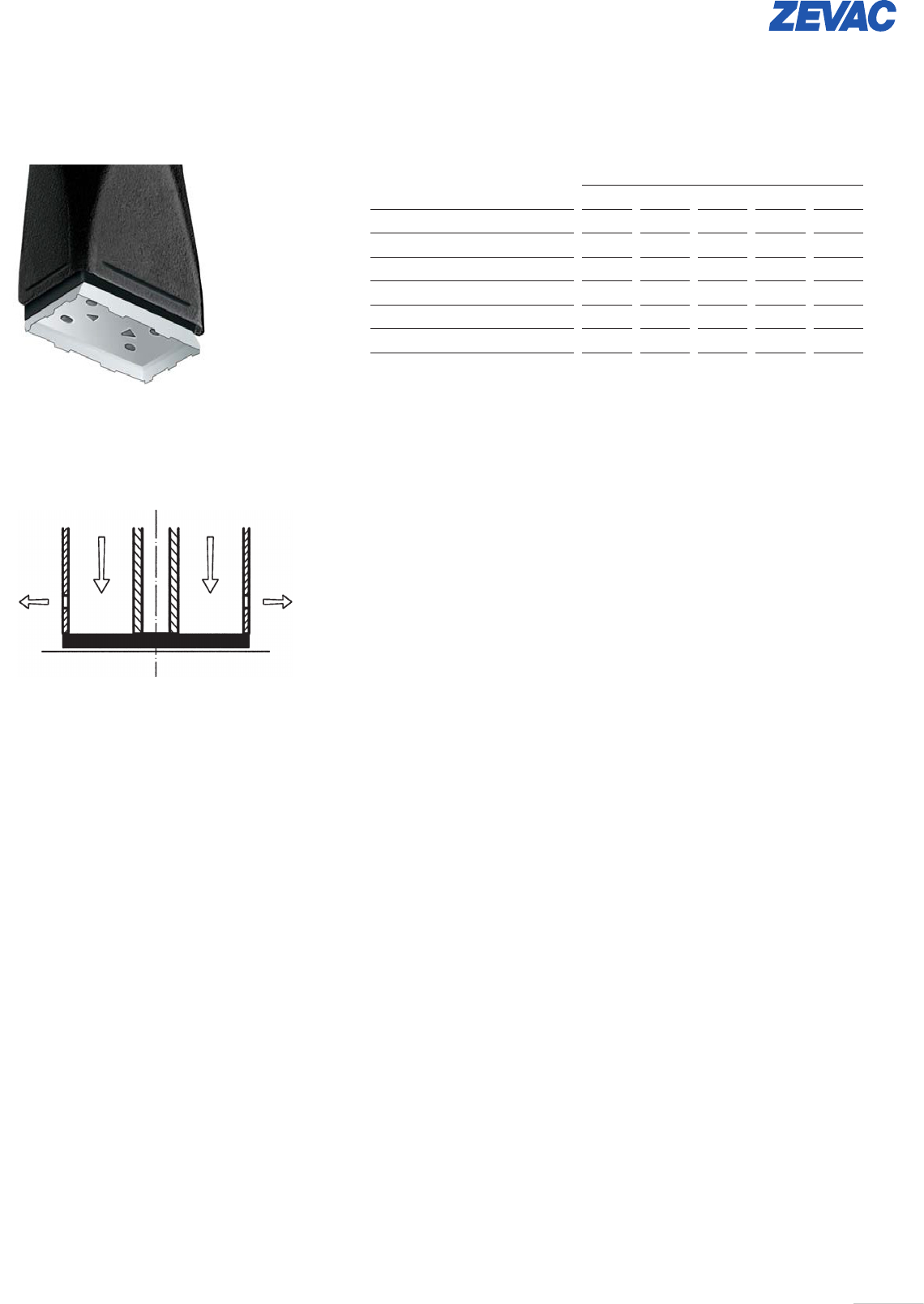

NSY GSH GAS NOZZLES
For shieldings
Examples
NS Y GSH gas nozzle
• Distance to the next component: min. 1.0 mm
• The vacuum tube is adjustable
Ordner No. Component dimensions in mm
W1 W2 W3 W4 H1
CH NS 758 Y 1544 GSH 19.0 39.0
CH NS 972 Y 1241 GSH 24.4 31.3
CH NS 990 Y 1242 GSH 24.9 31.3
CH NS 1278 Y 1295 GSH 32.2 32.6
CH NS 1285 Y 1301 GSH 32.4 32.8
CH NS 1453 Y 1494 GSH 36.7 37.7
Swiss Engineering
