Gener al F amil y H87 9 Pitch [mm/mil] 2.54 / 100 Mechanical specifications Internal thread 2.0 X0 .25 Dimensions T otal length [mm] 13. 00 Press ring diameter [mm] 2.35 Outer diameter [mm] 2. 15 Collar height [mm] 0.20 …
General
Family H879
Pitch [mm/mil] 2.54 / 100
Mechanical specifications
Internal thread 2.0X0.25
Dimensions
Total length [mm] 13.00
Press ring diameter [mm] 2.35
Outer diameter [mm] 2.15
Collar height [mm] 0.20
Accessories
H879
Order code 1017237

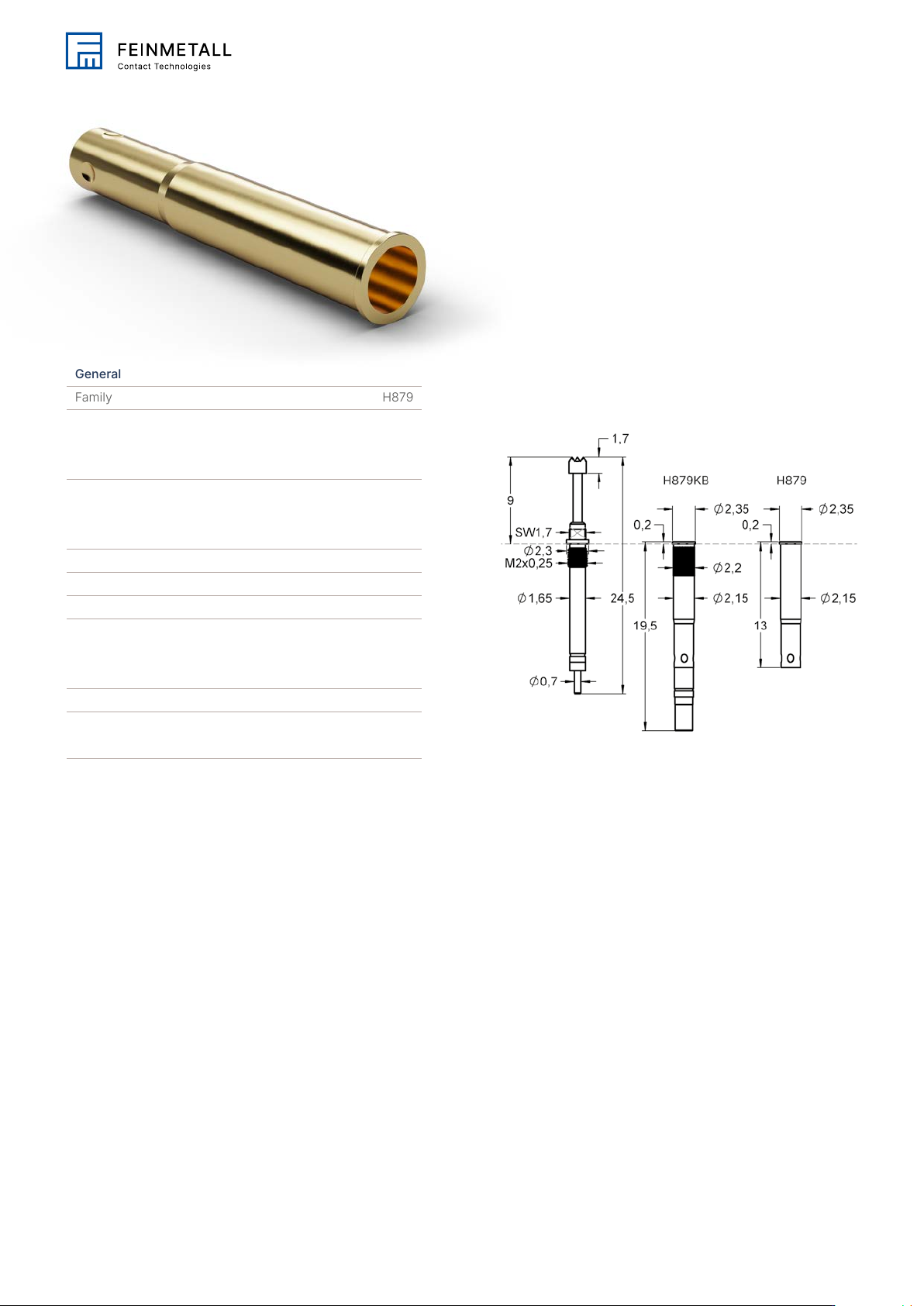

Family drawing
All measurements are in mm.
