VEGO Series – A New Generation of Handling Modules
VEGO Dynamic
Options
_ Electric - automatic width adjustment
_ Magazine plattform for roboter handling
_ Shutter at the outlet
_ Additonal shutter to light grid
_ Turnable extractor
_ Extractor below transport level
_ Magazine opener
_ Transport direction right to left
_ Dual-lane operation
_ Multiple PCBs per slot
_ PCB weight up to 6kg
_ Equipment for thin PCBs (<0.5 mm)
AES03_Speed_VEGO_Dynamic_230130_DS_CC_E
Description
The line loading station AES 03 Speed is used to automati-
cally feed PCB´s into a SMT-production line or into individual
process machines e.g. stencil printers, pick and place sys-
tems, reflow ovens or test systems.
The PCBs are taken out of the magazine with an extractor
mechanism and pulled onto the handover conveyor. The
handover conveyor moves sideways on an integrated shuttle
lift unit to the handover position and the PCB is subsequently
handed over.
The system is characterized by its short cycle time. The open
magazine table is fixed in position and provides easy access
to the magazines. Automatic switching to the next full maga-
zine.
Features
_ Platform for 2, 3 or 4 magazines
_ Transfer conveyor with integrated shuttle lift mechanism
_ Vertical magazine alignment with horizontal clamp
_ Fix magazine exchange position
_ Access to the magazine via the side of the machine
_ Touch Display with graphical user interface
_ Product parameters can be changed during
running operation
_ Product memory function

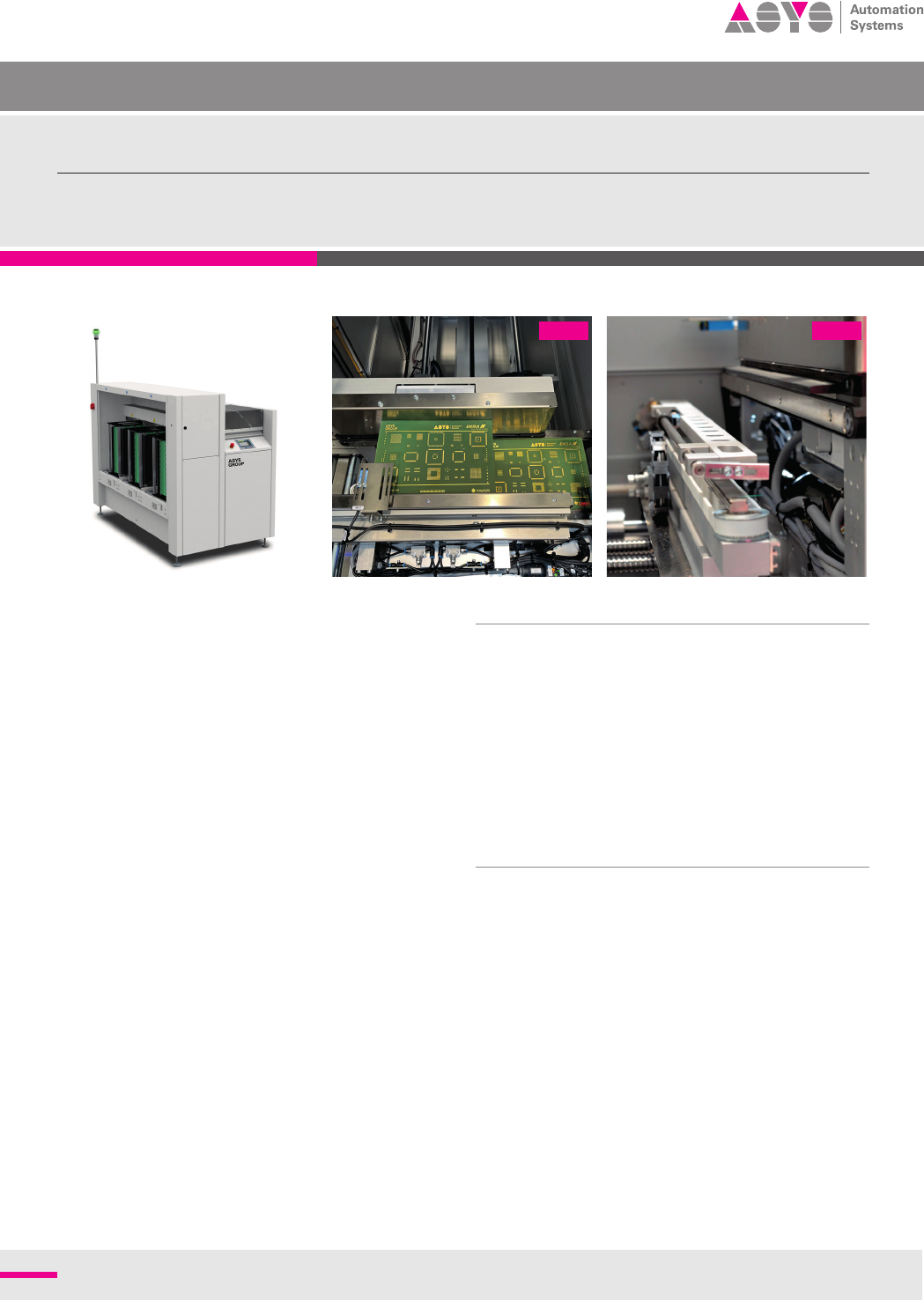

VEGO AES 03 Speed
Line loader with capacity for three magazines
Option Option
ASYS Automatisierungssysteme GmbH
Benzstrasse 10,
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys.de
For more information visit
www.asys-group.com
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specifications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
www.asys-group.com

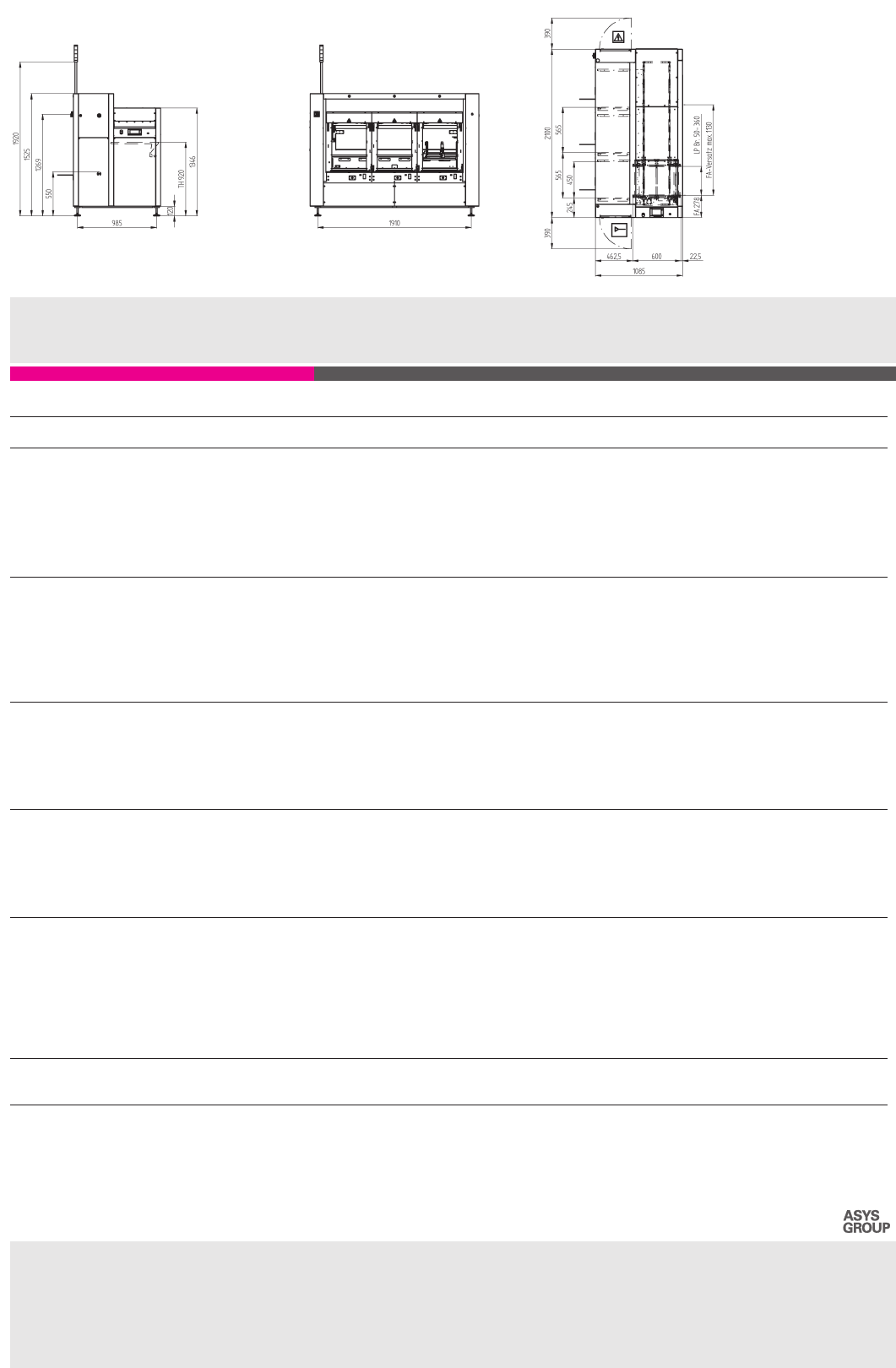

VEGO AES 03 Speed
Type 1 Type 2 Type 2.1 Type 3
Machine Configuration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
920 mm ± 50 mm
a)
360 mm
SMEMA, Siemens
Left to right
Front of the machine
Front of the machine
920 mm ± 50 mm
a)
360 mm
SMEMA, Siemens
Left to right
Front of the machine
Front of the machine
920 mm ± 50 mm
a)
460 mm
SMEMA, Siemens
Left to right
Front of the machine
Front of the machine
920 mm ± 50 mm
a)
460 mm
SMEMA, Siemens
Left to right
Front of the machine
Front of the machine
Magazine Size
Magazine length
Magazine width
Magazine heigth
Slot spacing
Buer spacing
Number of magazines
355 - 400 mm
320 - 430 mm
570 mm
5 - 20 mm
1 - 50 Slots
2
355 - 400 mm
320 - 430 mm
570 mm
5 - 20 mm
1 - 50 Slots
3
355 - 540mm
320 - 530mm
570 mm
5 - 20 mm
1 - 50 Slots
2
355 - 540 mm
320 - 530 mm
570 mm
5 - 20 mm
1 - 50 Slots
3
b)
Panel Dimensions
Panel length
Panel width
Panel thickness
Component clearance
Panel weight
100 to 400 mm
c)
50 to 360 mm
0.5 to 4.5 mm
+12,5 mm
d)
/-40mm
to 3 kg
100 to 400 mm
c)
50 to 360 mm
0.5 to 4.5 mm
+12,5 mm
d)
/-40mm
to 3 kg
100 to 540 mm
c)
50 to 460 mm
0.5 to 4.5 mm
+12,5 mm
d)
/-40mm
to 3 kg
100 to 540 mm
c)
50 to 460 mm
0.5 to 4.5 mm
+12,5 mm
d)
/-40mm
to 3 kg
Installation Requirements
Power supply
Power supply system
Power consumption
Air supply
230 V / 115 V, 50 / 60Hz,
± 10%
L1 + N + PE
0.5 kW
6 bar/ 5 Nl/min
230 V / 115 V, 50 / 60Hz,
± 10%
L1 + N + PE
0.5 kW
6 bar/ 5 Nl/min
230 V / 115 V, 50 / 60Hz,
± 10%
L1 + N + PE
0.5 kW
6 bar/ 5 Nl/min
230 V / 115 V, 50 / 60Hz,
± 10%
L1 + N + PE
0.5 kW
6 bar/ 5 Nl/min
Machine Description
Length x Width x Height
Netto weight
Noise Level
Cycle time
Cycle time with shutter at the outlet
1085 x 1535 x 1525 mm
350 kg
< 75 dB
10 sek. (min.8 - max.11,5
sek)
13 sek. (min.10,5 -
max.14 sek.)
1085 x 2100 x 1525 mm
400 kg
< 75 dB
10 sec. (min.8 - max.12
sec.)
13 sec. (min.10,5 -
max.14,5 sec.)
1370 x 1735 x 1525 mm
400 Kg
< 75 dB
11 sec. (min.9 - max.13
sec.)
14 sec. (min.11,5 -
max.15,5 sec.)
1370 x 2400 x 1525 mm
500 kg
< 75 dB
13 sec. (min.10 - max.15
sec.)
15,5 sec. (min.12,5 -
max.17 sec.)
Upgrades
Machine networking via IC Net
a) Other transport height on request
b) Optional for 4 magazine, magazine width 320 mm
c) Other formats on request
d) Optional +25 mm; others on request
