TA HMA-Filter Filter Filter (Option) Ta nk A Cleaning Ta nk B Pre-Rinsing Rinsing cycle Cleaning cycle Cleaning System Ta nk C DI / DM Rinsing Fresh / recycled rinse water Usable rinse water Contaminated rinse water Clos…
Main options
□ Automatic detergent concentration measurement / control
□ Automatic XL-re-dosage unit for 25 l detergent and 5 l additive container
□ Carriers for slot inserts
□ Descaling unit to reduce the lime content in the rinsing water
□ Drip & storage reservoir
□ Exhaust unit
□ HMA filter (Heavy Metal Adsober) unit for the cleaning cicuit
□ MB / DI cartridge for deionized (DI) and demineralized (DM) water
□ Paint of choice (frame rack and coverings)
□ Permanent automatic rotor run control
□ Remote Control (remote monitoring, mailing, etc.)
□ RMA Remote Maintenance Assistance (factory controlled maintenance support)
□ Status light fivefold to display the current process state
□ Traceability "Basic" with SPC data scanner, data backup in CSV file, backup via SD card (via slot in the PLC)
□ Traceability "Comfort" with PLC data scanner and retractable touch monitor and industrial PC with Intel processor
□ XL-Power pump units for tank B and tank C
Page 4 of 6
Part number: 0905AQ9XV731
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for DCB and PCB cleaning
11/2020
AQUBE
®
XV9
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020
TA
HMA-Filter
Filter
Filter
(Option)
Tank A
Cleaning
Tank B
Pre-Rinsing
Rinsing cycleCleaning cycle
Cleaning System
Tank C
DI / DM
Rinsing
Fresh / recycled rinse water
Usable rinse water
Contaminated rinse water
ClosedLoop
ClosedLoop
TB
TC
Filter
Filter
Filter
Page 5 of 6
11/2020
Part number: 0905AQ9XV731
Fully automatic high end 3-tank, 3-circuit PowerSpray
®
XXL
ultra-fine cleaning system for DCB and PCB cleaning
AQUBE
®
XV9
Internal rinse water processing (standard) Options* for water management
WPSD IU SYMBIO-module
Processes mandatory disposable sewage water to be
discharged into a public sewage network.
WPCL IUT3 SYMBIO-module
Recycles DI / DM water for recirculation and multiple reuse in
the cleaning systems clear rinsing cycle.
* Operating companies of industrial cleaning systems are responsible for proper disposal of wastewater / rinse water
and (wasted) cleaning detergent. Further information on wastewater management at www.kolb-ct.com/systems/water-
management/, consulting requests to info@kolb-ct.com
Made in Germany
CLEANING TECHNOLOGY
kolb Cleaning Technology GmbH ▪ Karl-Arnold-Str.12 ▪ D - 47877 Willich ▪ Phone: +49 (0) 2154 9479 - 38 ▪ Fax: +49 (0) 2154 9479 - 47 ▪ e-mail: info@kolb-ct.com ▪ www.kolb-ct.com
All rights for changes reserved that lead to technical improvement. © kolb GmbH 2020

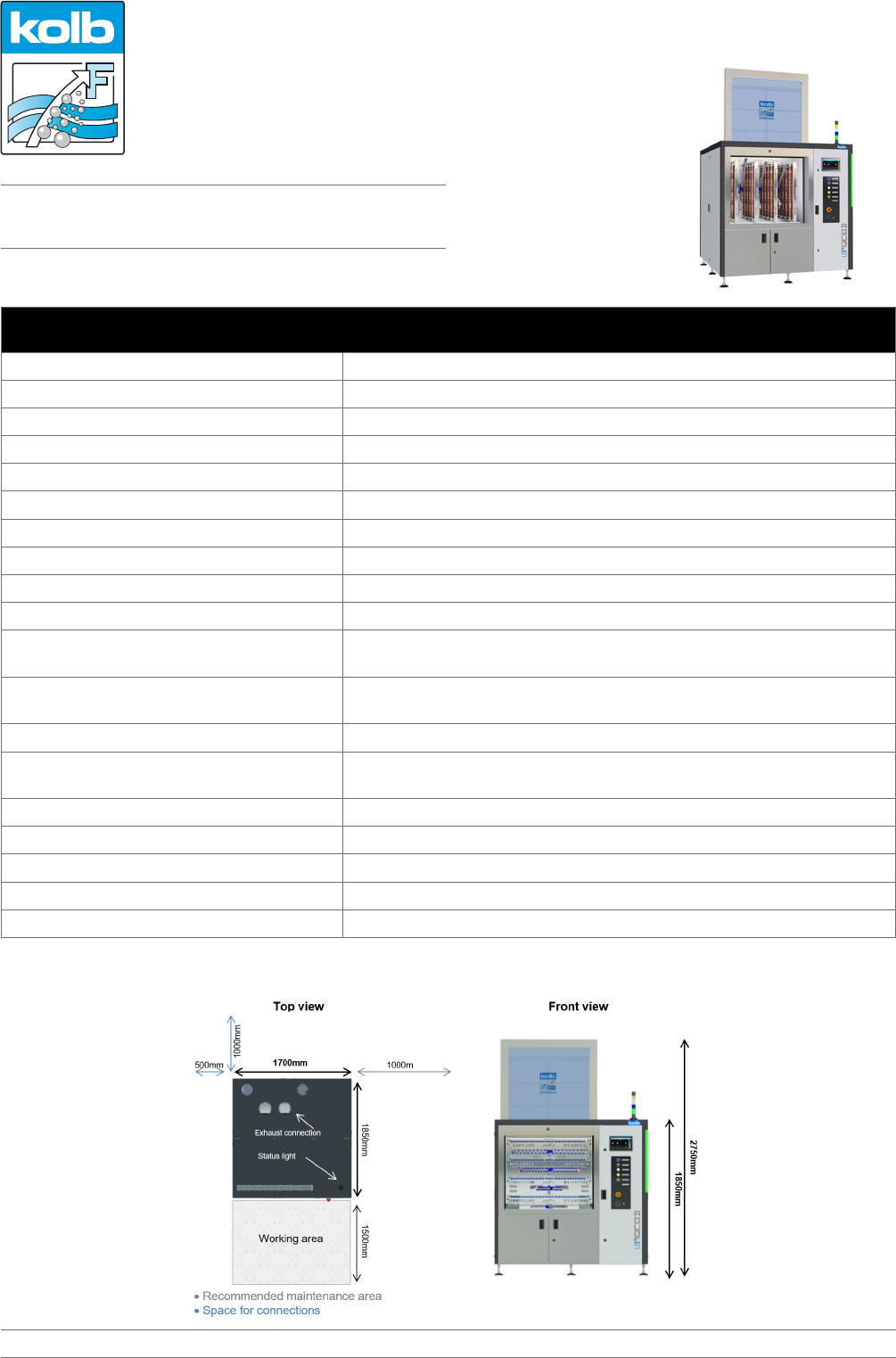

Technical data
Technology base kolb PowerSpray
®
Capacity 64 DCB panels 5“ x 7“ or 100 eurocards
Process chamber dimensions W 970 ▪ D 955 ▪ H 900 mm (W 38.18" ▪ D 37.59" ▪ H 35.43")
Usable chamber dimensions 4 slots: W 77 - 110 ▪ D 900 ▪ H 800 mm (W 3.03 - 4.33" ▪ D 35.43" ▪ H 38.5")
Volume tank A (cleaning), tank C (DI-rinsing) 125 l each
Volume tank B (rinsing) 100 l
Power supply 400 V AC, 32 A, CEE-plug / 3 Ph / 50 or 60 Hz
Power consumption 12.5 kW
Control system PLC (EATON)
Temperature load up to 55 °C
Filter system
up to four stages - 1. Full flow coarse filter < 2mm (0.08"), 2. Sediment filter
inside the tank, 3. 20“ fine filter (1 - 100 µm - process dependent), 4. HMA filter
Supply connection 1 (tap water)
connection for 1" hose, with 30µm water filter (prov. by customer: inlet water
quality < 350 μS conductance value (< 10° dH) or option descaling unit)
Supply connection 2 (DI / DM water) connection for 1" hose, (DI-net prov. by customer or bridging to tap water)
Supply connection 3 (compressed air)
6 - 8 bar (87 - 116 psi) - 100 l / min for options HT-version or MediumWipe
®
,
connection for 8 mm (0.31") compressed air hose
Rinse water drain connection (with integrated pump out system ) connection for 1" hose
Exhaust connection Ø 160 mm (6.3"), exhaust capacity > 1,100 m
3
/ h (38,847 ft
3
/ h)
Operating condition room temperature 20 - 35 °C (68 - 95 °F)
Operating noise 63 dB (A)
Footprint / Empty weight 1,700 x 1,850 mm (66.9" x 72.8") / 920 kg (2,028 lbs)
