FG-S005-01
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
171 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
172 4111413100 WASHER SPR 8 4 SW8 221H0291
173 4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
174 4110864408 WASHER SPR 3 8 SW3 F 221H0280
175 4111191909 WASHER V 3X7X0.5 8 FW3 F 221H0311
181 6300007503 BOLT,HEX-SCT 4 M3X6
806TRA110050-A101
221A0005
182 4111412806 WASHER SPR 3 4
806TRA110050-A102
221H0281
183 4111413902 WASHER V 3X7X0.5 4
806TRA110050-A103
221H0312
184 4110407803 SCR PAN 3X12 4
806TRA110050-A104
221E0489
185 4110864408 WASHER SPR 3 4
806TRA110050-A105
221H0280
186 4111191909 WASHER V 3X7X0.5 4
806TRA110050-A106
221H0311
187 23N30737 ACCESSORY_WIRIN 2 23N30737
FP-G100R
FG-S005-01
TR-2
TR-2 list-2
MEMO
FG-S005-01
0805-001
167
166
.
152
.
169
168
.
154
.
121
105
121
106
108
167
166
.
152
.
169
168
.
154
.
167
166
.
152
.
121
106
121
105
109
144
167
166
.
152
.
171
170
.
155
.
135
143
161
171
170
.
155
.
136
144
143
161
130
118
123
1
19
123
120
125
1
16
1
17
124
145
137
126
125
163
153
1
11
112
1
13
101
173
172
.
156
.
151
151
1
16
125
1
17
124
125
163
126
137
175
174
.
162
.
175
174
.
162
.
175
174
.
162
.
175
174
.
162
.
注) Key No.121,122,130(○印)は重要保守部品となっております。交換方法について
は高度な技術を要しますので、当社サービス員にご相談下さい。 
Notice) The Key No.121 and 122 and 130 (with a circle) is an im
portant maintenance
component.
Because high-grade technique is required for the r
eplacement of this component,
consult our service personnel.
122
186
185
.
184
.
183
182
.
181
.
131
186
185
.
184
.
183
182
.
181
.
131
132
122
187
133
187
133
トラバース部
(FG-S005-01)

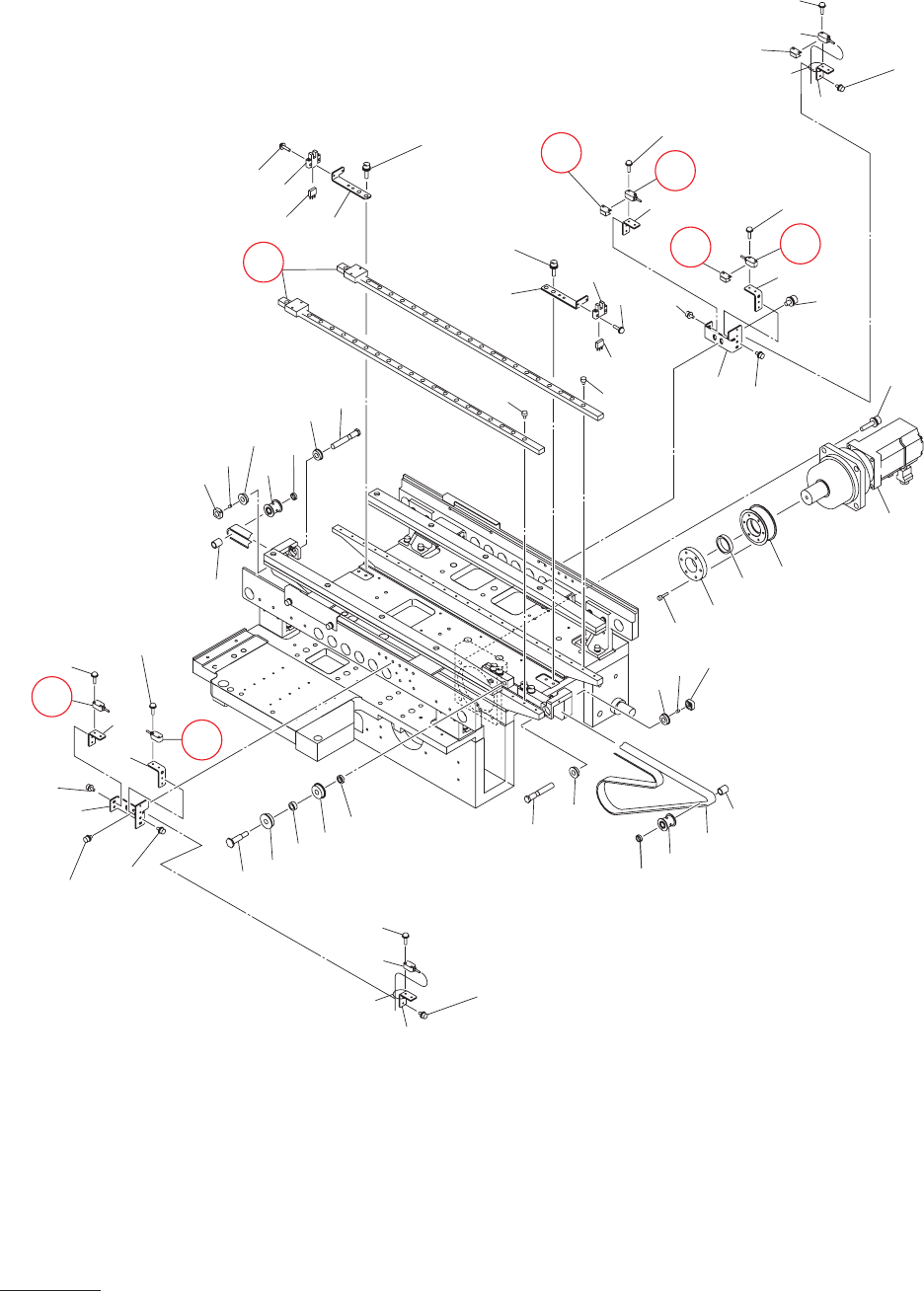

TRAVERSE SECTION(FG-S005-01)
Fig. TL-2
トラバース駆動部
Traverse Driving Section
TL-2 illust-1
