Gener al Design Basic Cont act Pr obe Family F100 Pitch [mm/mil] 2.54 / 100 Additional definition RP Electrical specific ations T ypical cont act resistance …
General
Design Basic Contact Probe
Family F100
Pitch [mm/mil] 2.54 / 100
Additional definition RP
Electrical specifications
Typical contact resistance [mOhm] 20.00
Mechanical specifications
Spring force [cN] 200.00
Nominal travel [mm] 4.30
Maximum travel [mm] 6.40
Pointing accuracy +/- [mm] 0.35
Dimensions
Total length [mm] 33.30
Tip style diameter [mm] 0.60
Barrel diameter [mm] 1.37
Materials & surfaces
Tip style 10
Plunger material Steel
Plunger plating Longtime Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Contact Probes
F10010S060L200RP
Order code 1158306

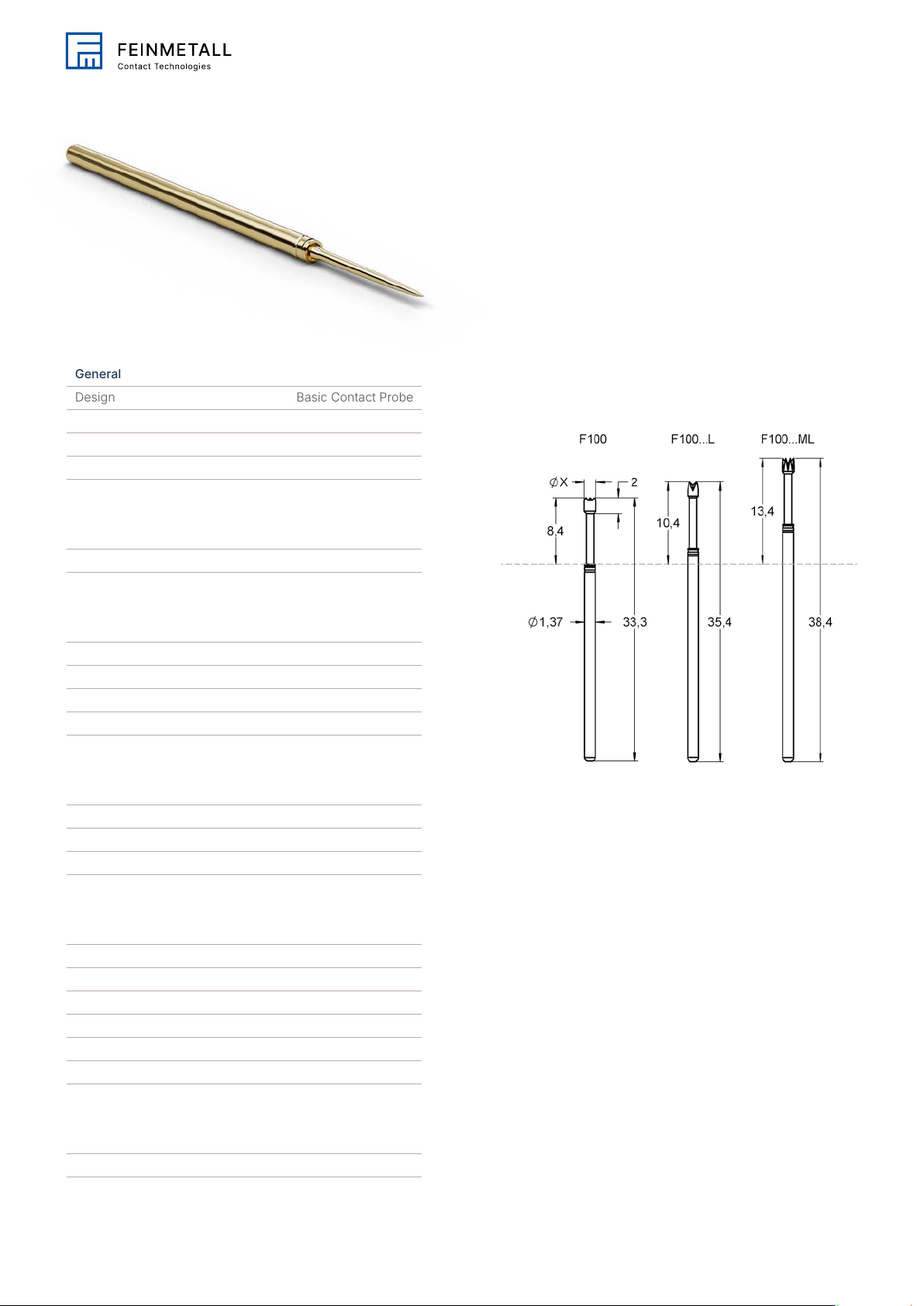

Family drawing
All measurements are in mm.
