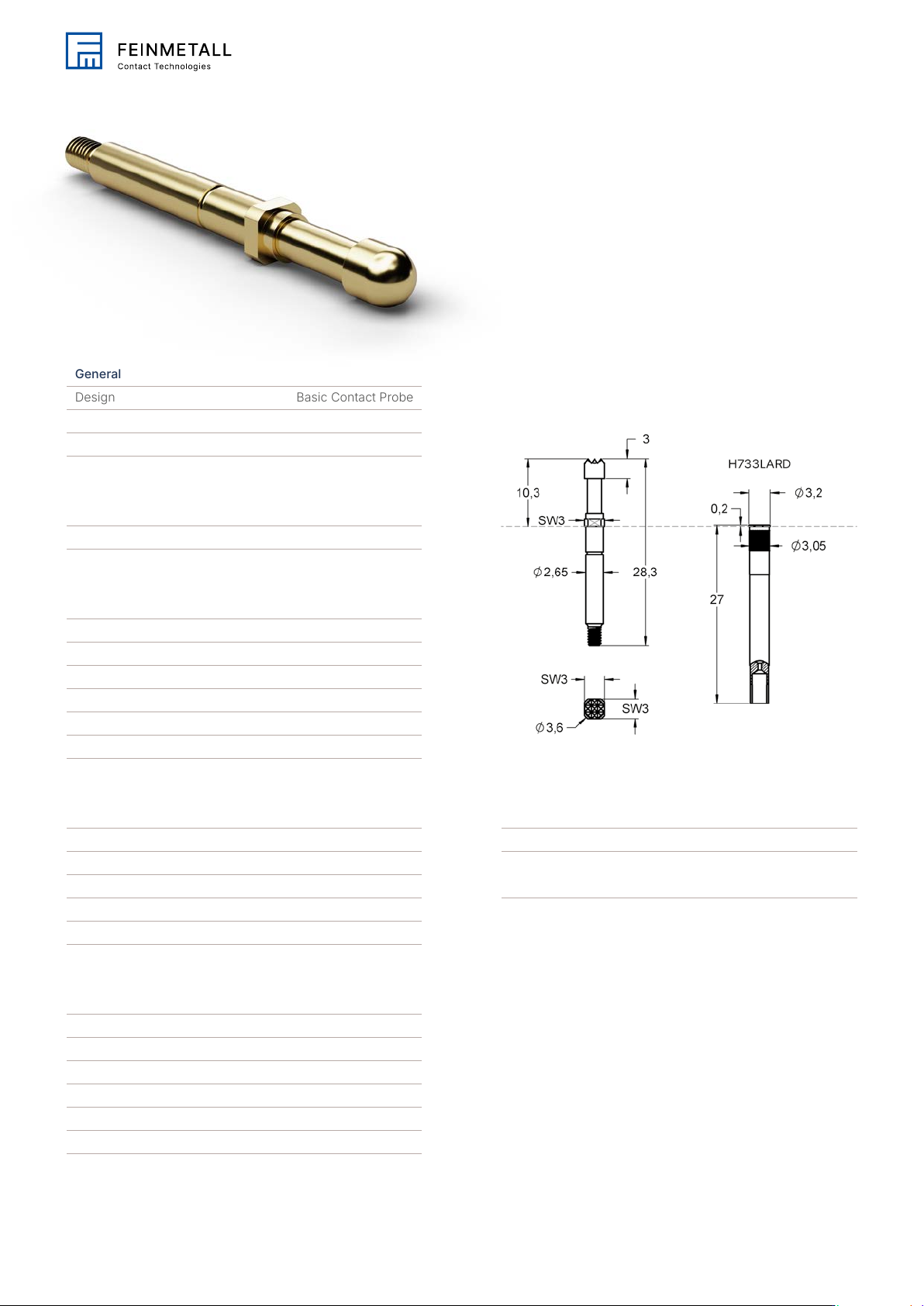

General
Design Basic Contact Probe
Family F733
Pitch [mm/mil] 4.00 / 157
Electrical specifications
Typical contact resistance [mOhm] 25.00
Mechanical specifications
Preload [cN] 80.00
Spring force [cN] 300.00
Nominal travel [mm] 4.00
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.10
Thread M2
Tool size [mm] 3.0
Dimensions
Total length [mm] 28.30
Projection height [mm] 10.30
Tip style diameter [mm] 3.00
Barrel diameter [mm] 2.65
Collar diameter [mm] 3.60
Press ring diameter [mm] 3.60
Materials & surfaces
Tip style 12
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Threaded Probes
F73312B300G300
Order code 1001664
Family drawing

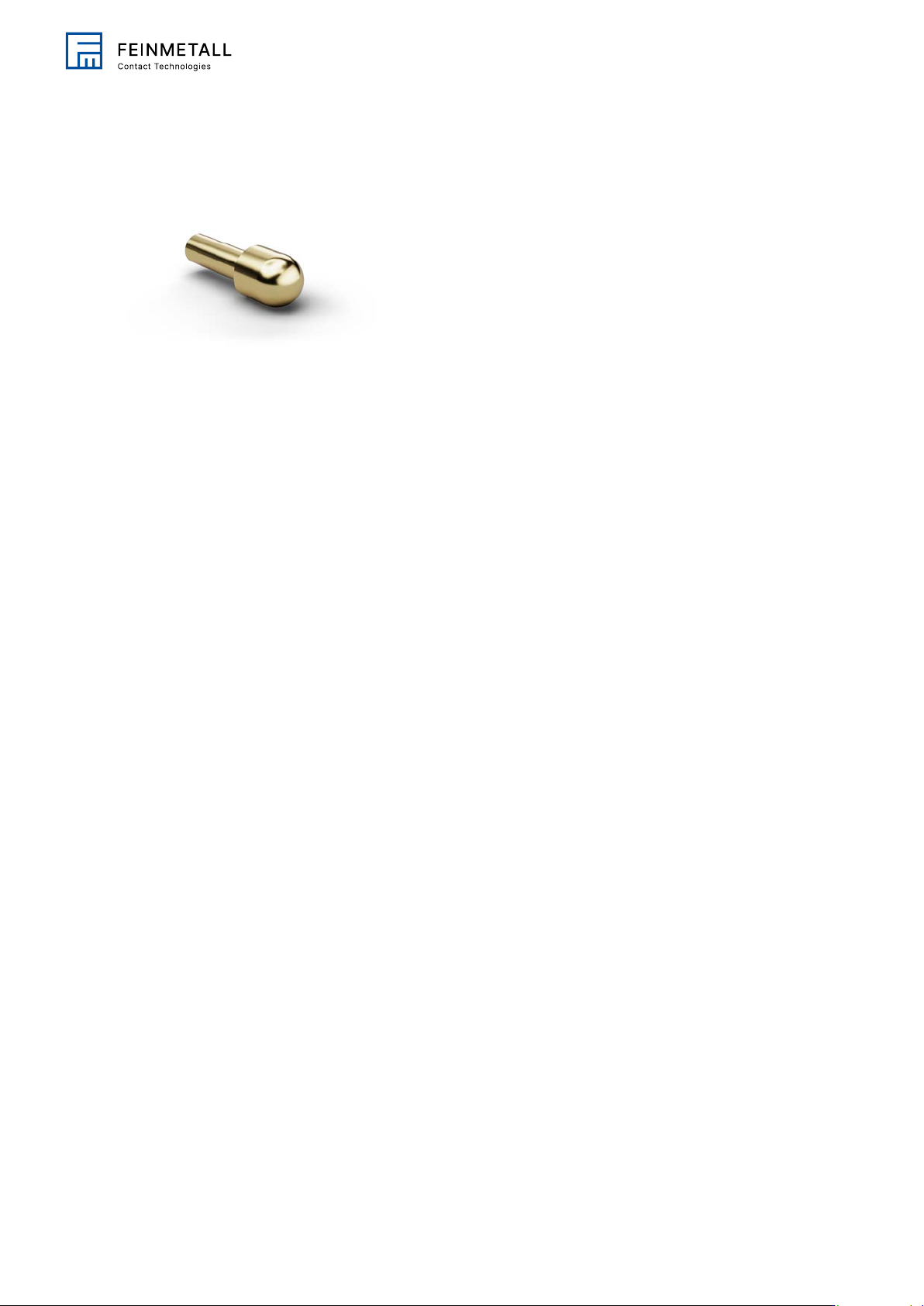

Tip style 1
