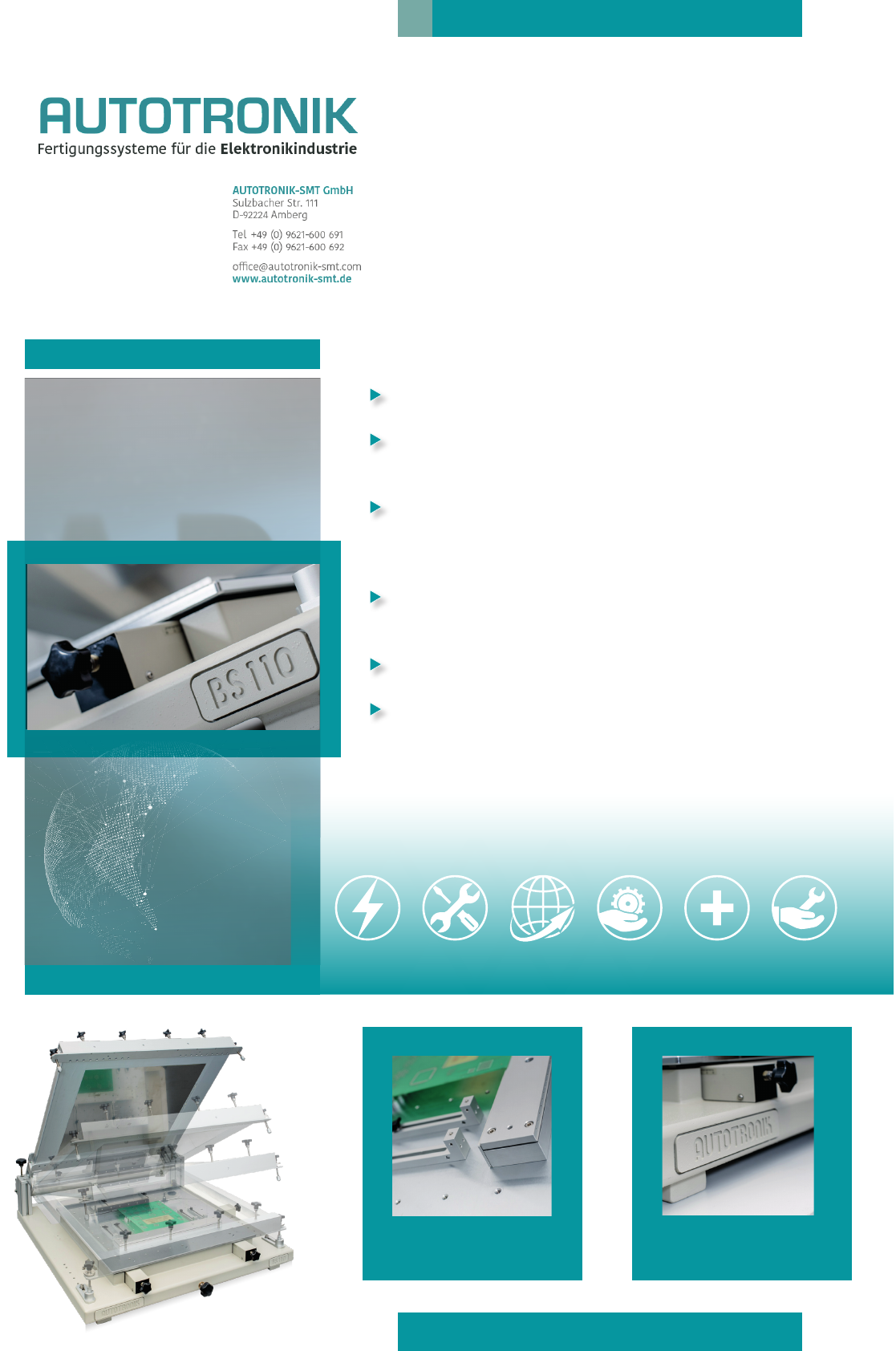

M ODEL: BS110 MANUAL STENCIL & SCREEN PRINTER Unbeatable Service Worldwide for you! Specialist in small and medium-sized manufacturing. All from one hand. Innovative Features Quality & innovation at a fair price.…
MODEL:
BS110
MANUAL
STENCIL & SCREEN PRINTER
Unbeatable
Service
Worldwide
for you!
Specialist in small
and medium-sized
manufacturing.
All from
one hand.
Innovative
Features
Quality &
innovation at
a fair price.
Guiding setup of single- or double-si-
ded circuit boards. Stops ensure a
constant same positioning.
Align the PCB to the template using
adjustment screws on the X / Y / R axes
Fast print alignment and repeatability
Stencil frame size:
300 x 300 mm - 740 x 740 mm
Work table size:
610 x 610 mm
610 x 1200 mm (optional)
Repeatability:
+/- 0.02 mm
Applicable for most standard SMT screens
Easy set-up and clean-up
*We reserve the right to make changes without notice.

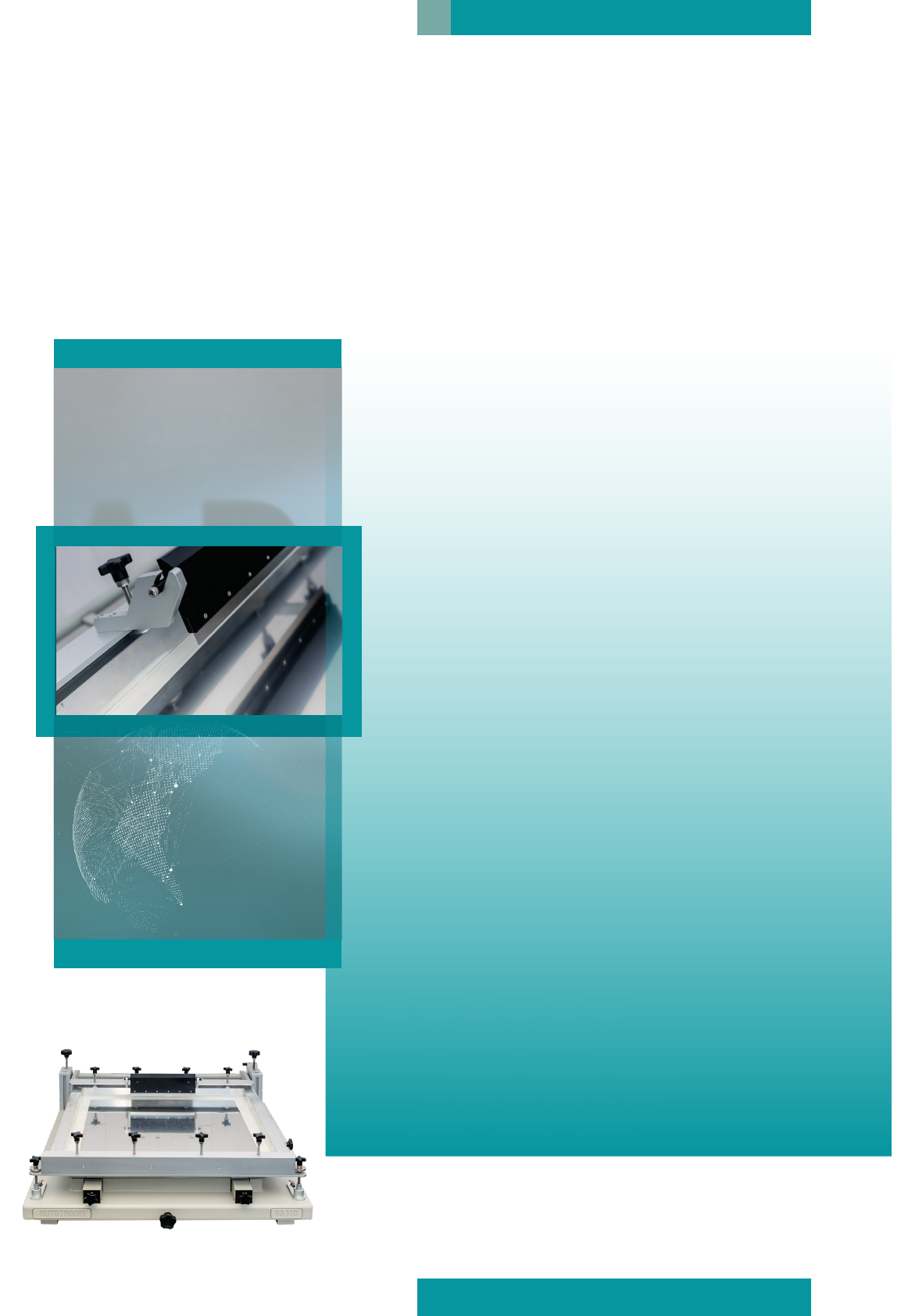

MODEL:
BS110
MANUAL STENCIL & SCREEN
PRINTER
SPEZIFICATIONEN
• Stencil frame size:
- 300 x 300 mm to 740 x 740 mm
• Working table size:
- 610 x 610 mm
- 610 x 1200 mm (optional)
• X-Axis range:
- +/- 13 mm
• Y-Axis range:
- +/- 13 mm
• Z-Axis range:
- 0 - 35 mm
• Theta rotation range:
- +/- 3,5°
• Underside Clearance:
- 25 mm
• Registration Repeatability:
- +/- 0.02 mm
• Overall dimensions:
- 910 x 1040 x 330 mm (B x T x H)
• Machine weight:
- 90 kg
V1.1
