4.2 Installing the SIPLACE software
4.2.1 Requirements
You must have installed the Windows XP Professional operating system with service pack 2
before installing the station computer version 601 (see section
3).
Caution:
When installing the RMOS operating system (see section
4.5.3 for the CPU076 and section
4.7.1 for the CPU086) it is imperative that the Version 601.03 installation floppies are
used. The machine will not boot if this is not done.
The default Windows display settings must be changed and the touchscreen must be calibrated.
You must be logged on as the
Administrator in order to be able to carry out this work.
16 of 88
Installation Manual, Station Software Version 601.03 Edition 03/2006
4.2.1.1 Changing the display settings
→ Select Start Æ Settings Æ Control Panel Æ Display.
→ Click the Settings tab.
→ Make the following settings here:

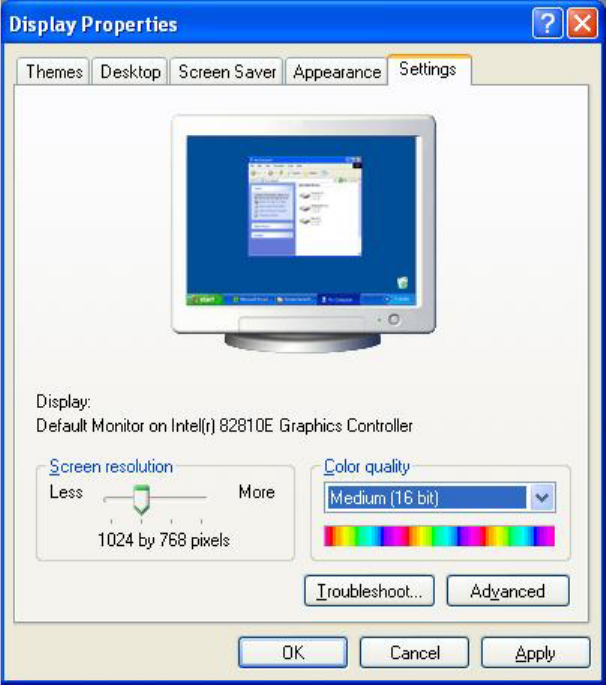

Fig. 4-1: Screen settings
17 of 88
Installation Manual, Station Software Version 601.03 Edition 03/2006
4.2.1.2 Calibrating the touchscreen
Select Start Æ Settings Æ TouchWare, to start the TouchWare Properties applet.
Fig. 4-2: TouchWare Properties
→ Open the Multiple Monitors tab.
