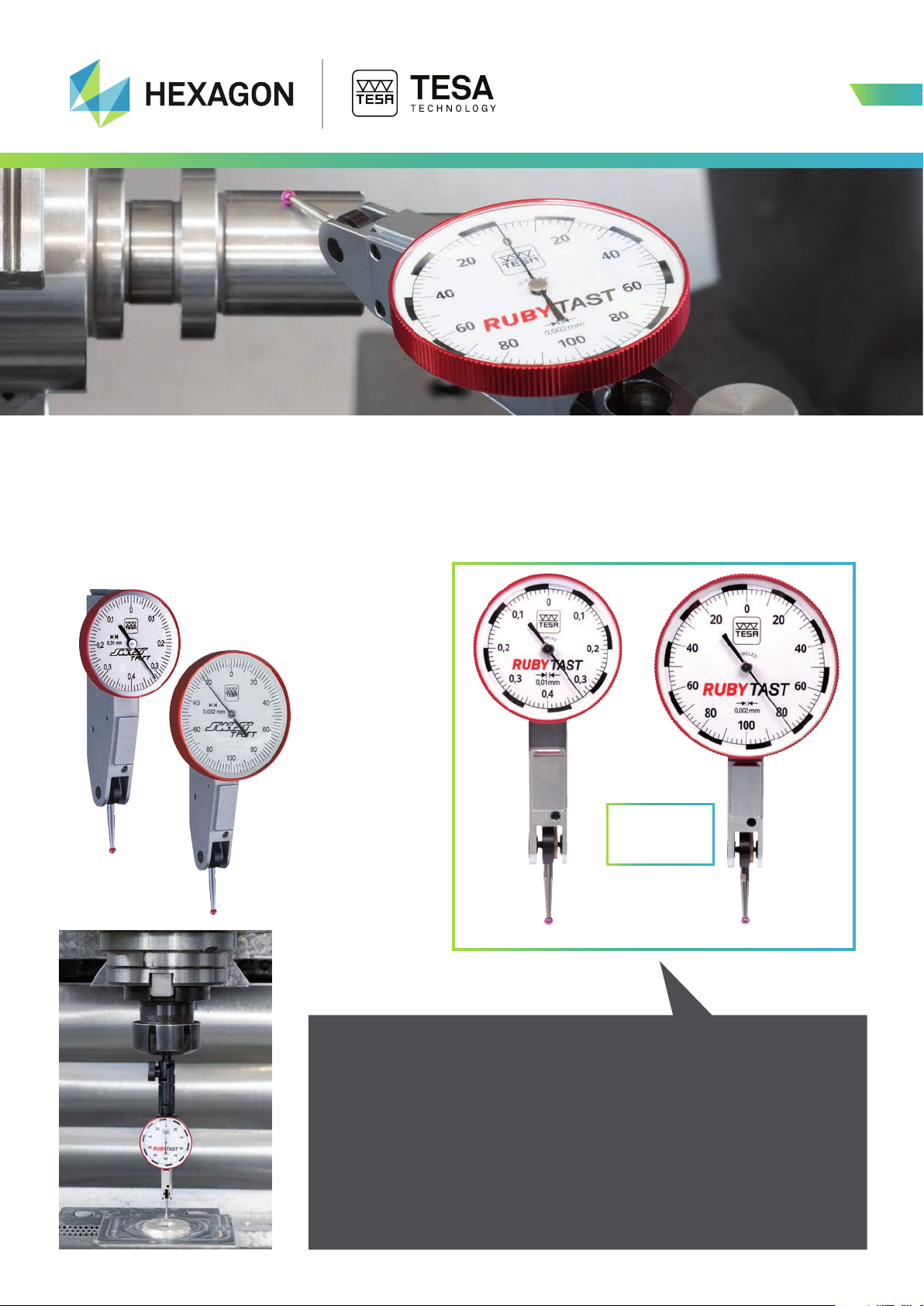

SWISSTAST dial test indicators become RUBYTAST
TM
dial test indicators
The well-known SWISSTAST series upgrades its look to become RUBYTAST
TM
with a better readability.
Dimensions and specifications remain the same, still using an ultra robust shockproof movement and a
resistant ruby ball tip suitable for workshop applications.
What remains?
• Bidirectional measuring with automatic reversal inside the movement
• Continuous clockwise pointer rotation providing error-free reading
• Insensitive to magnetic fields
• Jewelled movement with 7 rubies
• Ball-bearing lever system. Measuring insert swivelling through 240°
• Very low measuring force
• Exceptionally robust with full-metal construction
NEW
Product info
01811000
01811001
01811000 01811001

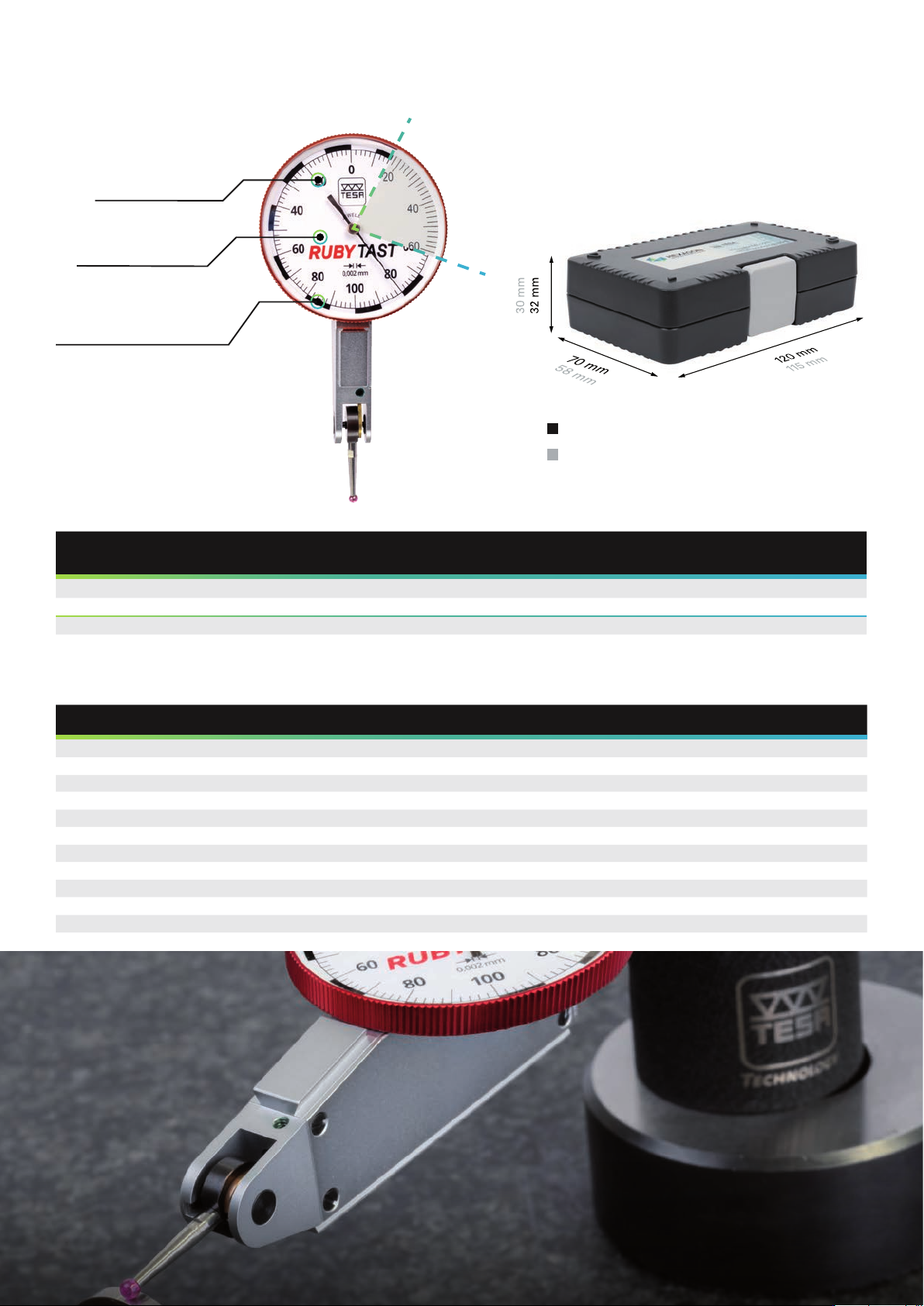

Dial face now pure white
for a better contrast
New circular segment reading
for a faster reading of the value
Design registration: DM/213558
Larger digits for
a better readability
O
l
d
d
e
s
i
g
n
S
W
I
S
S
T
A
S
T
Product description
What’s new?
New packaging
Dimensions of the new packaging
Dimensions of the old packaging
Part
number
Designation Measuring
range
[mm]
Scale
interval
[mm]
Dial
Ø
[mm]
01811000 TESA RUBYTAST
TM
0,8 0,01 28
01811001 TESA RUBYTAST
TM
0,2 0,002 38
01639056 TESA RUBYTAST
TM
Mini-Set: Magnetic support 01639010 + RUBYTAST
TM
01811001
01811000 01811001
Measuring range 0,8 mm 0,2 mm
Scale interval 0,01 mm 0,002 mm
Dial Ø 28 mm 38 mm
Circular scale 0 ÷ 0,4 ÷ 0 0 ÷ 100 ÷ 0
Insert length 12,53 mm 12,53 mm
Measuring force 0,15 N 0,15 N
Span of error, f
e
10 µm 2,7 µm
Error of indication over a range of any 10 scale divisions, f
t
5 µm 2 µm
Total error of indication, f
ges
13 µm 3,5 µm
Hysterisis of error of indication, f
u
(MPE
H
) 3 µm 1,5 µm
Repeatability of error of indication, f
w
(MPE
R
) 3 µm 1 µm
Specifications
