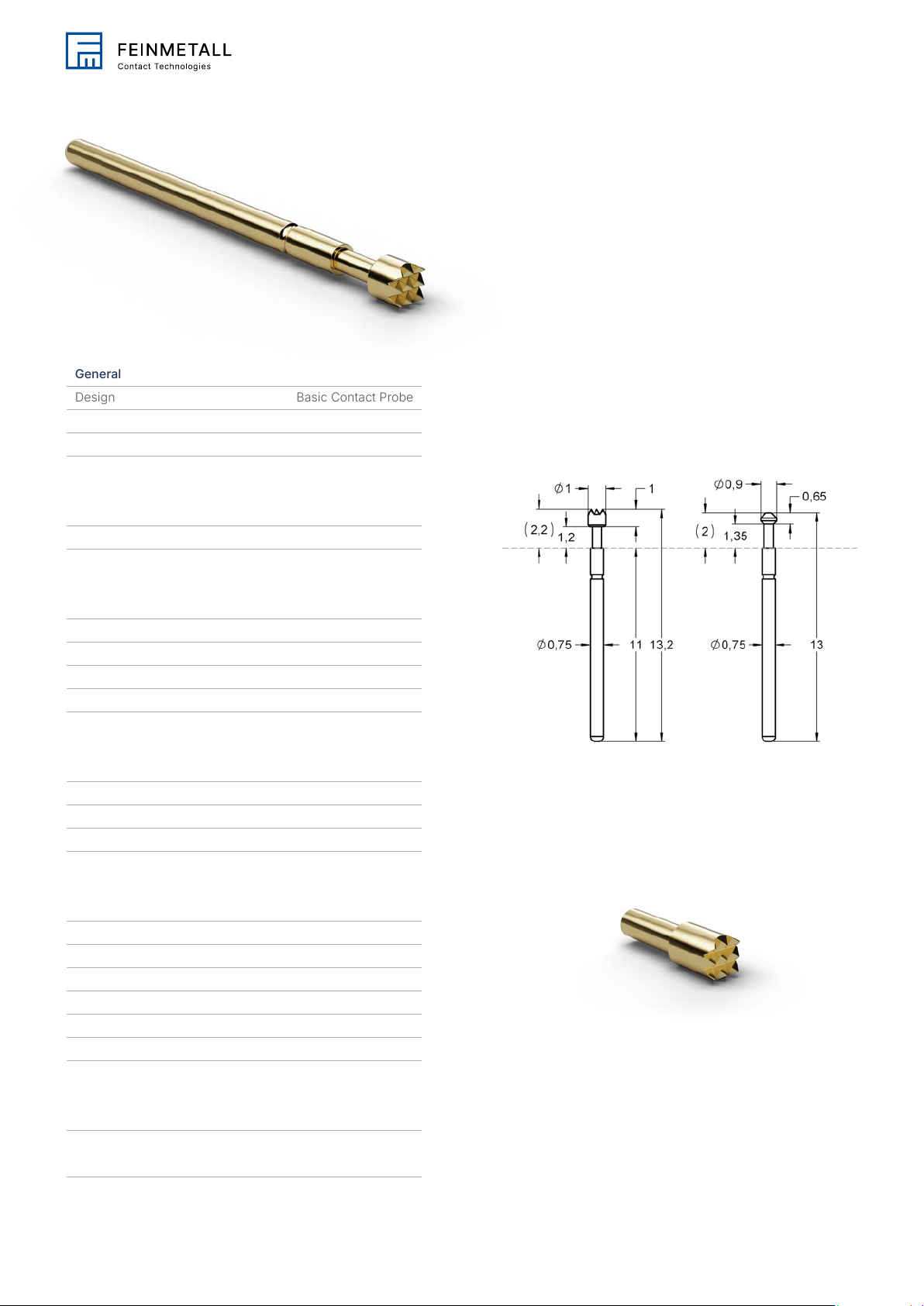

General
Design Basic Contact Probe
Family F077
Pitch [mm/mil] 1.40 / 55
Electrical specifications
Typical contact resistance [mOhm] 25.00
Mechanical specifications
Spring force [cN] 195.00
Nominal travel [mm] 0.90
Maximum travel [mm] 1.20
Pointing accuracy +/- [mm] 0.05
Dimensions
Projection height [mm] 2.20
Tip style diameter [mm] 1.00
Barrel diameter [mm] 0.75
Materials & surfaces
Tip style 06
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Gold
Accessories
Tip style 1
Basic Contact Probes
F07706B100G195
Order code 1097776
Family drawing
