The TS6500 Series cartridge mixer provides complete automatic mixing of two-component fluids, filled in a cartridge kit. The feature rich TS6500 Series accommodates al l standard size cartridge k it s rangi n g from 2.5o…
The TS6500 Series cartridge mixer provides complete
automatic mixing of two-component fluids, filled in a cartridge
kit. The feature rich TS6500 Series accommodates all standard
size cartridge kits ranging from 2.5oz (60ml) to 20oz (550ml)
and is immediately usable worldwide with its accompanying
tools, accessories and universal power supply.
Equipped with an automatic fluid level sensing device and user
friendly electronic control system, the TS6500 Series mixer
allows for a quick and simple setup process and cartridge
change over.
The automatic injection feature provides even distribution of the
hardener into the resin during the mixing cycle to ensure a
uniform mixed result. The high torque motor maintains speed to
allow for the continuous mixing of high viscosity fluids.
Product Data Sheet
TS6500 Series Techkit Mixer
Universal power supply for worldwide use
Automatic fluid level sensing device
Automatically injects hardener into resin
Robust, high-torque motor to handle high
viscosity fluids
Safety features include safety enclosure,
E-stop button and two-hand start
Manual and automatic cycle settings
Quick and easy to replace cartridge holder
and plunger
User friendly firmware for easy setup
Robust and sturdy platform for heavy
industrial use
USA & Canada +1 714 230 2398 Europe +44 2380 489 100 Asia +86 21 64952662 www.techconsystems.com
KEY FEATURES AND BENEFITS
TYPICAL SETUP
WHAT’S IN THE BOX?
LOCAL DISPENSING SOLUTIONS WORLDWIDE
SPECIFICATIONS & PART NUMBERS
For Sales and Support:
Techcon Systems Corporate Headquarters,
12151 Monarch Street, Garden Grove,
California, 92841, USA.
Tel: 1-714-230-2398, Fax: 1-714-230-2393
E-mail: oemorders@okinternational.com
Techcon Systems European Corporate Office,
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100, Fax: +44 2380 489 109
E-mail: europe-orders@okinternational.com
Or visit www.techconsystems.com
Version 2.50
The mixer is shipped with the following items:
Power Lead
Air Hose & Air Filter Assembly
Drip tray
Cartridge holder and plunger assembly
Extension to accommodate 6” rods
TS6500CIM Series
Size (Imperial):
16.5'' W x 16.8'' D x 38.2'' H
Size (Metric):
419.1mmx426.7mmx970.1mm
Weight:
80 lb (36kg)
Motor Speed:
139 RPM
Motor Torque
42 in-lb (4.7 Nm)
Input Voltage:
120/230 VAC
Rated Fuse:
2A at 120/230 VAC
Input Frequency:
50/60 Hz
Air input:
50 – 100psi (3.5 – 6.9 bar)
Display:
LCD 20 x 4 display segments
Dimensions are
in inches [mm]

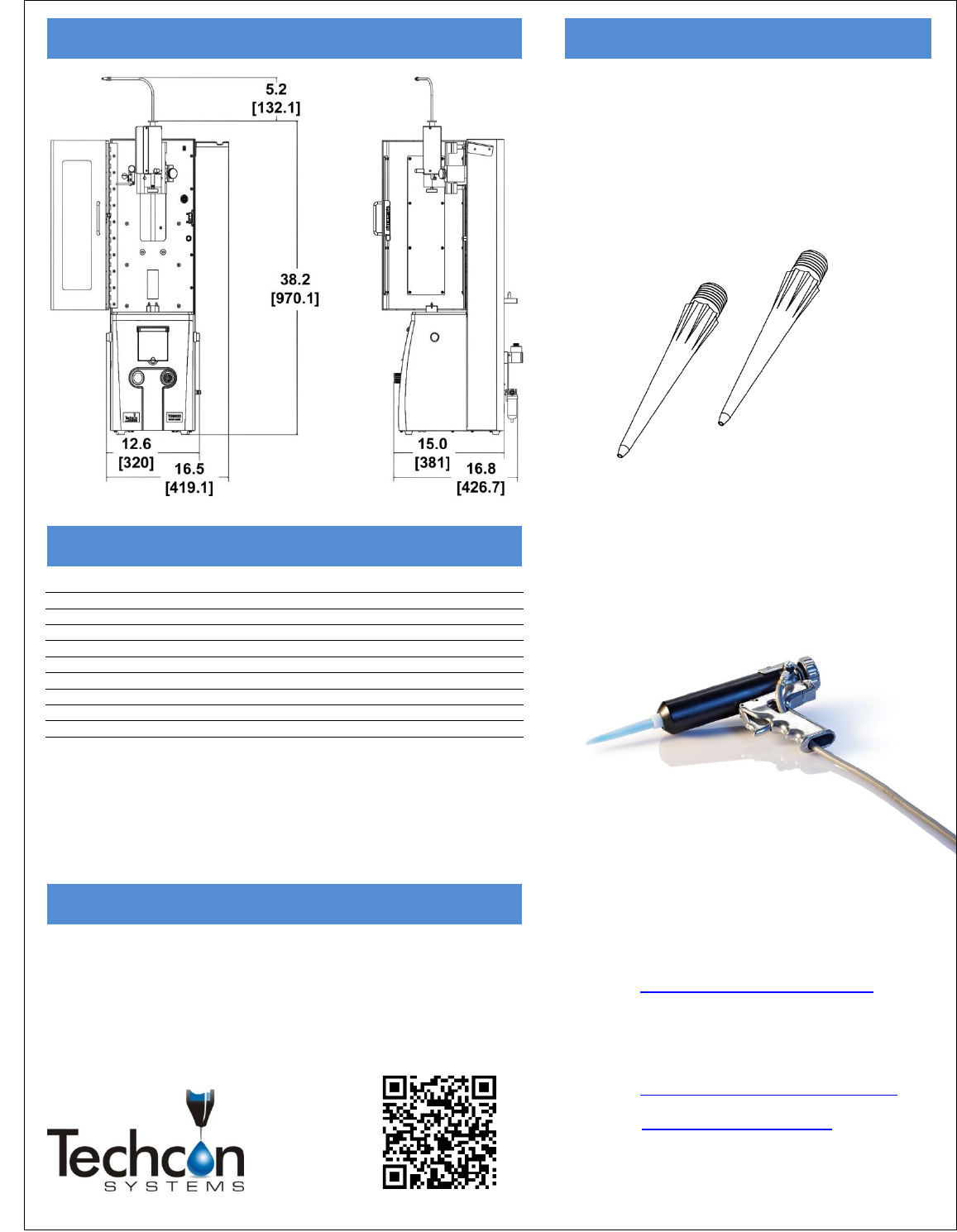

DIMENSIONS
HO Series High Output Nozzles
Optimum internal fluid path design
Lower air pressure requirement
Easier manual tip cutting process
Less bending force required to offset angle
TS950 Series Pneumatic Gun
Robust industrial design
Comfortable to operate
Twist-Lock design – no complicated fittings
Can accommodate 2.5oz (60ml), 6oz
(160ml) and 8oz (220ml) cartridge kits.
Part Numbers:
TS6500CIM-6 Techkit Mixer for 2.5oz (60ml), 6oz (160ml) & 8oz (220ml) kits
TS6500CIM-20 Techkit Mixer for 20oz (550ml) kits
CK6500-6 2.5oz (60ml), 6oz (160ml) & 8oz (220ml) Conversion Kit
CK6500-10 1/10
th
Gallon (310ml) Conversion Kit
CK6500-20 20oz (550ml) Conversion Kit
OPTIONAL ACCESSORIES
ACCESSORIES
