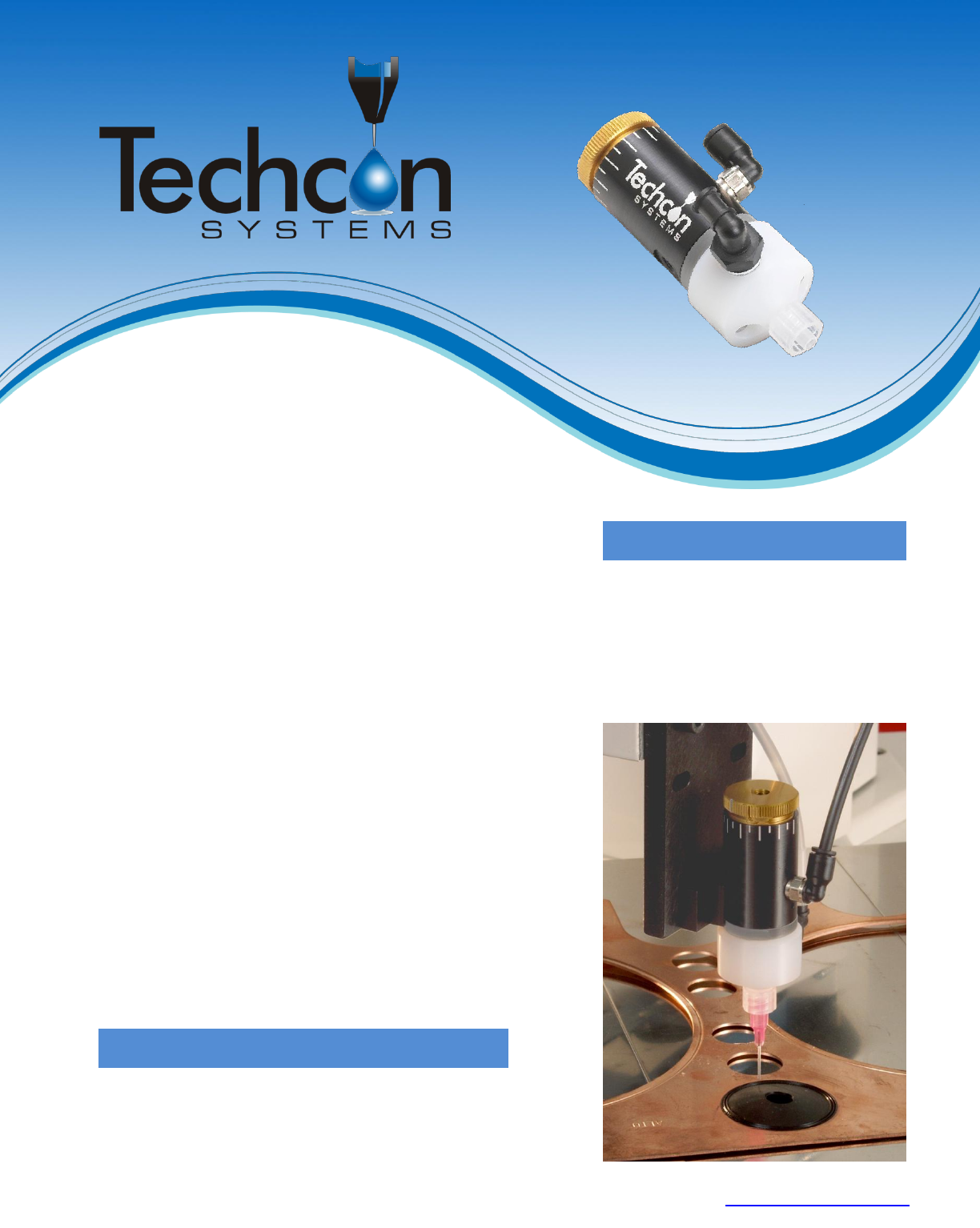

KEY FEATURES AND BENEFITS The TS5620 Series Vertical Diaphragm Valves are designed to dispense l ow to medium viscosity fluids with precision accuracy over a wide range of shot and bead sizes, down to a fraction o f a mi…
KEY FEATURES AND BENEFITS
The TS5620 Series Vertical Diaphragm Valves are designed to
dispense low to medium viscosity fluids with precision accuracy
over a wide range of shot and bead sizes, down to a fraction of
a micro liter. An internal spring return makes the valves fully
adaptable for use with Techcon Systems controllers. A short
opening stroke provides extremely fast, positive shut-off. An
external stroke control adjustment makes it easy for the
operator to fine tune shot sizes. The compact design allows for
mounting flexibility and easy integration into automated
applications.
The seal-less valve design features excellent moisture sensitive
resistance and the incorporated diaphragm creates a barrier
between the wetted parts and the air cylinder.
With a choice of UHMWPE (Ultra High Molecular Weight
Polyethylene), Delrin® or Teflon® fluid bodies, the TS5620
Series Valve can handle a wide range of industrial fluids.
Product Data Sheet
TS5620 Series
Vertical Diaphragm Valves
Long cycle life
Compact size and weight
Excellent moisture sensitive resistance
Choice of body for chemical compatibility
TYPICAL APPLICATIONS
Dispensing Anaerobic thread locker onto screw threads
Dispensing Cyanoacrylate in bonding applications
Applying a of UV lacquer in CD/DVD spin coating
applications (using Delrin® fluid housing)
USA & Canada +1 714 230 2398 Europe +44 2380 489 100 Asia +86 21 64952662 www.techconsystems.com
The valve is shipped with the following items:
Mounting bracket kit
Valve air hose
Luer lock fluid line
Fluid inlet fittings - 1/4'' compression and Luer lock type
Dispensing tip selection pack

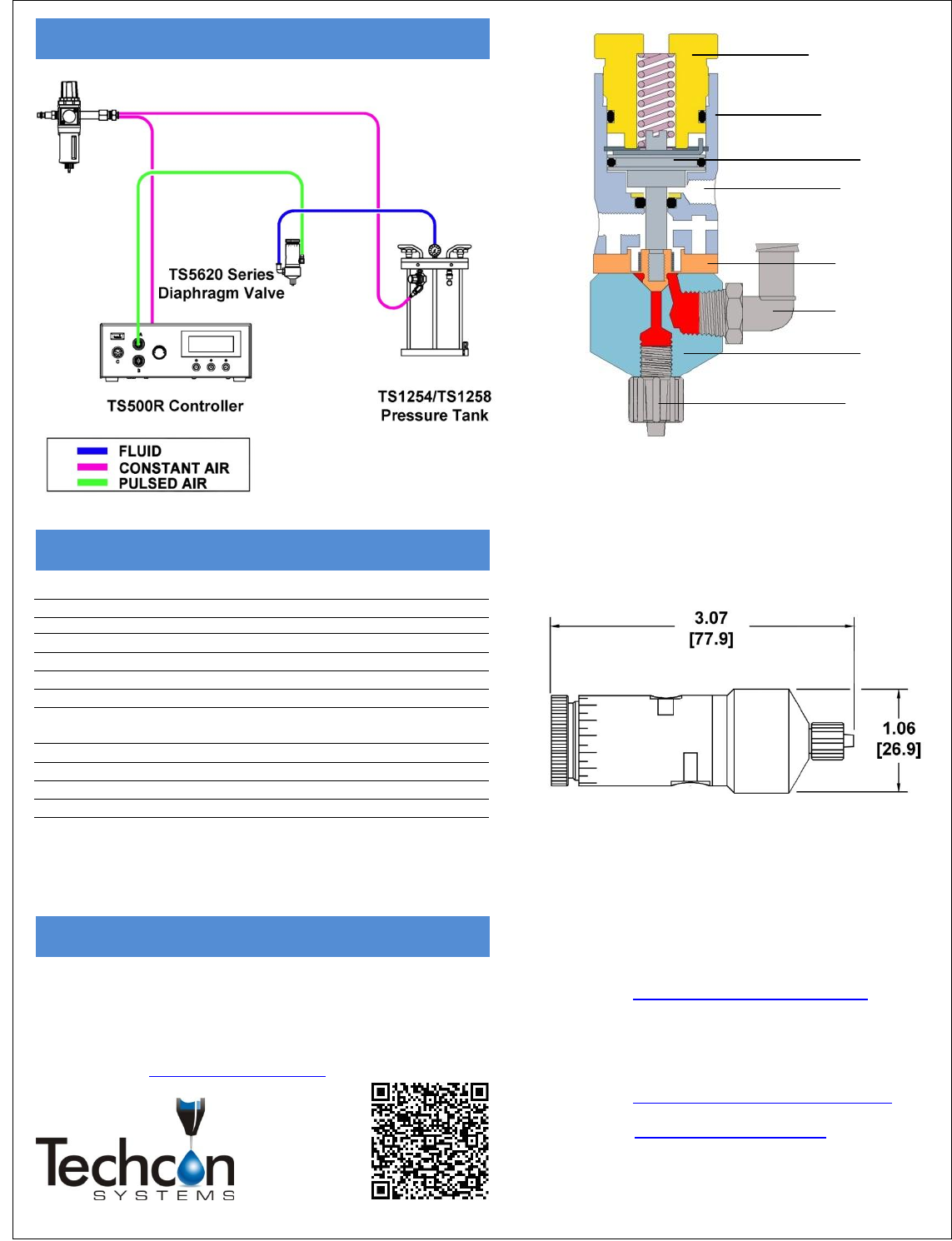

TYPICAL SETUP
WHAT’S IN THE BOX?
LOCAL DISPENSING SOLUTIONS WORLDWIDE
Dimensions are in inches [mm]
Fluid reservoirs: The valve can be fed from the TS1254 or
TS1258 Pressure Tank, or from any size syringe barrel or
cartridge.
Dispensing Tips: For the complete dispensing tip offering
please visit www.techconsystems.com
SPECIFICATIONS & PART NUMBERS
ACCESSORIES
TYPICAL SETUP
For Sales and Support:
Techcon Systems Corporate Headquarters,
12151 Monarch Street, Garden Grove,
California, 92841, USA.
Tel: 1-714-230-2398, Fax: 1-714-230-2393
E-mail: oemorders@okinternational.com
Techcon Systems European Corporate Office,
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100, Fax: +44 2380 489 109
E-mail: europe-orders@okinternational.com
Or visit www.techconsystems.com
Teflon® is a registered trademark of E.I. DuPont. Version 2.00
Part Number:
TS5620 Series
Size (Imperial):
See drawing
Size (Metric):
See drawing
Weight:
See below
Fluid Inlet Port:
⅛'' NPT female
Fluid Outlet Port
Luer lock male
Aux Air Inlet Port:
10-32 UNF female
Activation Pressure
Range:
70 psi - 90 psi
(4.8bar - 6.2bar)
Max Fluid Pressure:
70 psi (4.8bar)
Operating Frequency:
400+ cycles/min.
Mounting Port:
10-32 UNF female
Viscosity Range:
1 - 50 000cps
Wetted Parts TS5622VU 0.14 lb (64g) UHMWPE
And Weight TS5622VT 0.18 lb (80g) Teflon®
TS5622VD 0.16 lb (71g) UHMWPE, Delrin®
(UHMWPE = Ultra High Molecular Weight Polyethylene)
Actuating
Air Input
Air Cylinder
Flow Control
Adjustment
Body
Fluid Inlet
Diaphragm
Piston
Luer Lock
