SAFETY FEATURES
GENERAL
Chapter Issue 13, Jul 16 Technical Reference Manual 2.9
GENERAL
DEK printing machines incorporate safety features that provide a safe operating
environment for the operator and the machine.
All safety circuits have been designed to meet the safety requirements as
outlined in the machines’ CE Declaration of Conformity. The circuits check for
welded contacts before resetting. Additional safety is achieved by duplication
of the power contactors to provide redundancy.
There are five machine cover designs:
• Style 1
• Style 2
• Style 3
• Style 4
• Style 5

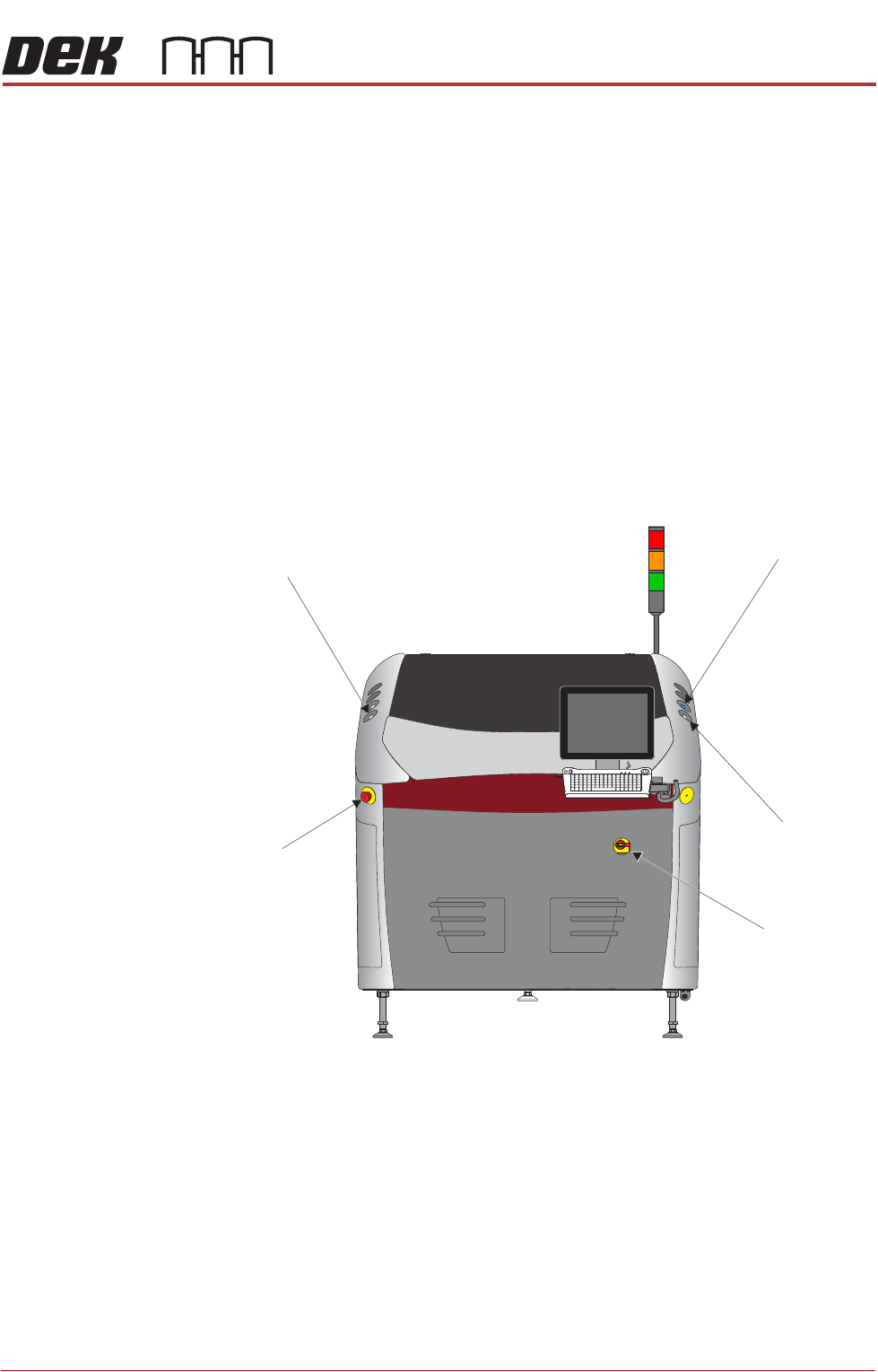

Figure 2-1 Style 1
Left Jog Button
System Button
Right Jog Button
View on Front of Machine
Mains Isolator
E Stop
SAFETY FEATURES
GENERAL
2.10 Technical Reference Manual Chapter Issue 13, Jul 16
Figure 2-2 Style 2
Figure 2-3 Style 3
View on Front of Machine
Right Jog Button
System Button
Mains Isolator
Left Jog Button
E Stop
SAFETY FEATURES
GENERAL
Chapter Issue 13, Jul 16 Technical Reference Manual 2.11
Figure 2-4 Style 4
View on Front of Machine
Left Jog Button
E Stop
System Button
Mains
Isolator
