Tray Handling Systems
ASYS TECTON – Tray Handling and Transfer Systems
PARIO5000_240516_DS_CC_E
PARIO 5000
Options
_Enhancement packages
_Pharma/Medical
_Cleanroom
_ESD
_Project-related tray infeed
_Customised workpiece handling
_Alternative control concept
_Industry specific standardization and qualification
documents
_Automatic change of formats and grippers possible
_Camera systems for checking loading and unloading or
for parts counting
_Further adaption upon request
Description

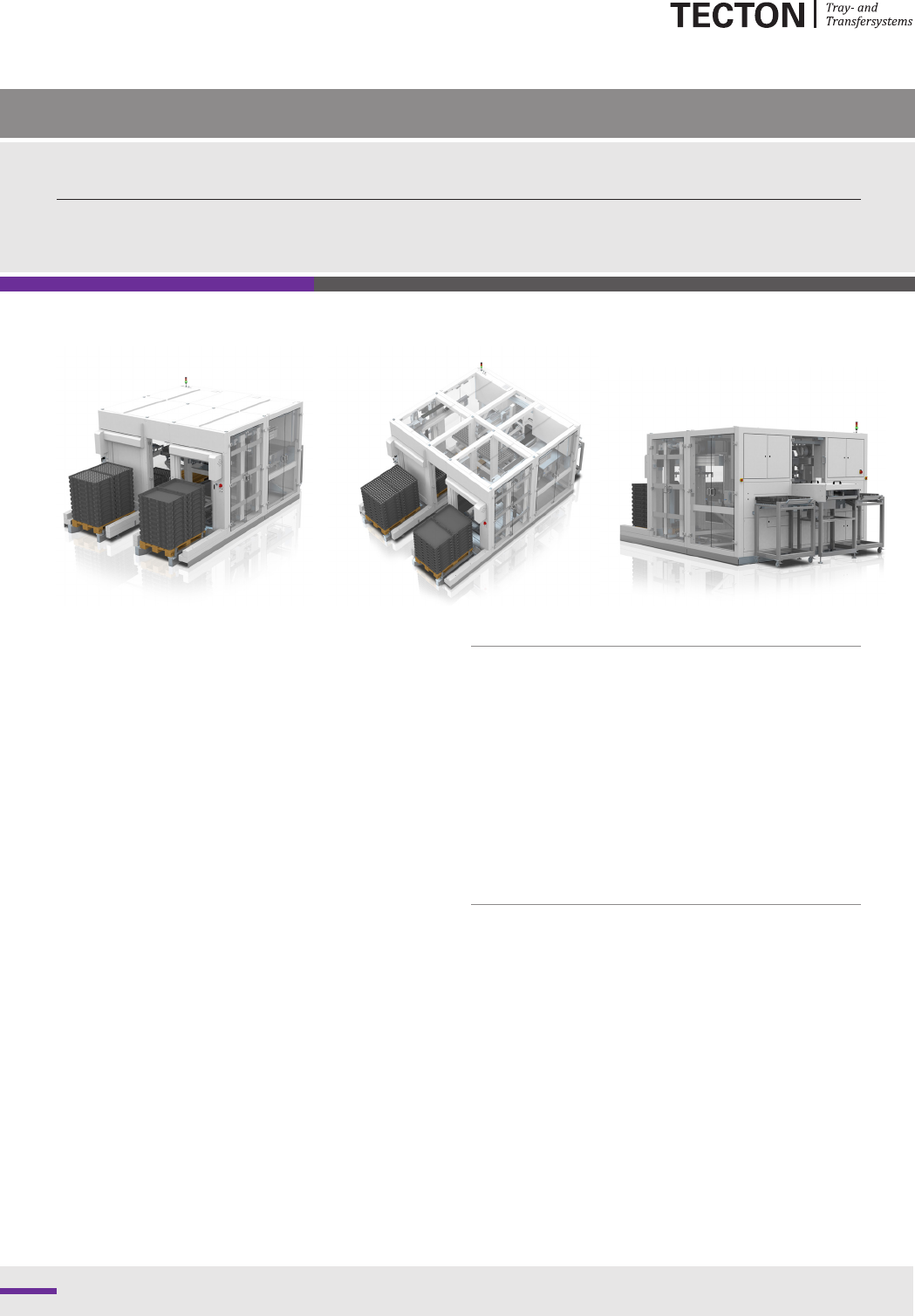

The PARIO 5000 palletizing system is designed for handling
pallets. The trays stacked on pallets are delivered by pallet
truck or forklift truck and placed on a roller conveyor in front of
the machine.
The PARIO 5000 pulls the pallet into the machine and fixes
the pallet in place. Using a gripper, the machine separates the
trays, turns them if necessary, and places them on a cross
conveyor belt. Depending on the machine version, the trays
are loaded or unloaded at the handling station. The parts can
be fed in and out in dierent ways, e.g. via workpiece carriers,
conveyors or PUK systems. After the handling process, the tray
is transported to the pallet loading station and stacked back
onto a pallet. The pallet loaded with trays is then moved out of
the PARIO 5000 for further transportation.
Parallel to tray and parts handling, the pallets are also automa-
tically transported to the pallet loading station after the trays
have been destacked in the machine. There the pallets are
loaded with trays again.
Features
_Pallet sizes EURO and ISO
_Tray formats up to 600 x 800 mm
_Trays/KLT of dierent designs and materials
_Pick- & place time of less than 4 s with single gripper
_Change of trays in the intake of less than 4 s
_Usable as loader and unloader
_Optimized service access by using large doors
_Frontal logistics access
_HMI designed to be easily operated
_Perfect integration into logistics concepts by changing
pallets and trays without interruption – fully automated
_Low in maintenance
www.asys-group.com
ASYS Group
ASYS TECTON GmbH
Waldstraße 16,
78087 Mönchweiler, Germany
Tel (+49) 7721 99245 0
Fax (+49) 7721 99245 10
info.tecton@asys-group.com
Subject to change without notice. Some general
descriptions and performance characteristics
may not be applicable to all products. Technical
specifications are subject to change without notice.
Only features and technical data provided in
purchasing contract are legally binding.
Printed in Germany.
The pictures may contain optional extras, custom
fittings or accessories which are not included in
the standard scope of delivery. These are availa-
ble at extra cost.
PARIO 5000
PARIO 5000 Type 1 PARIO 5000 Type 2
Machine Configuration
Conveying height
Transfer position at machine edge
Operating side
max. workpiece weight
850 mm - 1150 mm
340 mm
customer-specific
up to 15 kg
850 mm - 1150 mm
340 mm
customer-specific
up to 30 kg
Tray format
Traysizes
max. tray weight
max. tray stack weight
Tray stacking height
EURO-pallet DIN EN 13698-1
up to 600 x 800 mm
5 kg
100 kg
up to 1260 mm
800 x 1200 mm
up to 600 x 800 mm
30 kg
300 kg
up to 1260 mm
800 x 1200 mm
Installation Requirements
Power supply
Power supply system
Power consumption
Air supply
Air consumption
400 V / 50 Hz
3L + N + PE
3,5 kW
min. 6 bar / 87 psi
20 Nl/min
400 V / 50 Hz
3L + N + PE
3,5 kW
min. 6 bar / 87 psi
20 Nl/min
Machine Description
Length x Width x Height
Weight
Noise Level
Repeatability
Tray changing time
Cycle time workpiece handling
min. 2720 x 2900 x 2202 mm
approx. 3500 kg
< 72 dB(A)
± 0.1 mm
< 4 s
> 3.0 s
min. 2720 x 2900 x 2202 mm
approx. 3500 kg
< 72 dB(A)
± 0.1 mm
< 4 s
> 3.0 s
2202
2501
2720
1360
Loading/unloading
modul
Loading/unloading
modul
Transfer module
2900
2720
1510
2900
1390

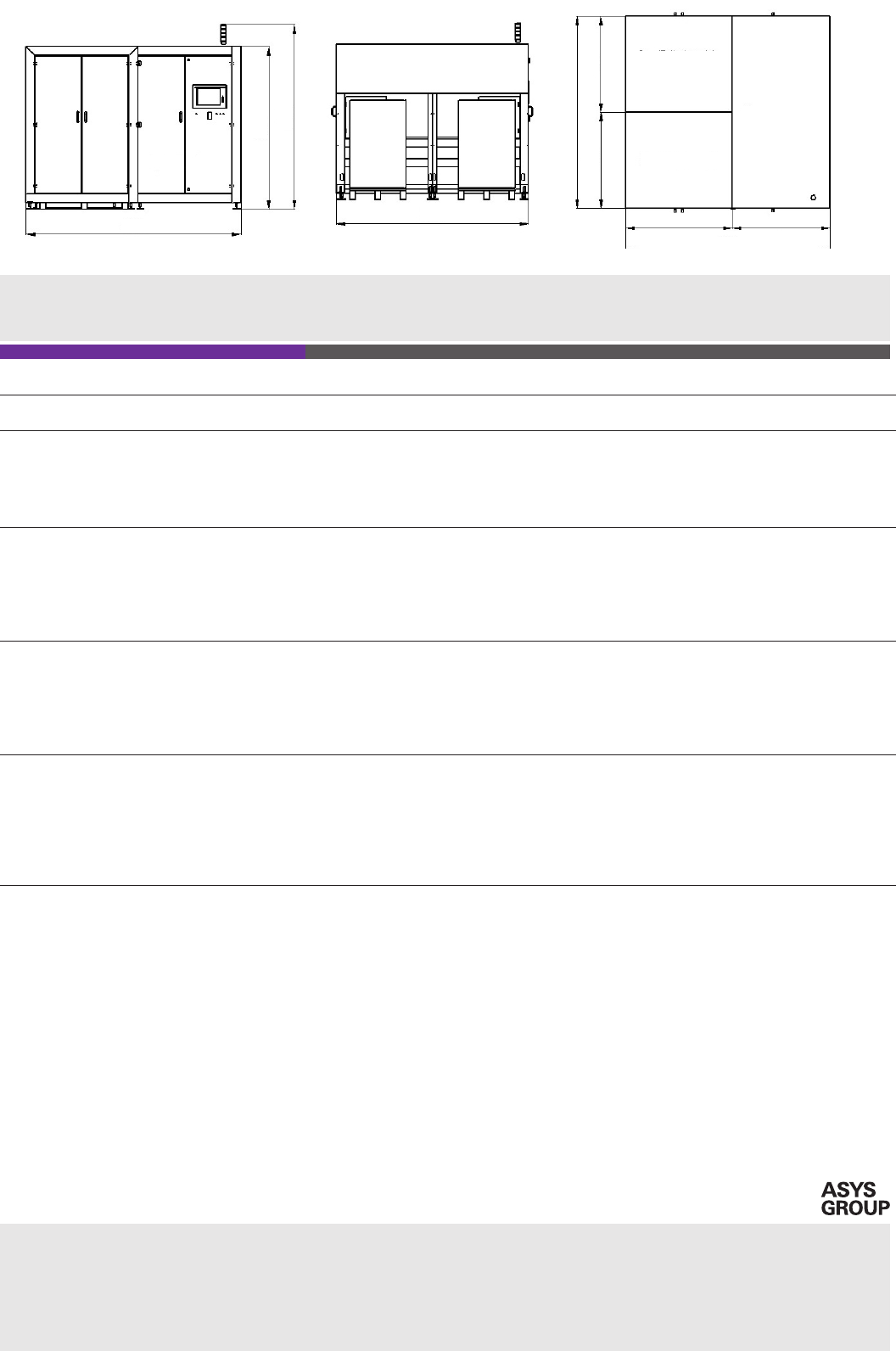

Dimensions shown as an example
